6L50/6L80/6L90 - Automatic Transmission

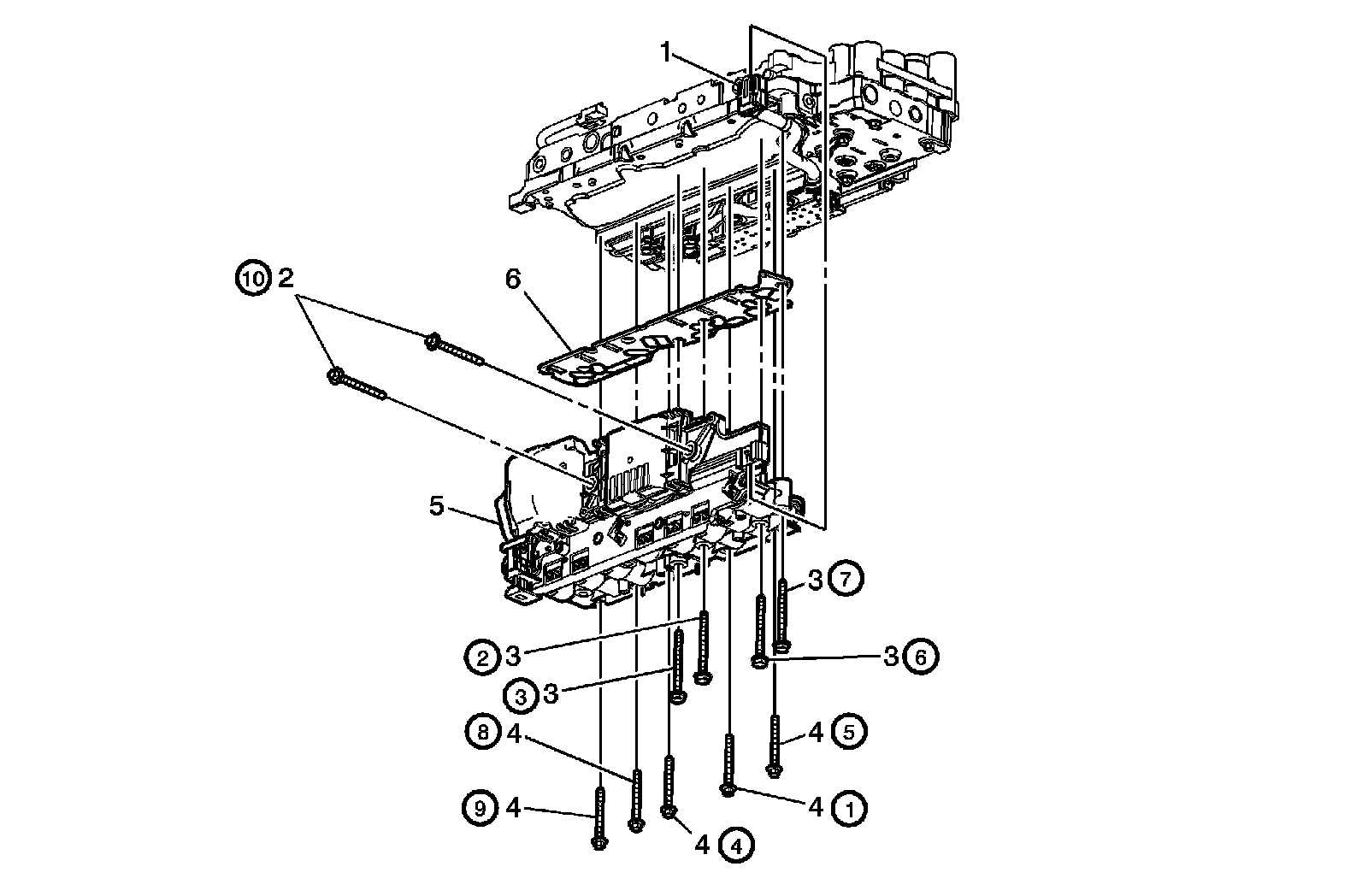

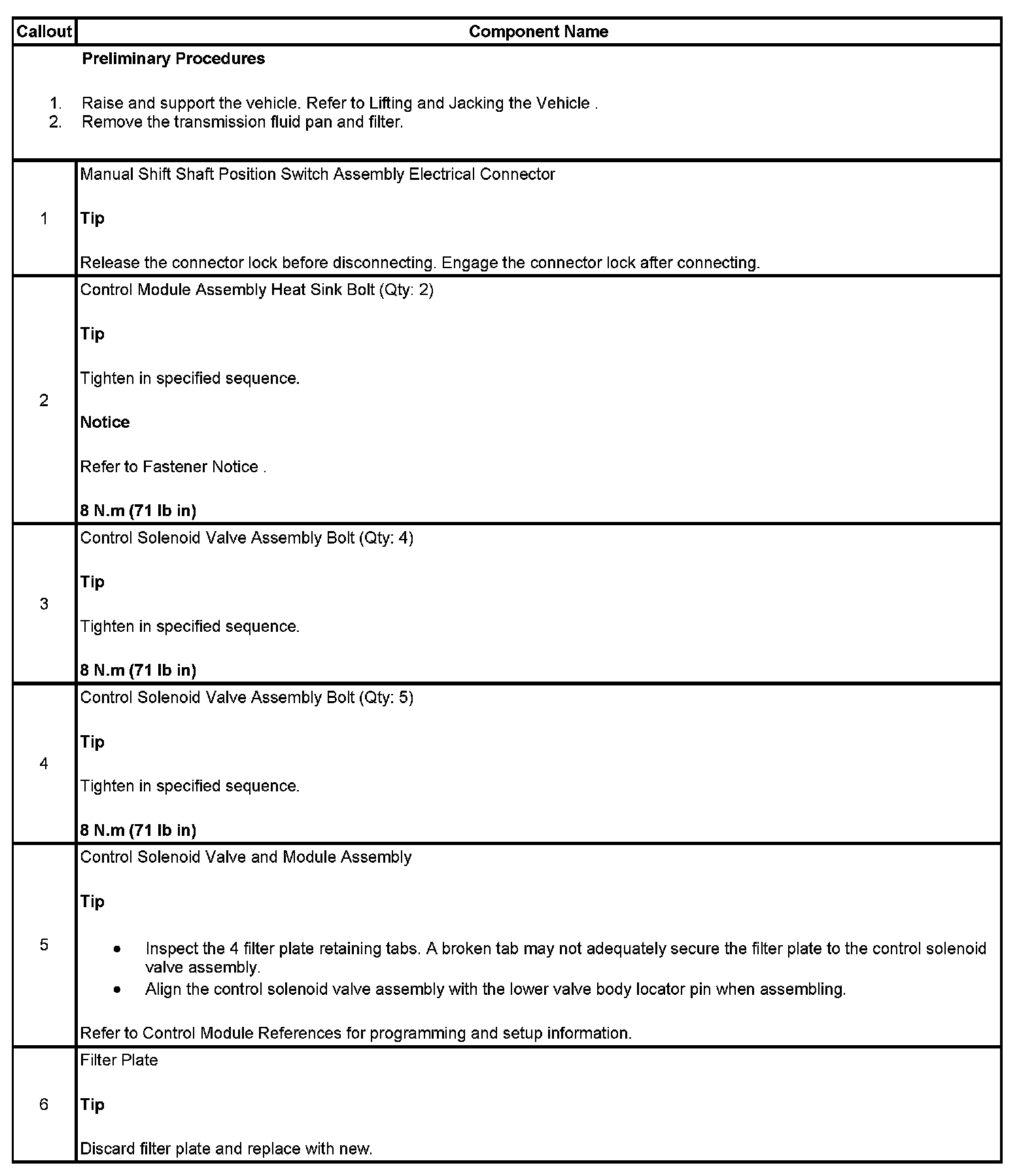

Control Solenoid Valve and Transmission Control Module Assembly Replacement
