Instrument Panel Electrical Center or Junction Block Replacement - Left Side

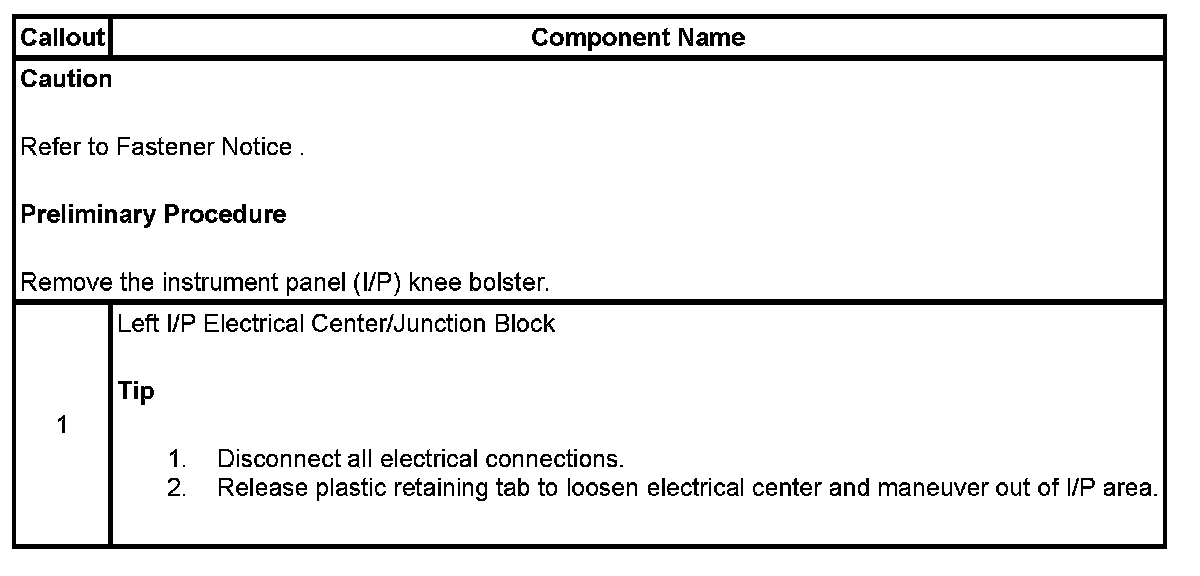

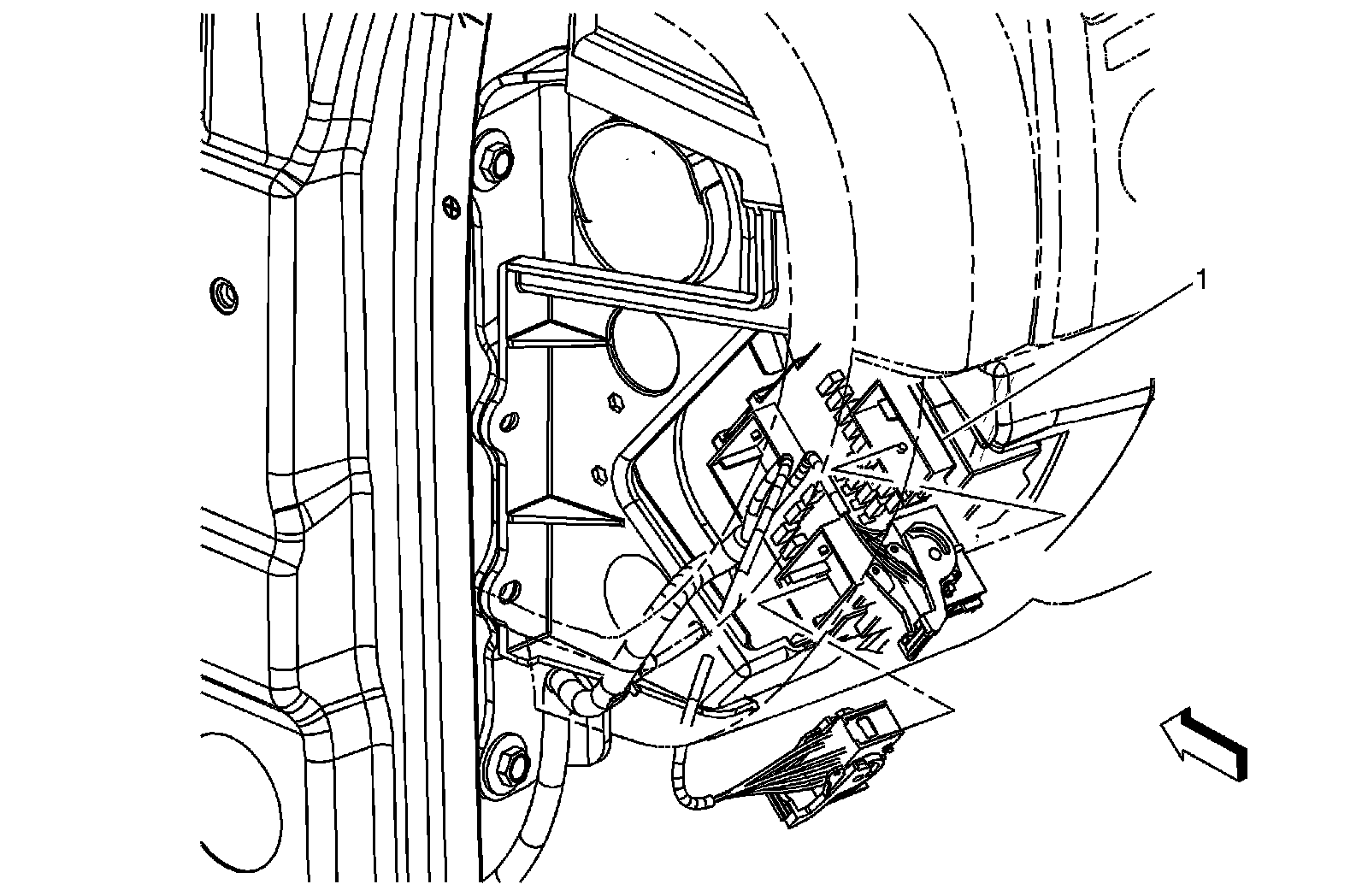

INSTRUMENT PANEL ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT - LEFT SIDE
