Television / Monitor

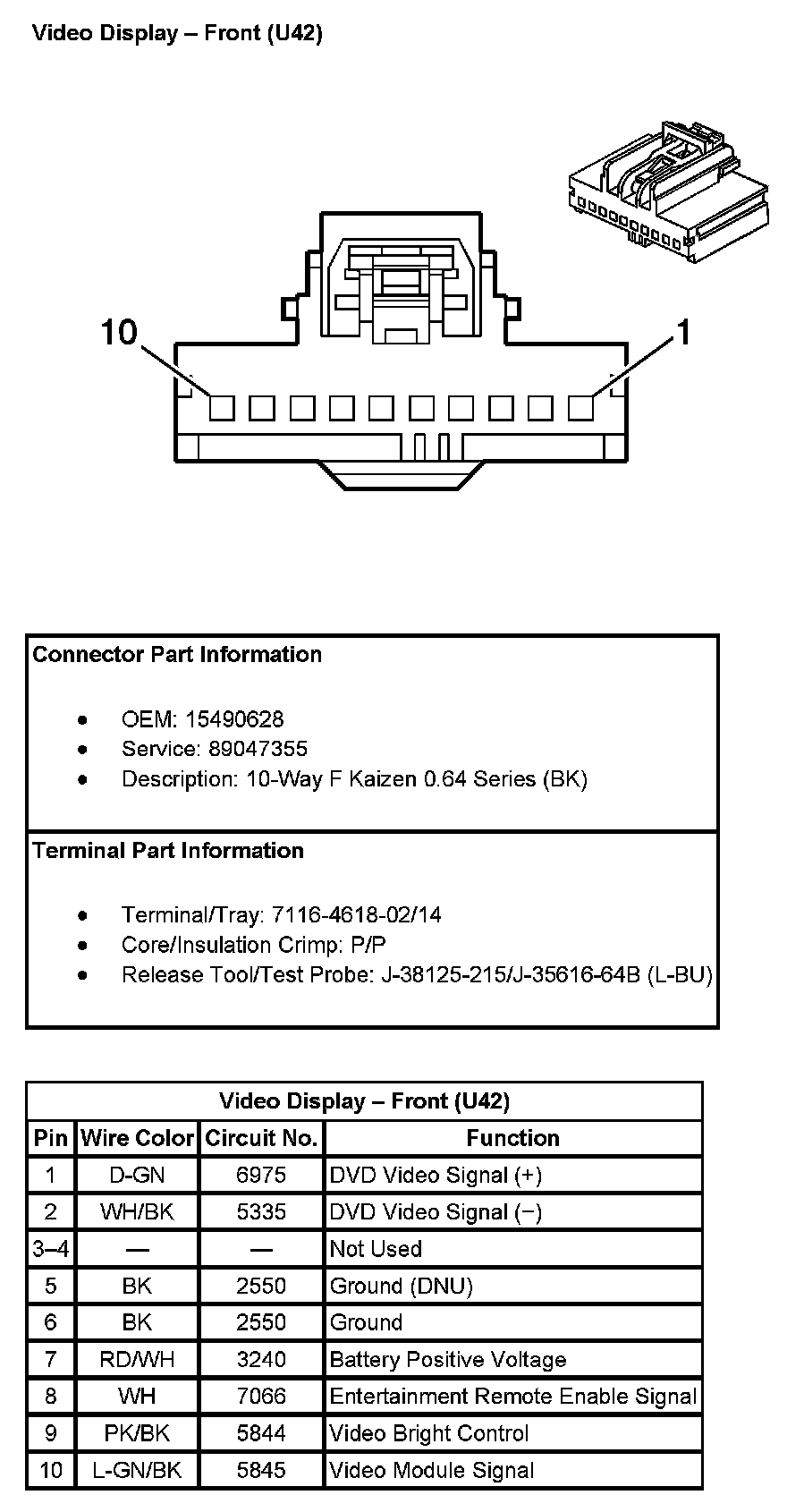

Video Display - Front (With RPO Code U42):

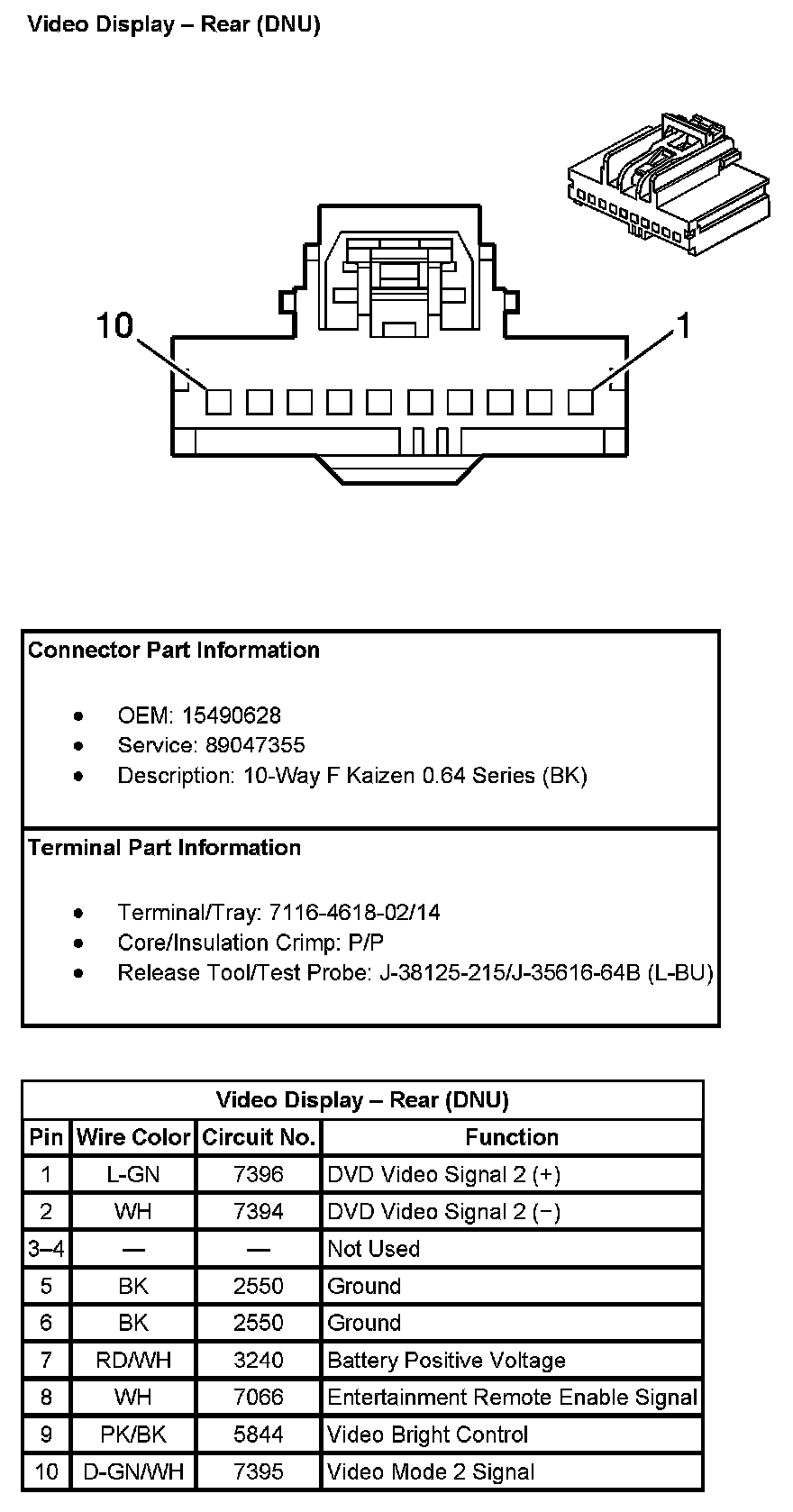

Video Display - Rear (With RPO Code DNU):
