Suspension Control Module



Electronic Suspension Control Connector End Views

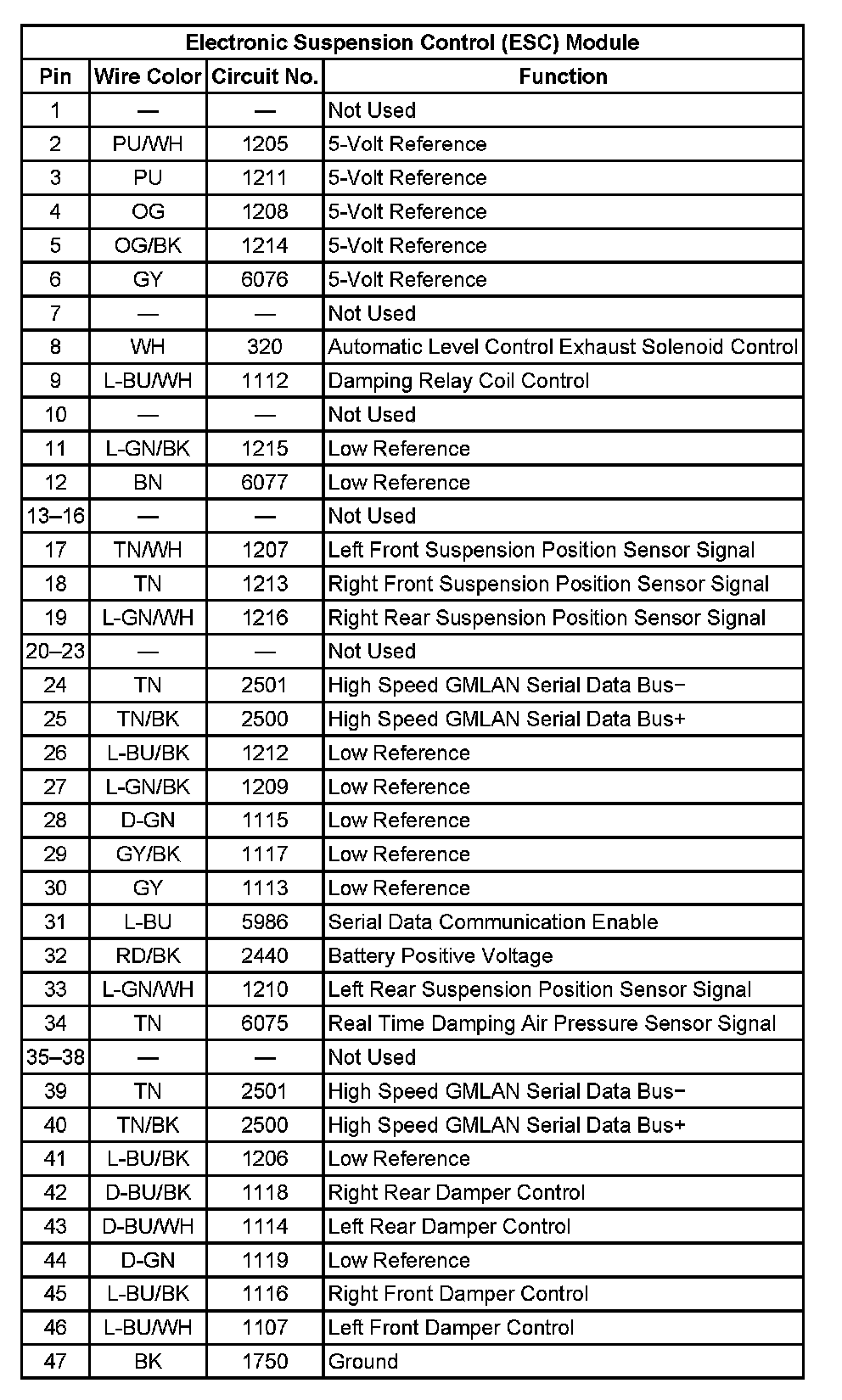

Electronic Suspension Control (ESC) Module:







Electronic Suspension Control (ESC) Module:
