Parking Assist Distance Sensor

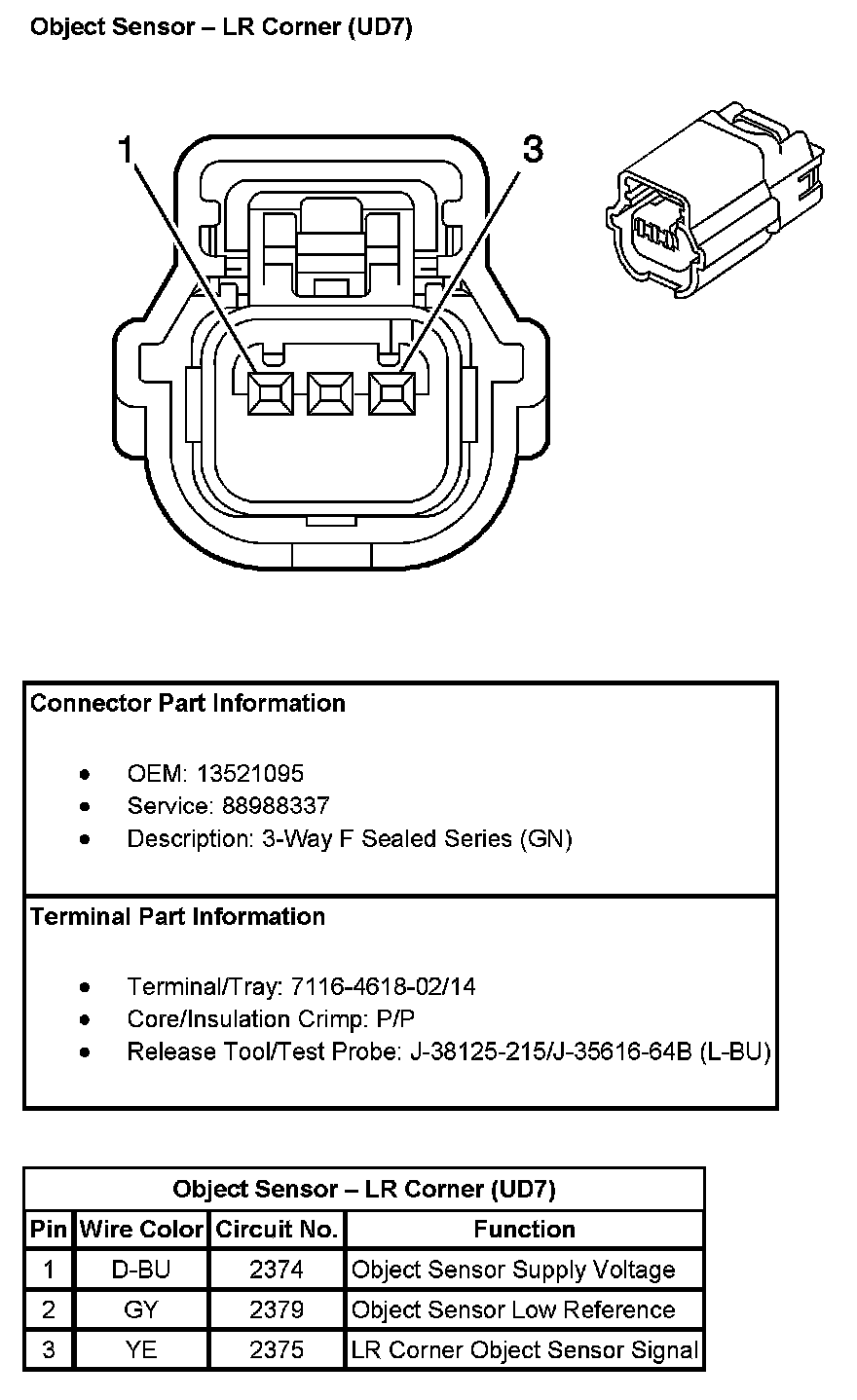

Object Sensor - LR Corner (With RPO Code UD7):

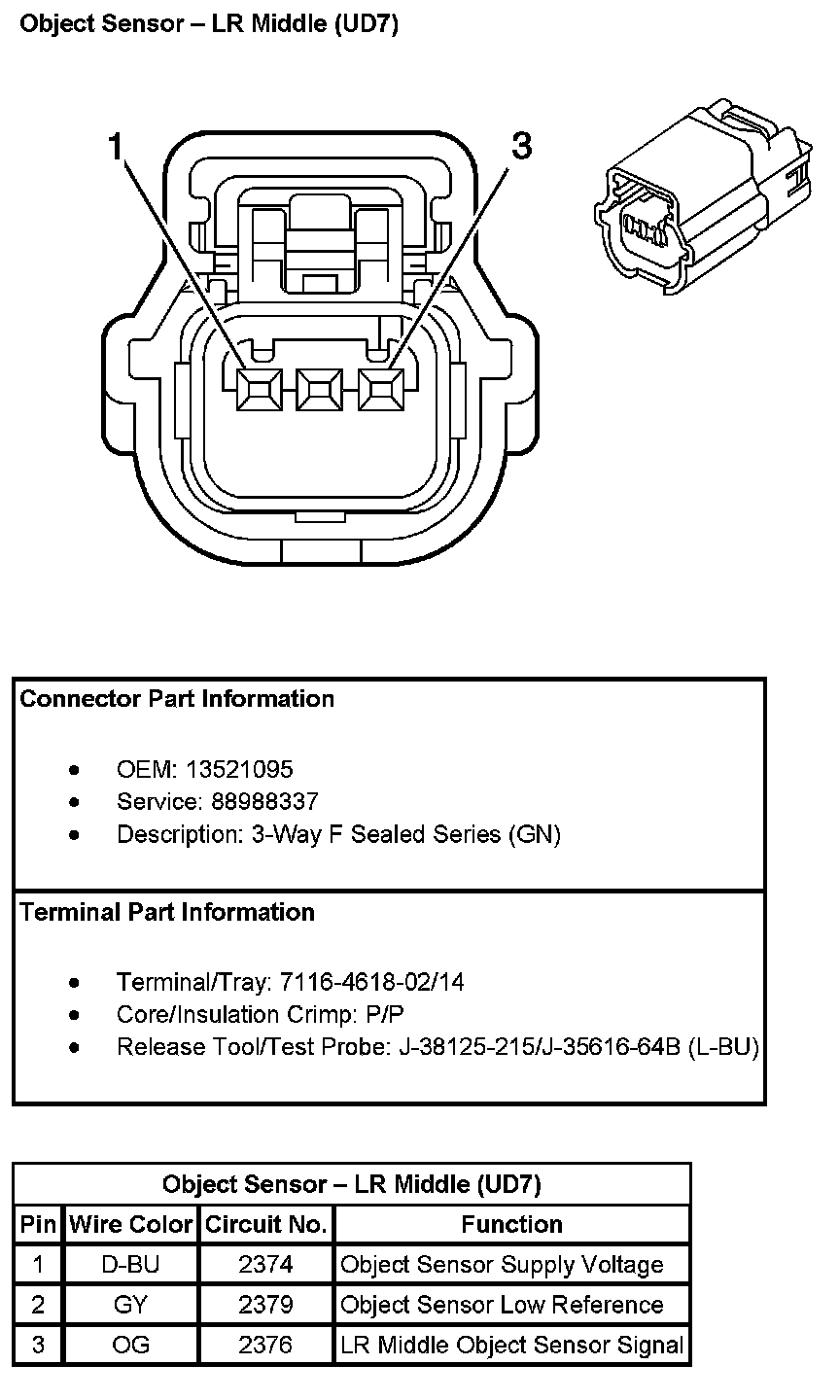

Object Sensor - LR Middle(With RPO Code UD7):

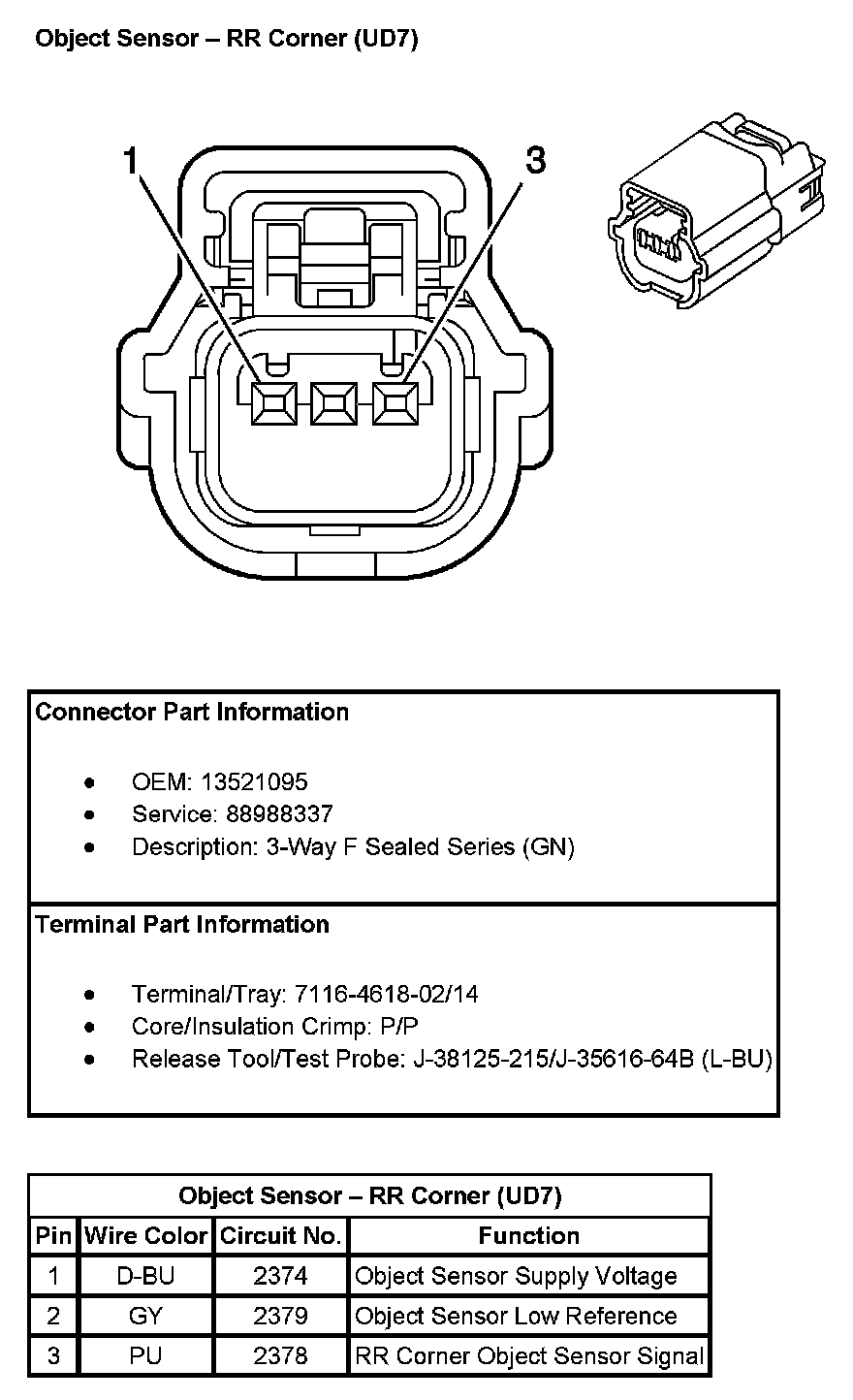

Object Sensor - RR Corner (With RPO Code UD7):

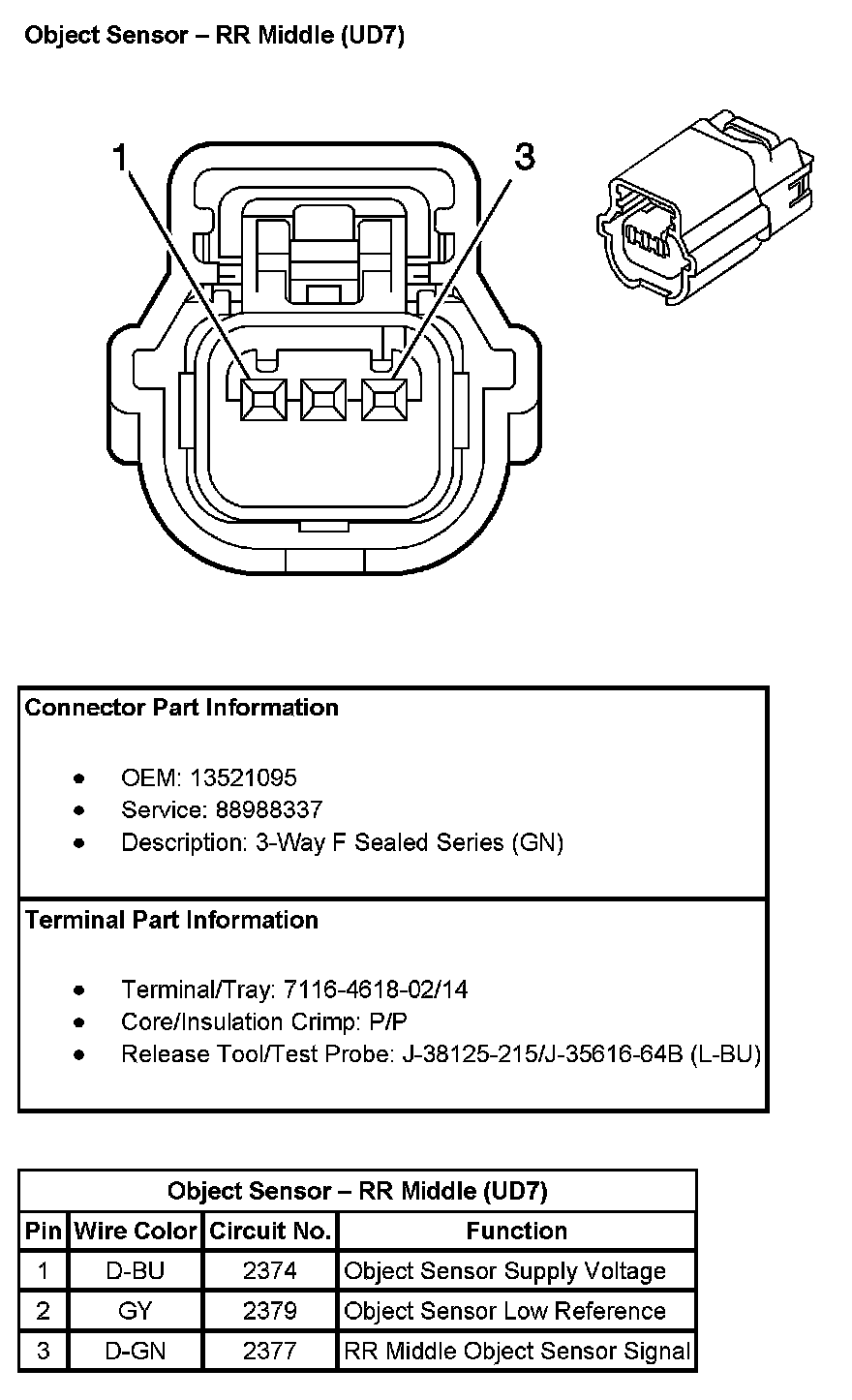

Object Sensor - RR Middle (With RPO Code UD7):
