Inflatable Restraint Side Impact Sensor (SIS)

Inflatable Restraint Side Impact Sensor (SIS) - LF (With RPO Code ASF):

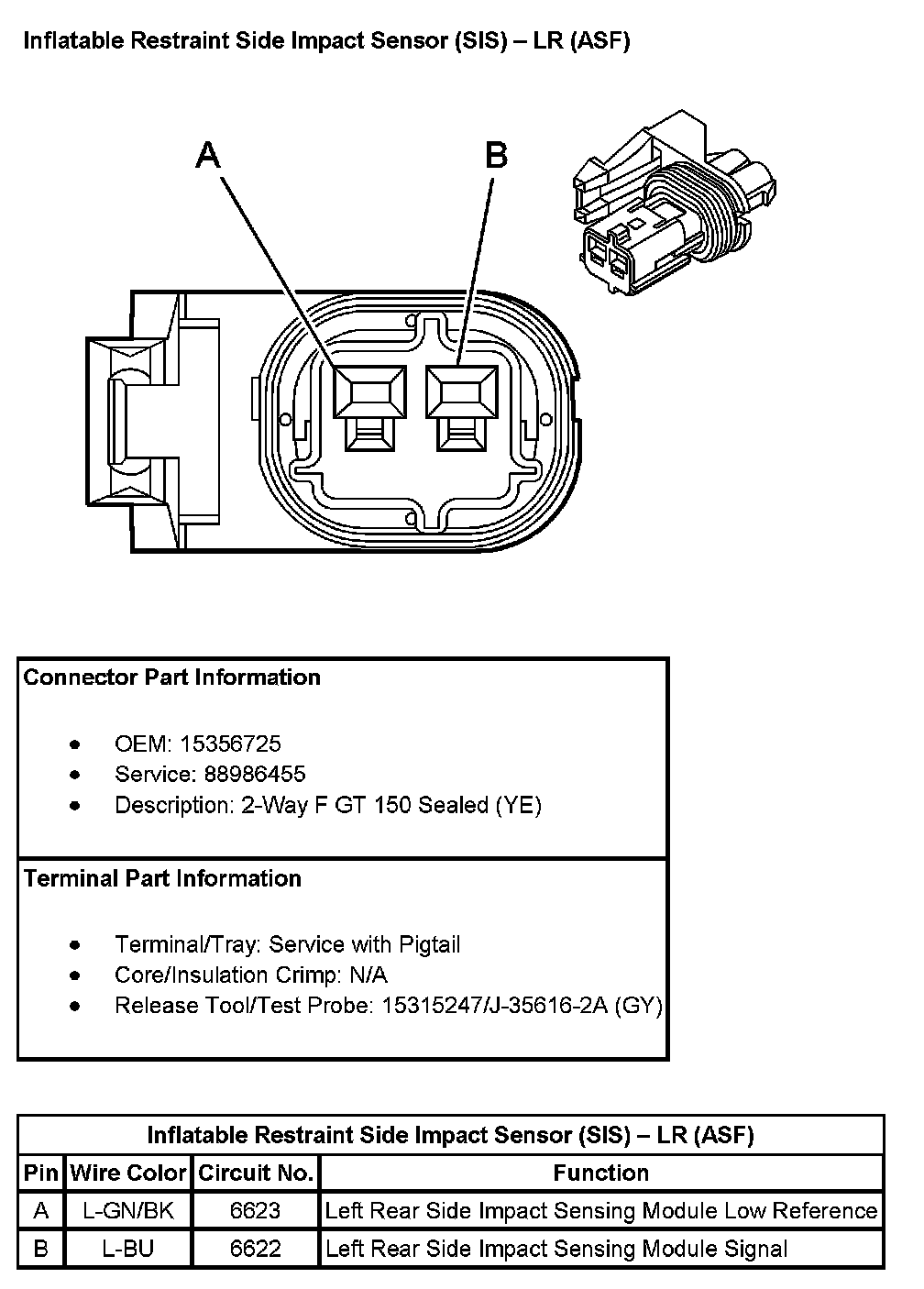

Inflatable Restraint Side Impact Sensor (SIS) - LR (With RPO Code ASF):



Inflatable Restraint Side Impact Sensor (SIS) - RF (With RPO Code ASF):

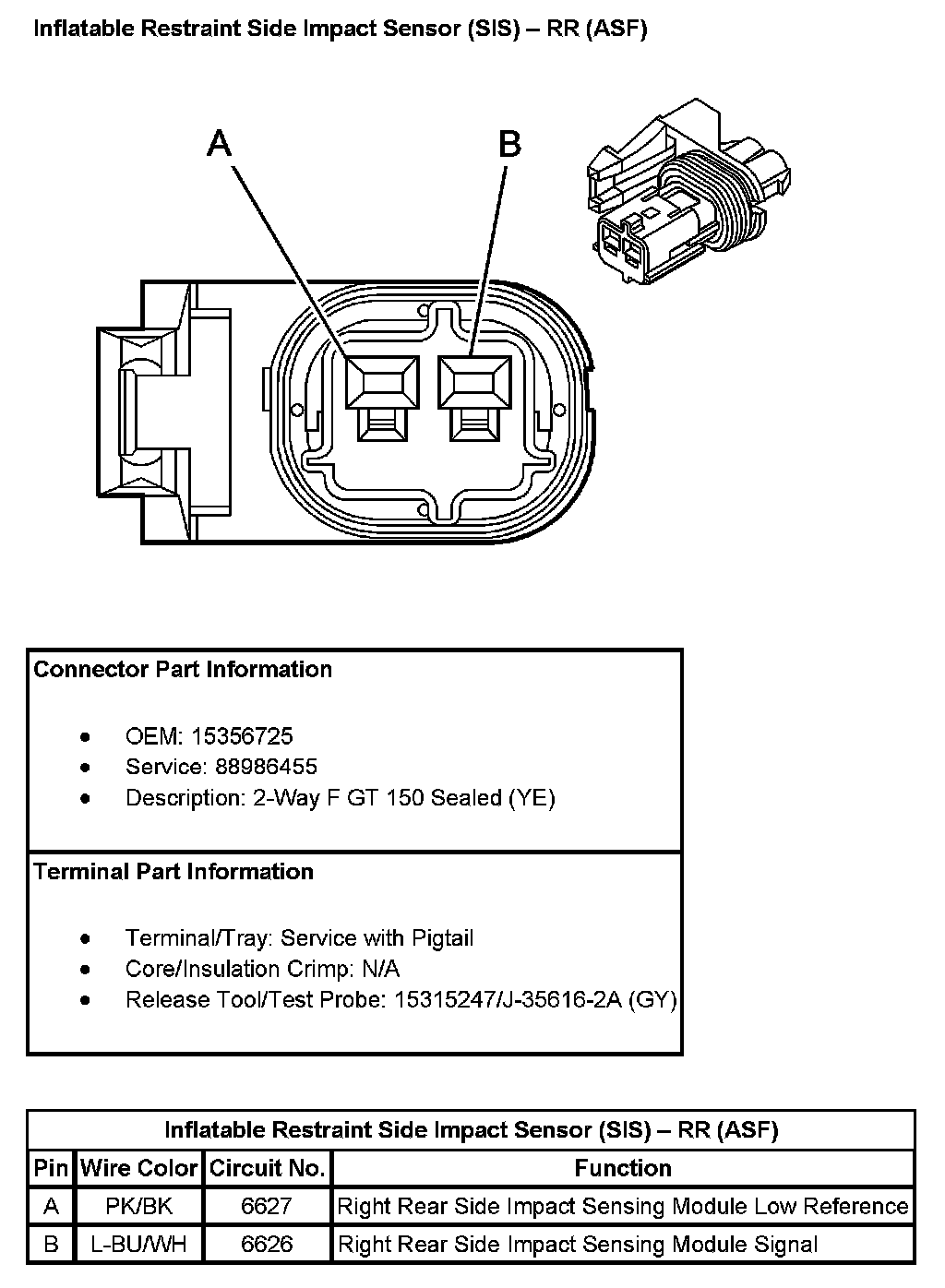

Inflatable Restraint Side Impact Sensor (SIS) - RR (With RPO Code ASF):
