Inflatable Restraint Steering Wheel Module

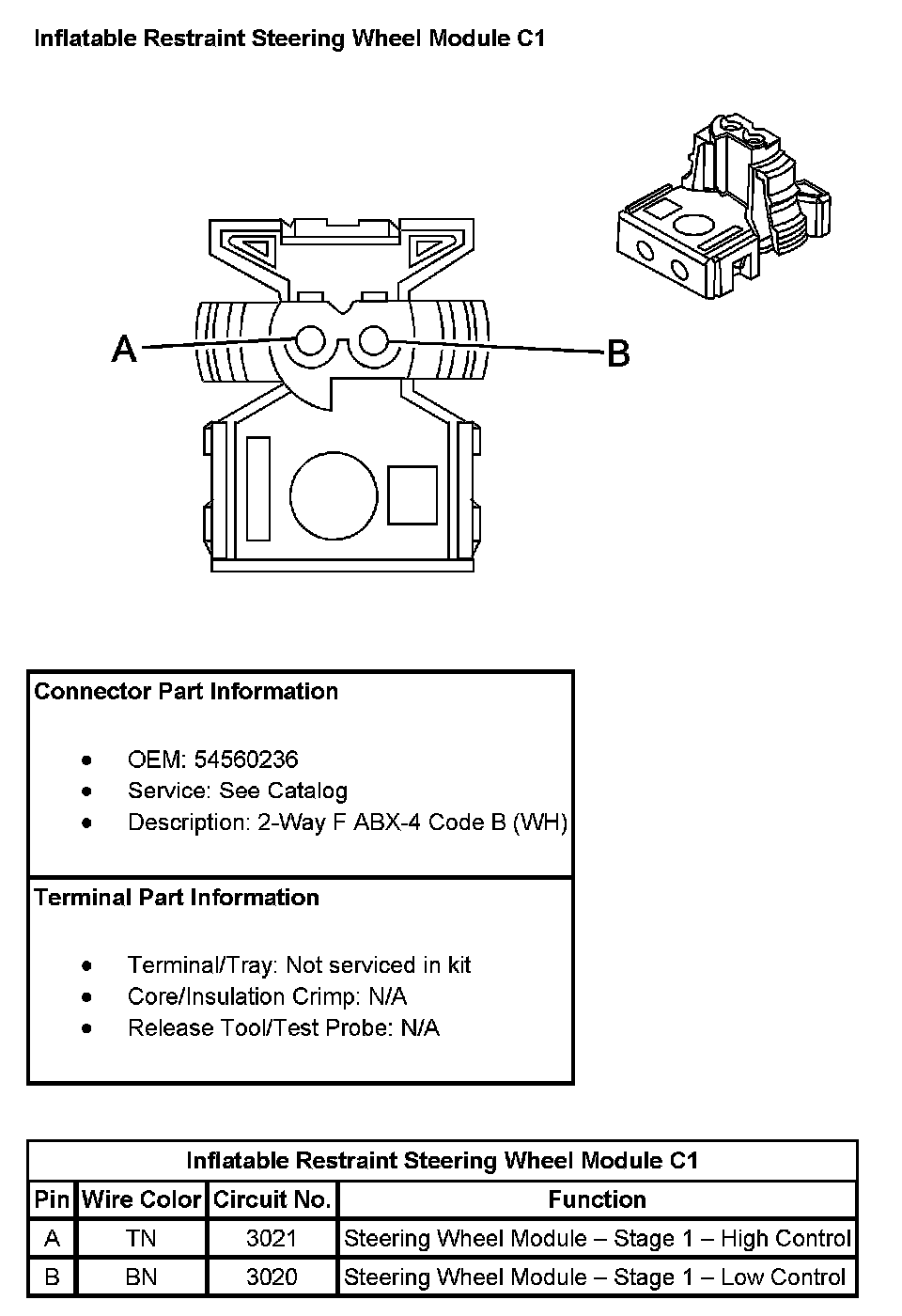

Inflatable Restraint Steering Wheel Module C1:

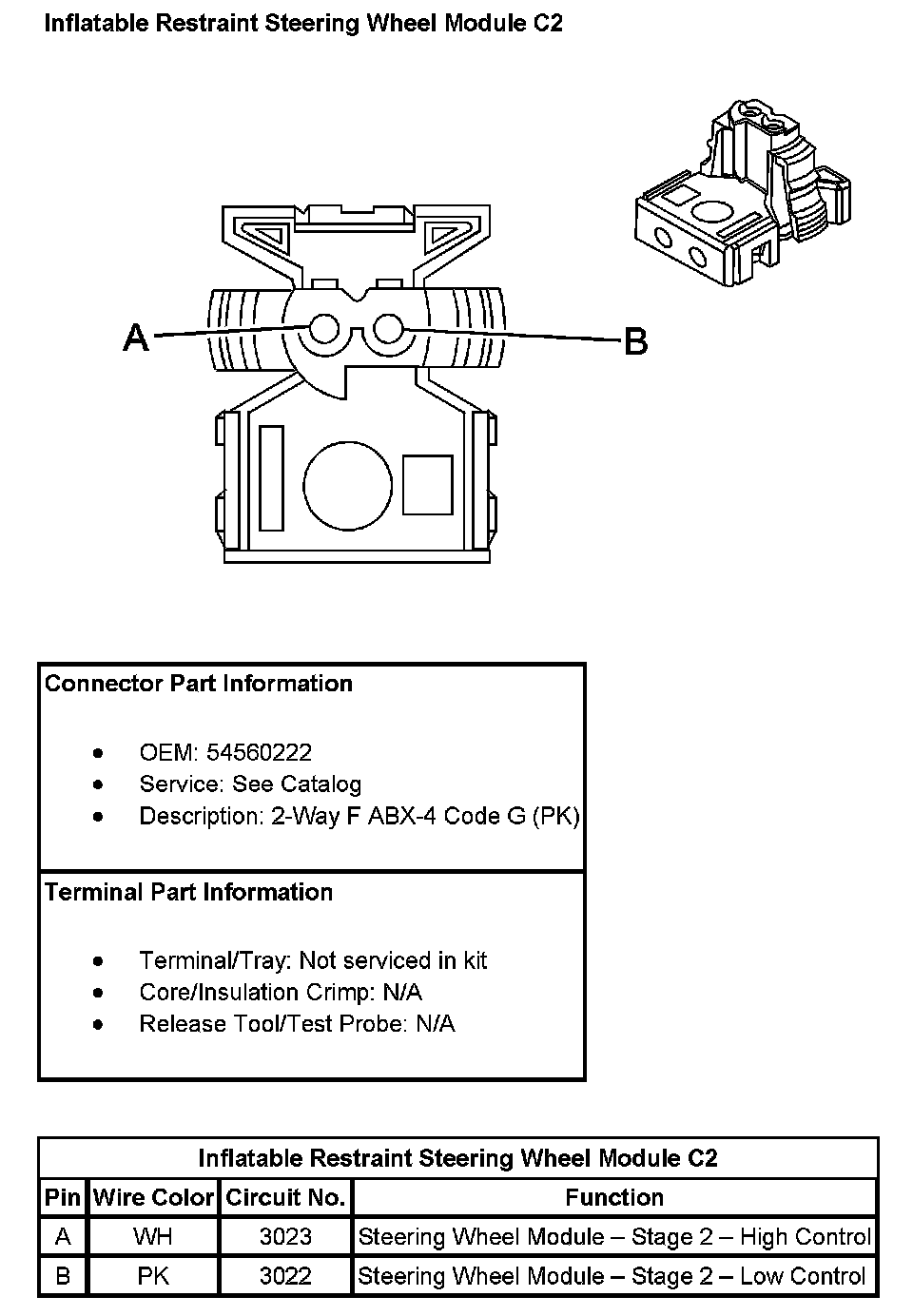

Inflatable Restraint Steering Wheel Module C2:
