Scan Tool Output Controls



Scan Tool Output Controls (M30/M32)

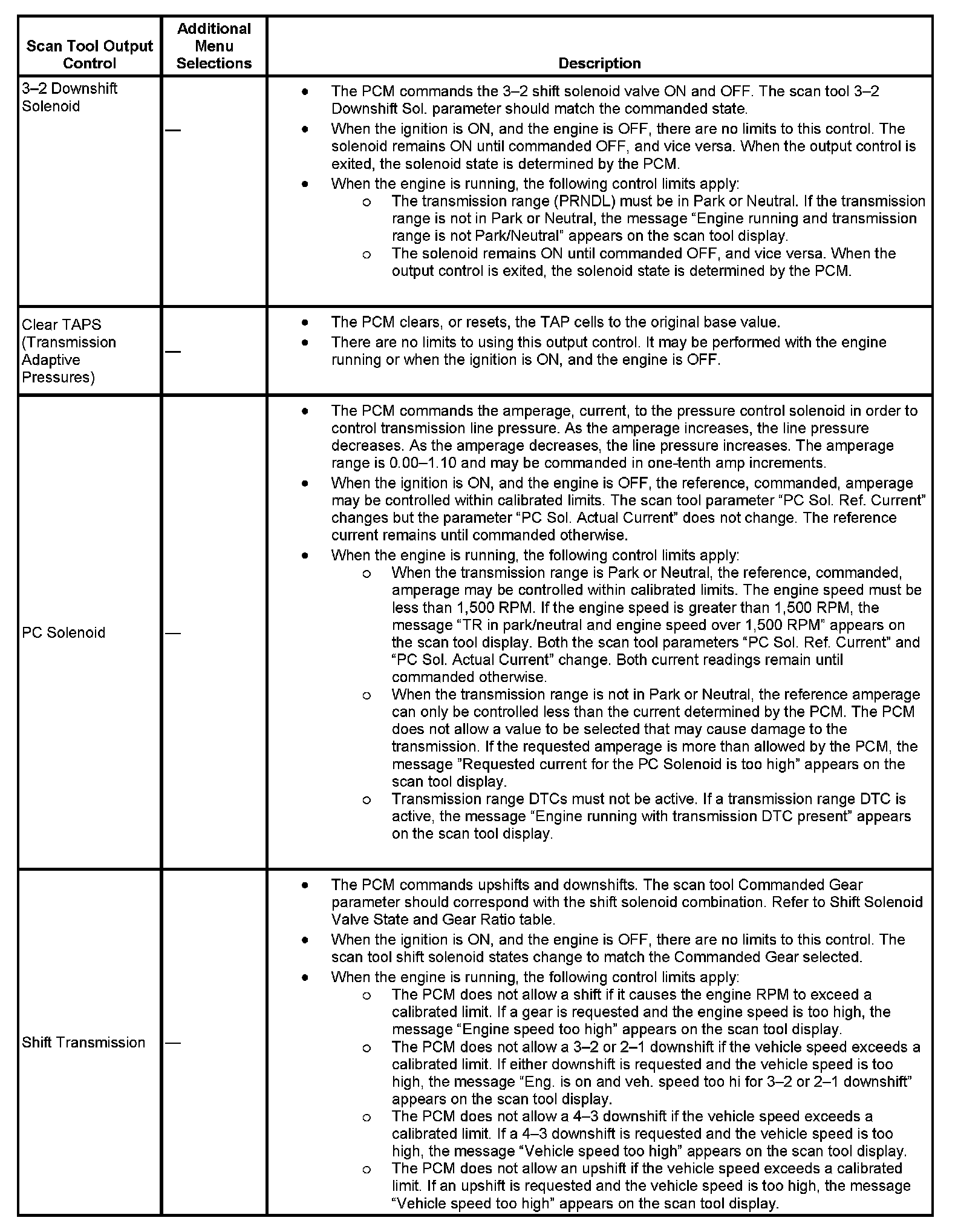

Scan Tool Output Controls (M30/M32) (Part 1):

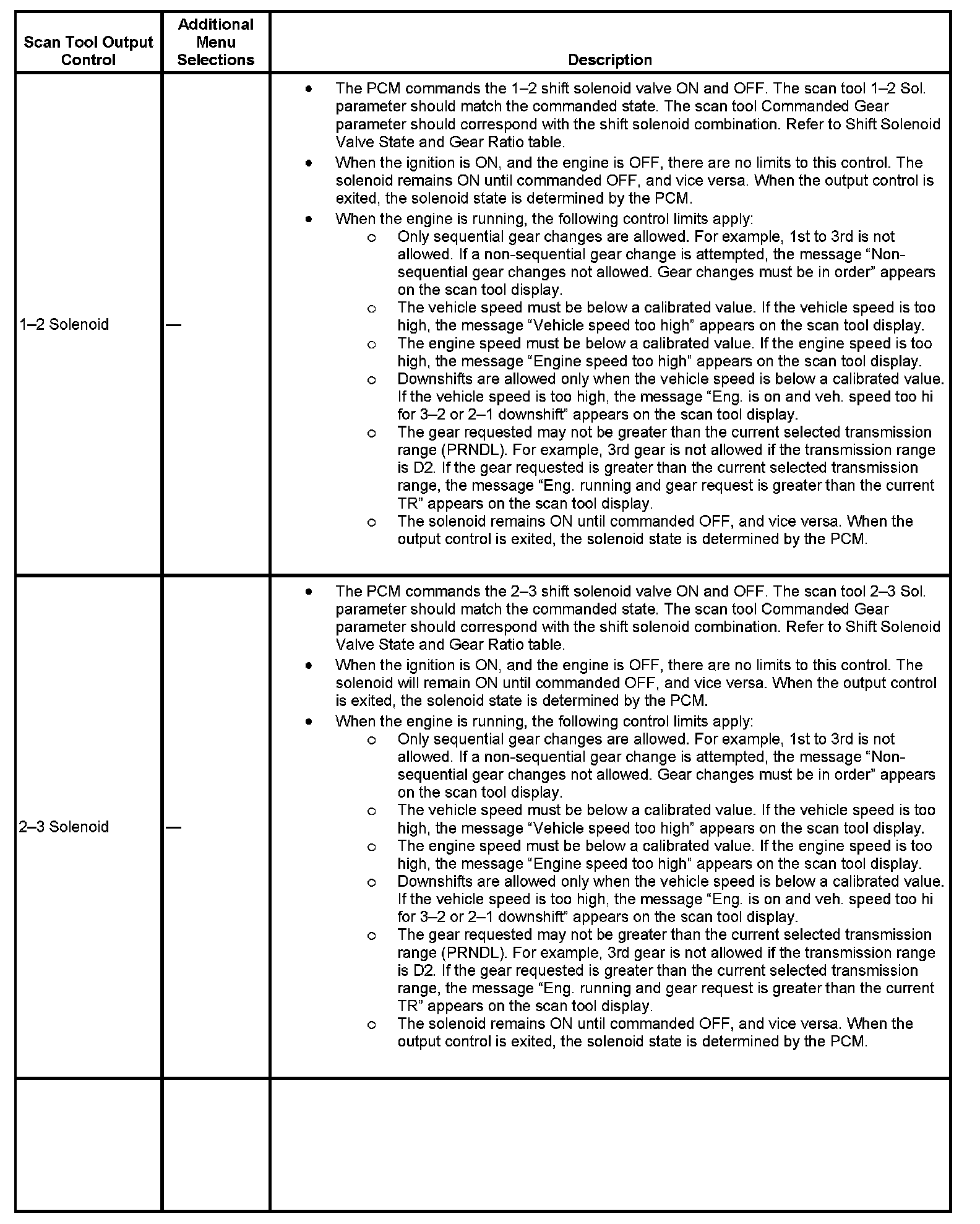

Scan Tool Output Controls (M30/M32) (Part 2):

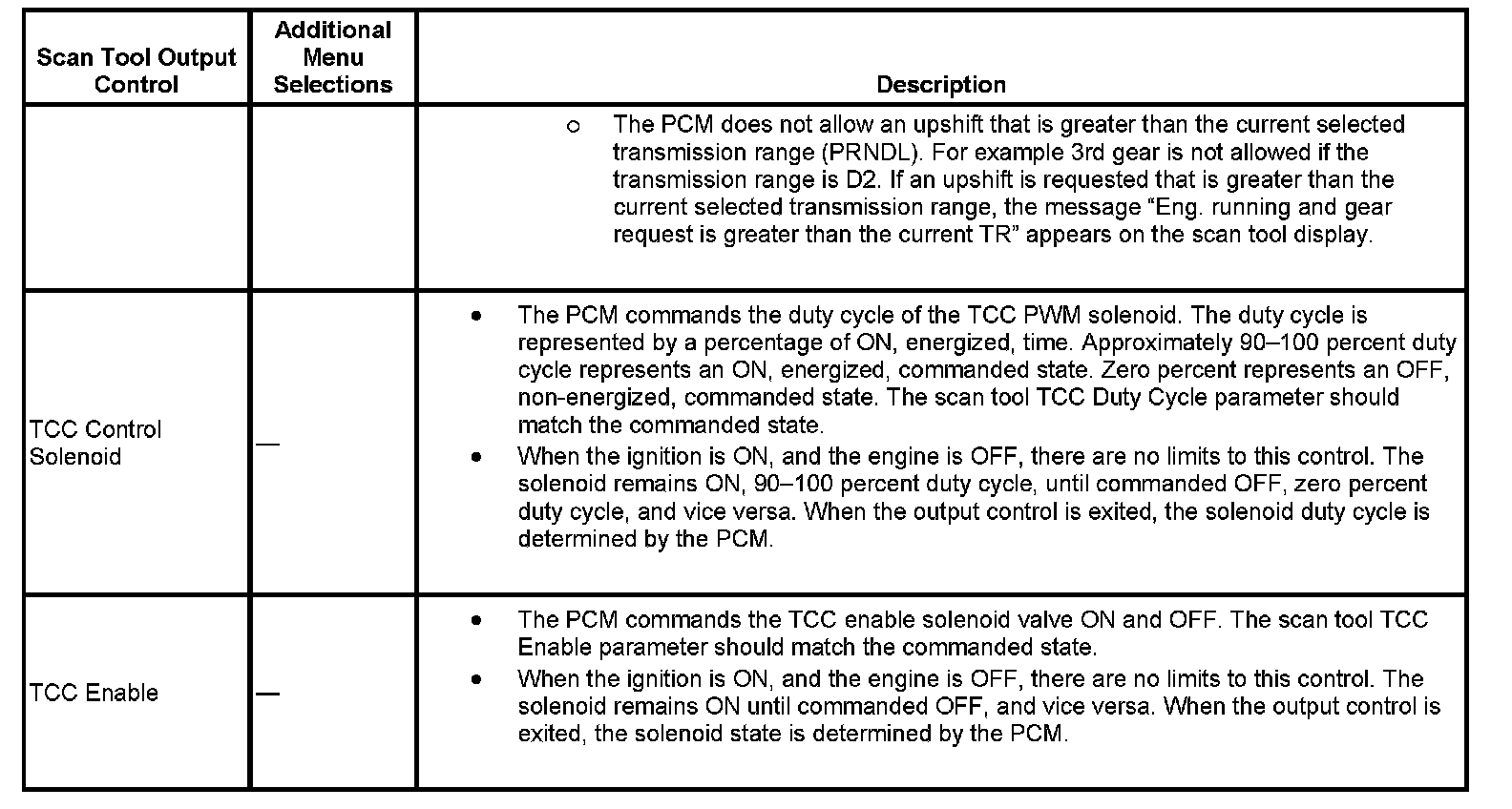

Scan Tool Output Controls (M30/M32) (Part 3):
