Installation Procedure

    NOTE: Refer to Fastener Notice .
  1. Use the DT 46475  (1) to install the transaxle fluid drain plug. See Special Tools .

    Tighten:  Tighten the drain plug to 45 N.m (33 lb ft)  .

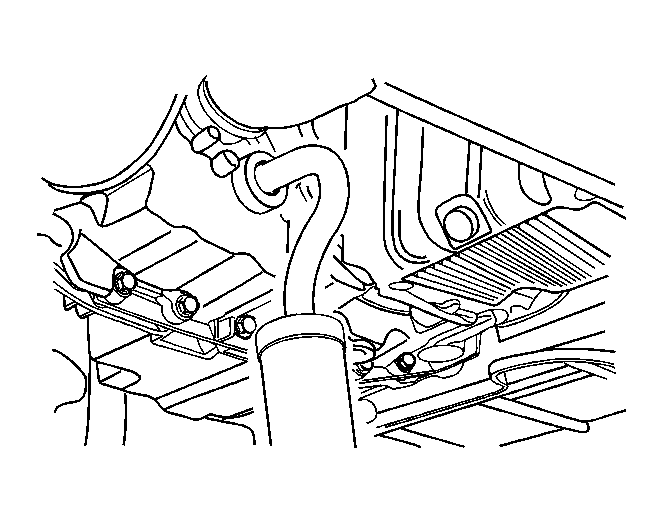

    2. Fig 1: Filling Transaxle With Fluid
    GM1255913Courtesy of GENERAL MOTORS CORP.
  2. Add the transaxle fluid. Refer to Transmission Fluid Level Inspection .
