Ground Distribution Schematics

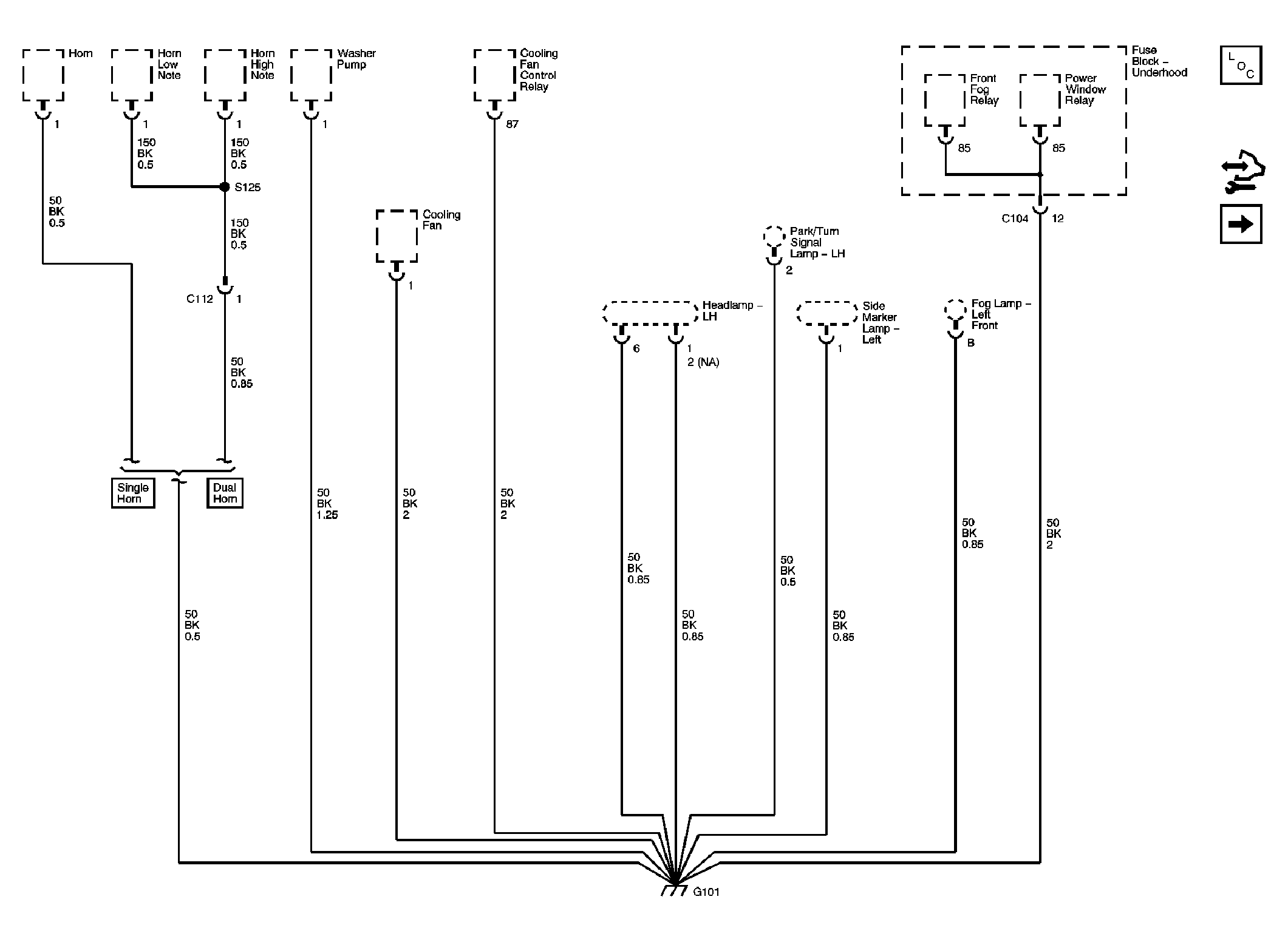

Fig 1: G101 Schematic

GM1847395

Courtesy of GENERAL MOTORS CORP.

Fig 2: G102 Schematic

GM1847396

Courtesy of GENERAL MOTORS CORP.

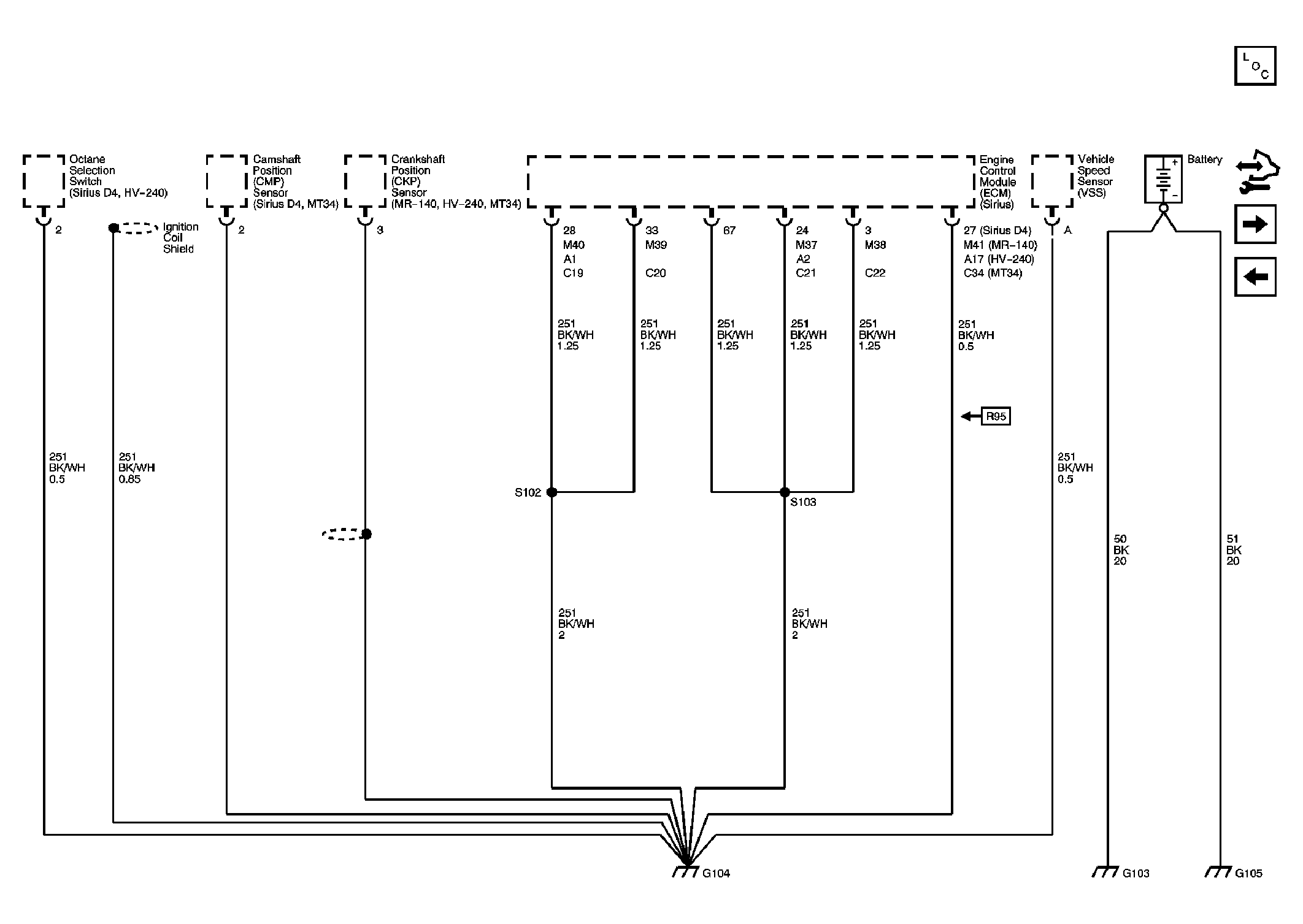

Fig 3: G104 Schematic

GM1847397

Courtesy of GENERAL MOTORS CORP.

Fig 4: G106, G107 Schematic

GM1847398

Courtesy of GENERAL MOTORS CORP.

Fig 5: G201 Schematic (1 of 2)

GM1847399

Courtesy of GENERAL MOTORS CORP.

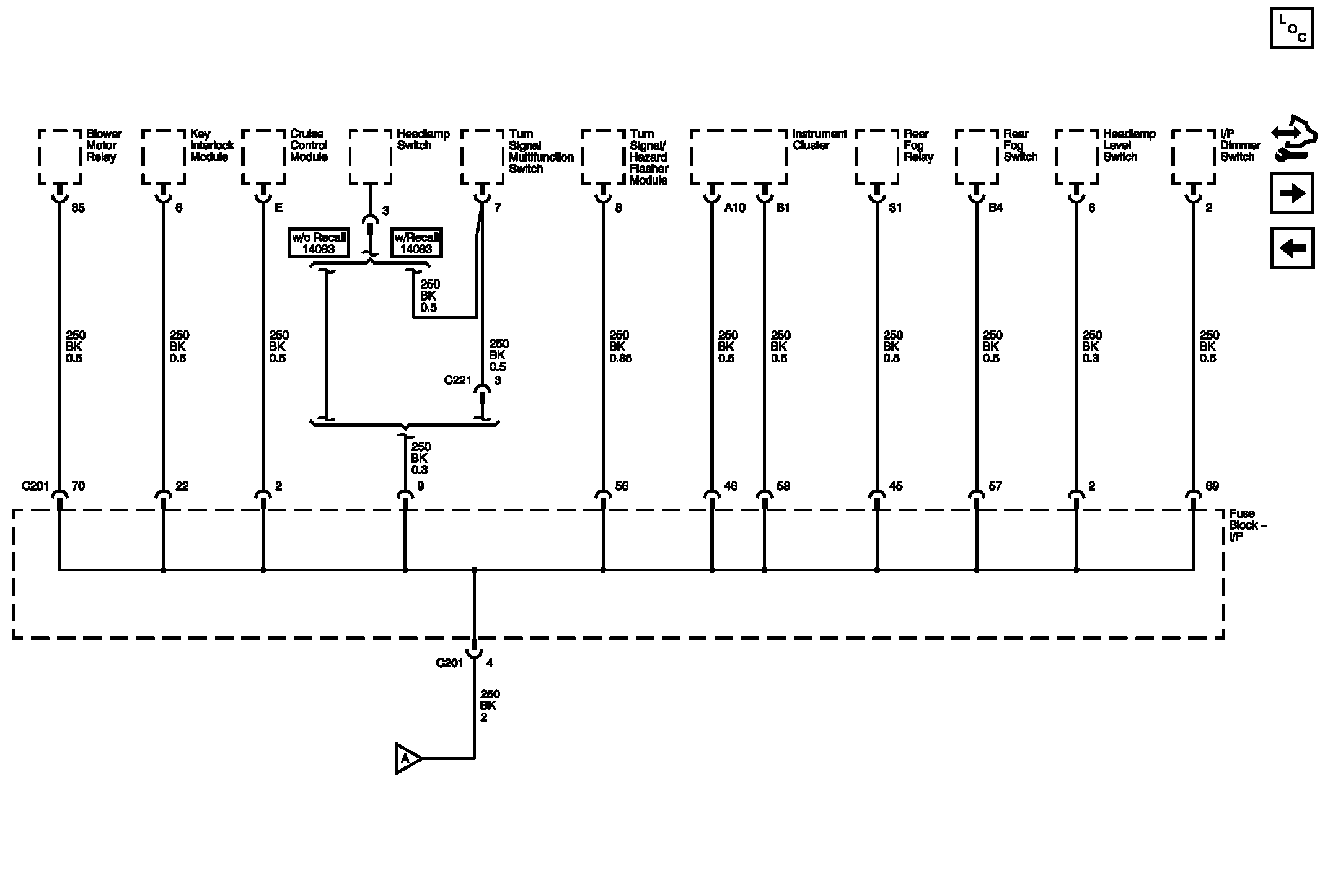

Fig 6: G201 Schematic (2 of 2)

GM1847400

Courtesy of GENERAL MOTORS CORP.

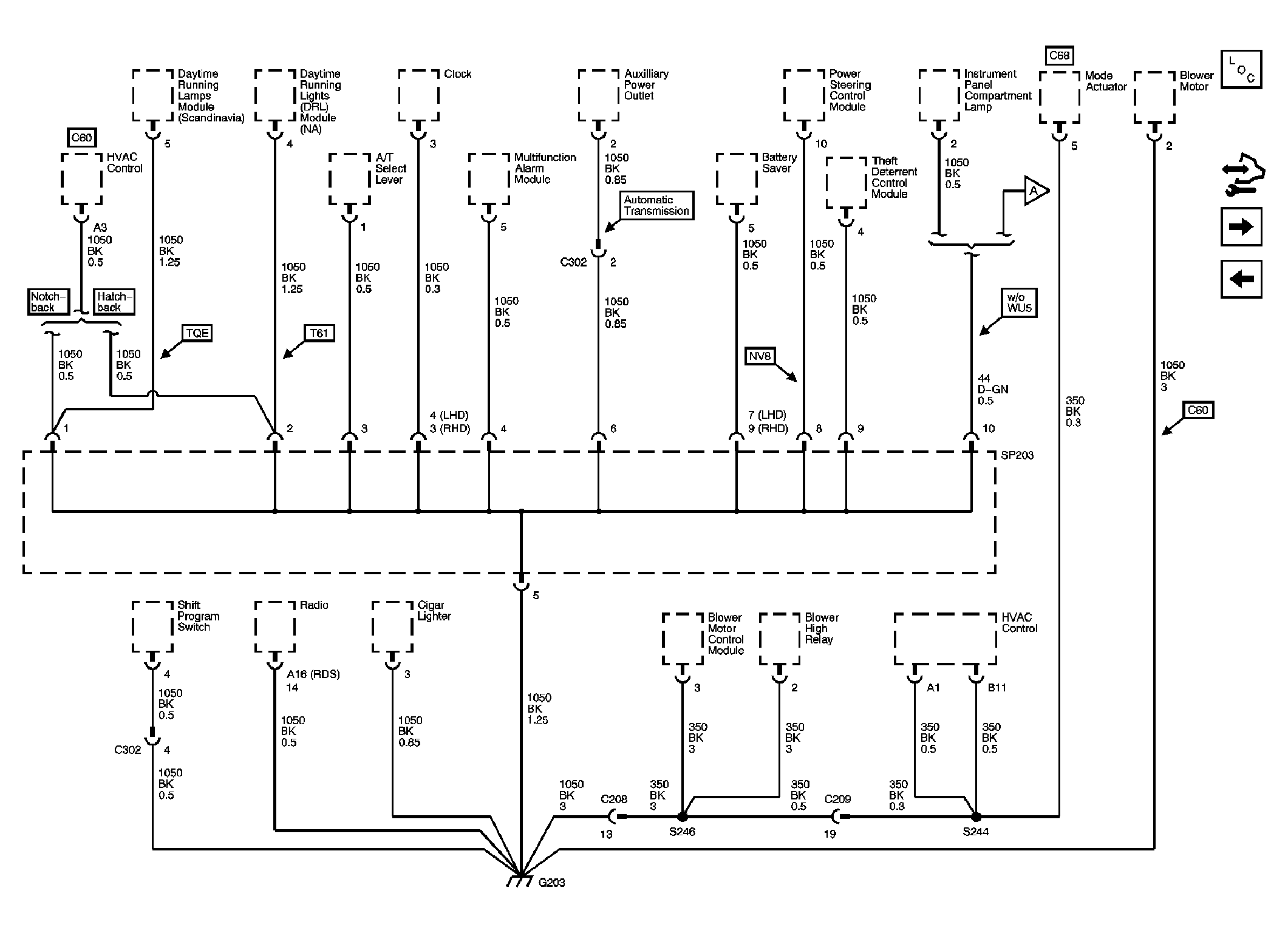

Fig 7: G203 Schematic

GM1708949

Courtesy of GENERAL MOTORS CORP.

Fig 8: G203 Schematic Continued (w/o Dimmer)

GM1455045

Courtesy of GENERAL MOTORS CORP.

Fig 9: G202, G204 Schematic

GM1650826

Courtesy of GENERAL MOTORS CORP.

Fig 10: G204, G301 Schematic

GM1847401

Courtesy of GENERAL MOTORS CORP.

Fig 11: G205, G301 Schematic

GM1847402

Courtesy of GENERAL MOTORS CORP.

Fig 12: G302 Schematic

GM1847403

Courtesy of GENERAL MOTORS CORP.

Fig 13: G303, G401 Schematic

GM1847404

Courtesy of GENERAL MOTORS CORP.

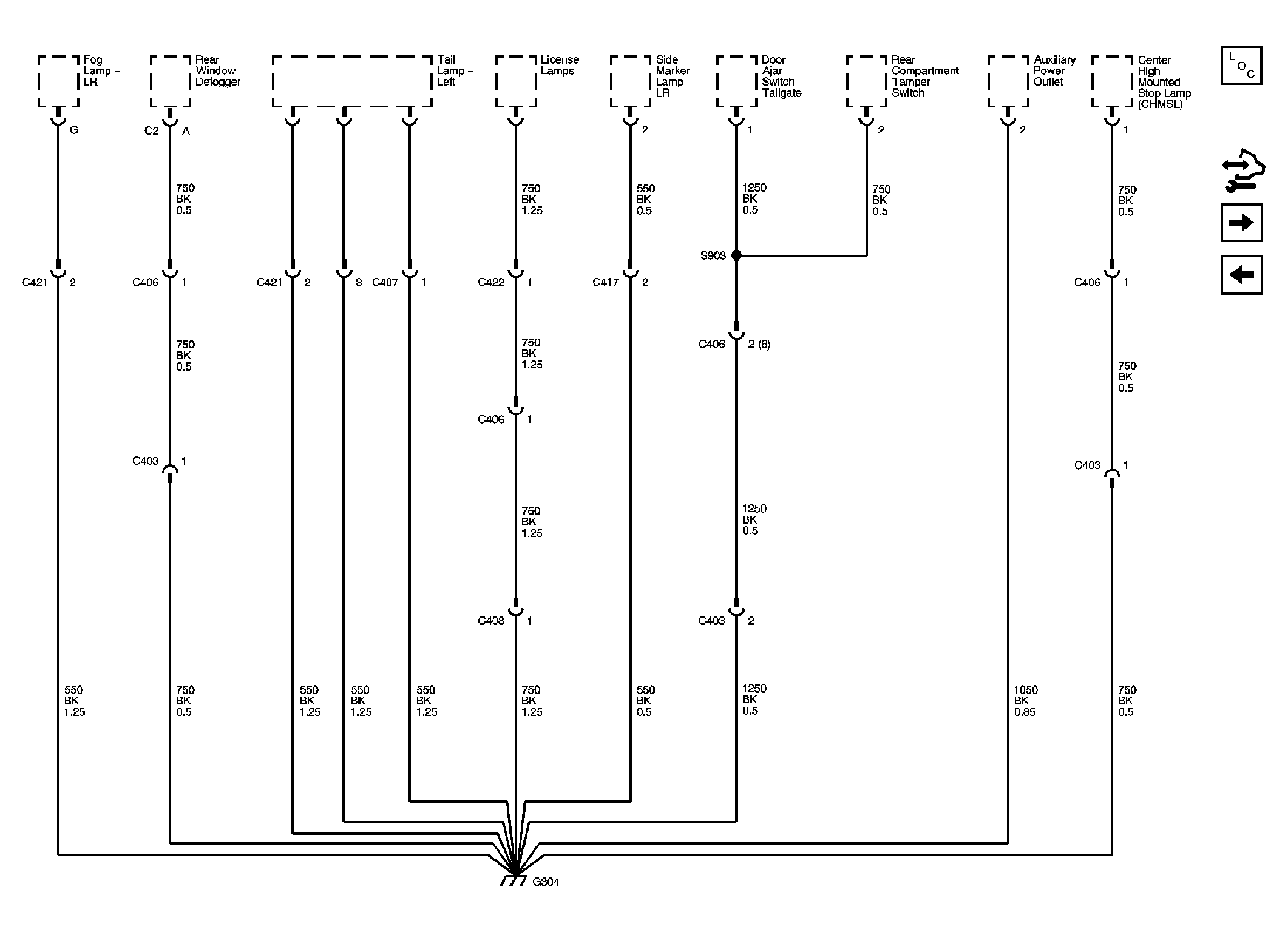

Fig 14: G304 Schematic

GM1847405

Courtesy of GENERAL MOTORS CORP.

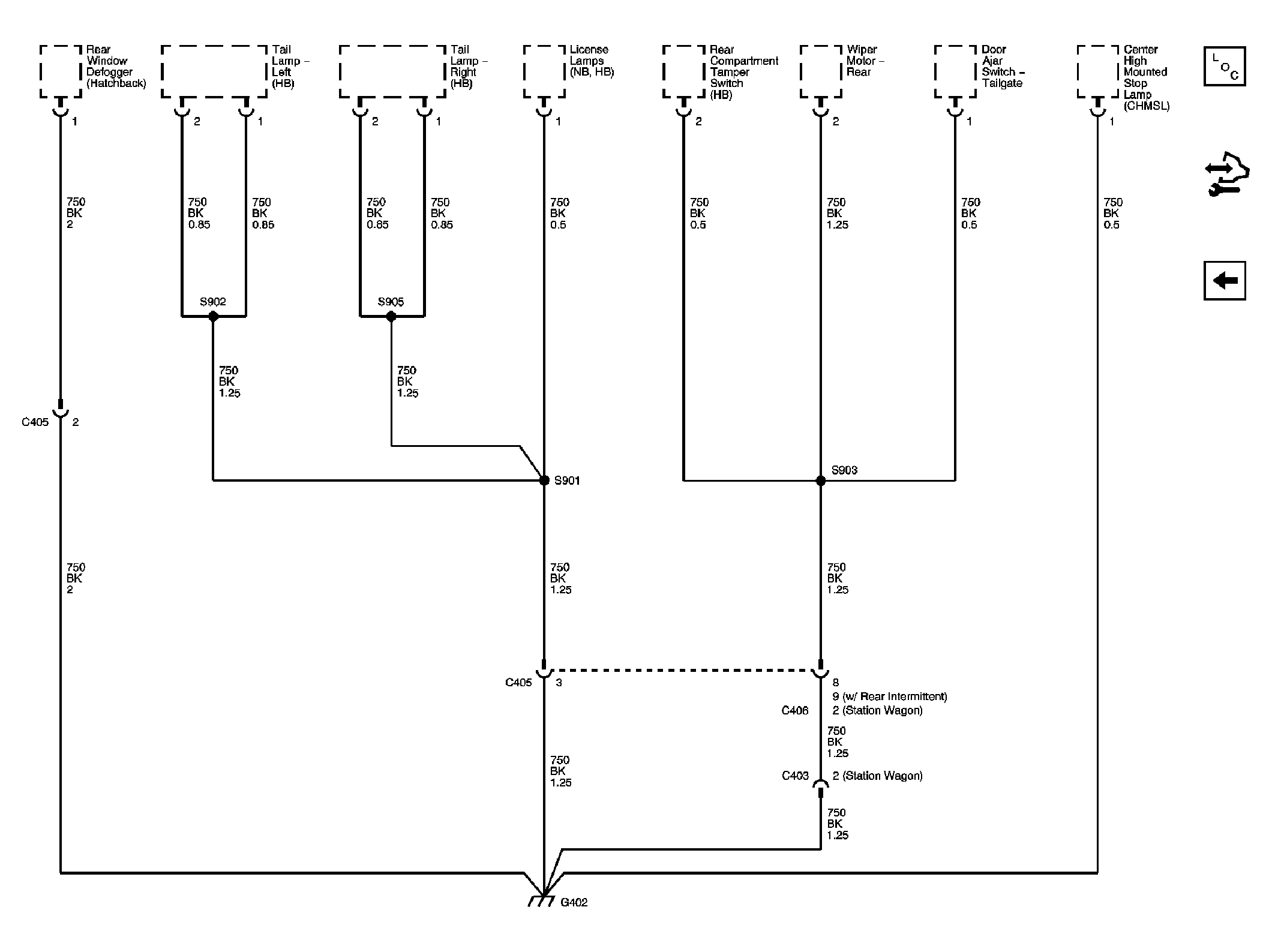

Fig 15: G402 Schematic

GM1847406

Courtesy of GENERAL MOTORS CORP.
