Air Bag Control Module: Locations

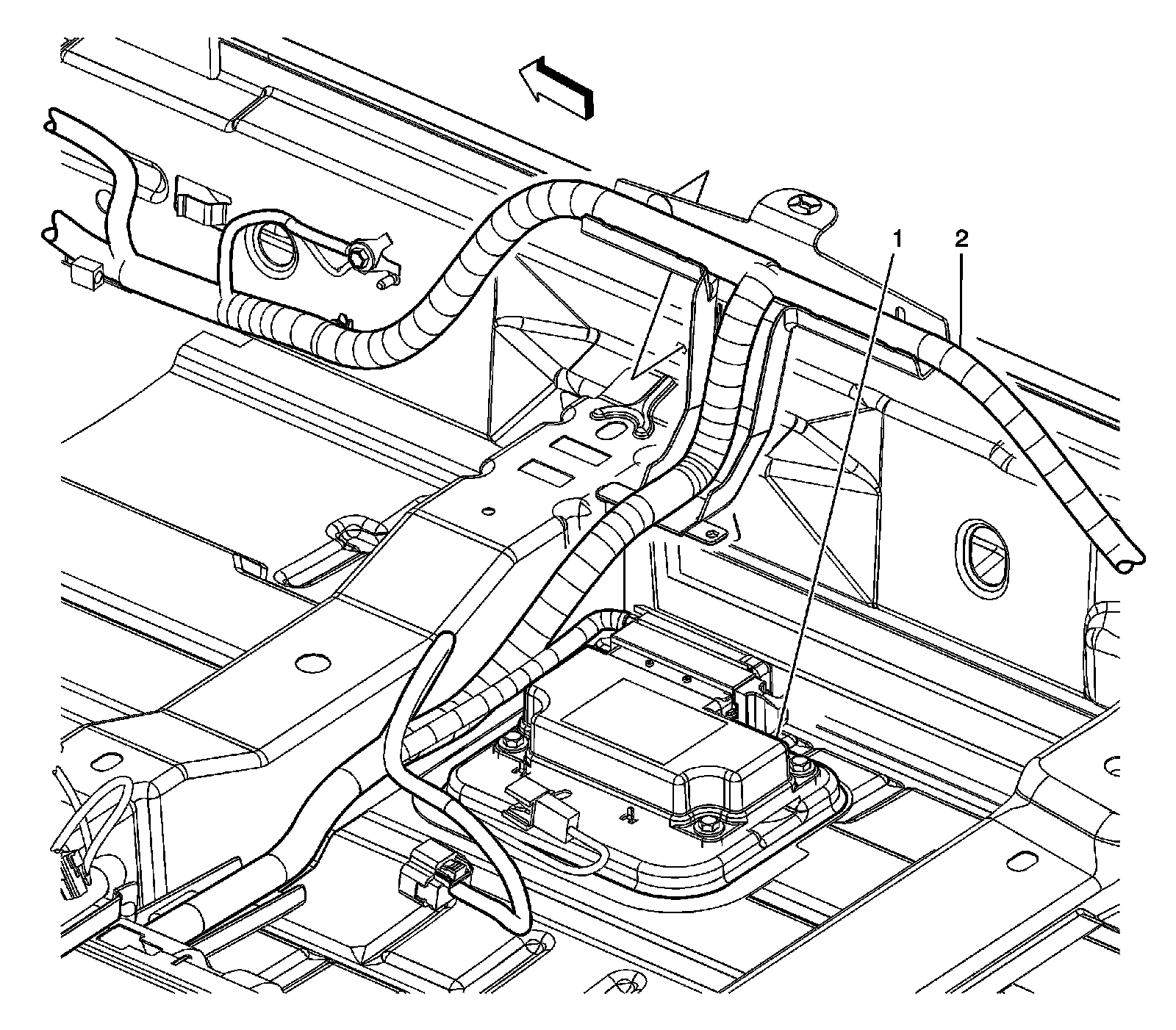

SIR Component Views

Under the Passenger Seat

1 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
2 - Front Passenger Floor
