Engine Views



Power and Grounding Component Views

Front of the Engine (LS4)




1 - G111
2 - Starter Solenoid
3 - C100
4 - Starter
5 - Cable Pro fuse
6 - G113

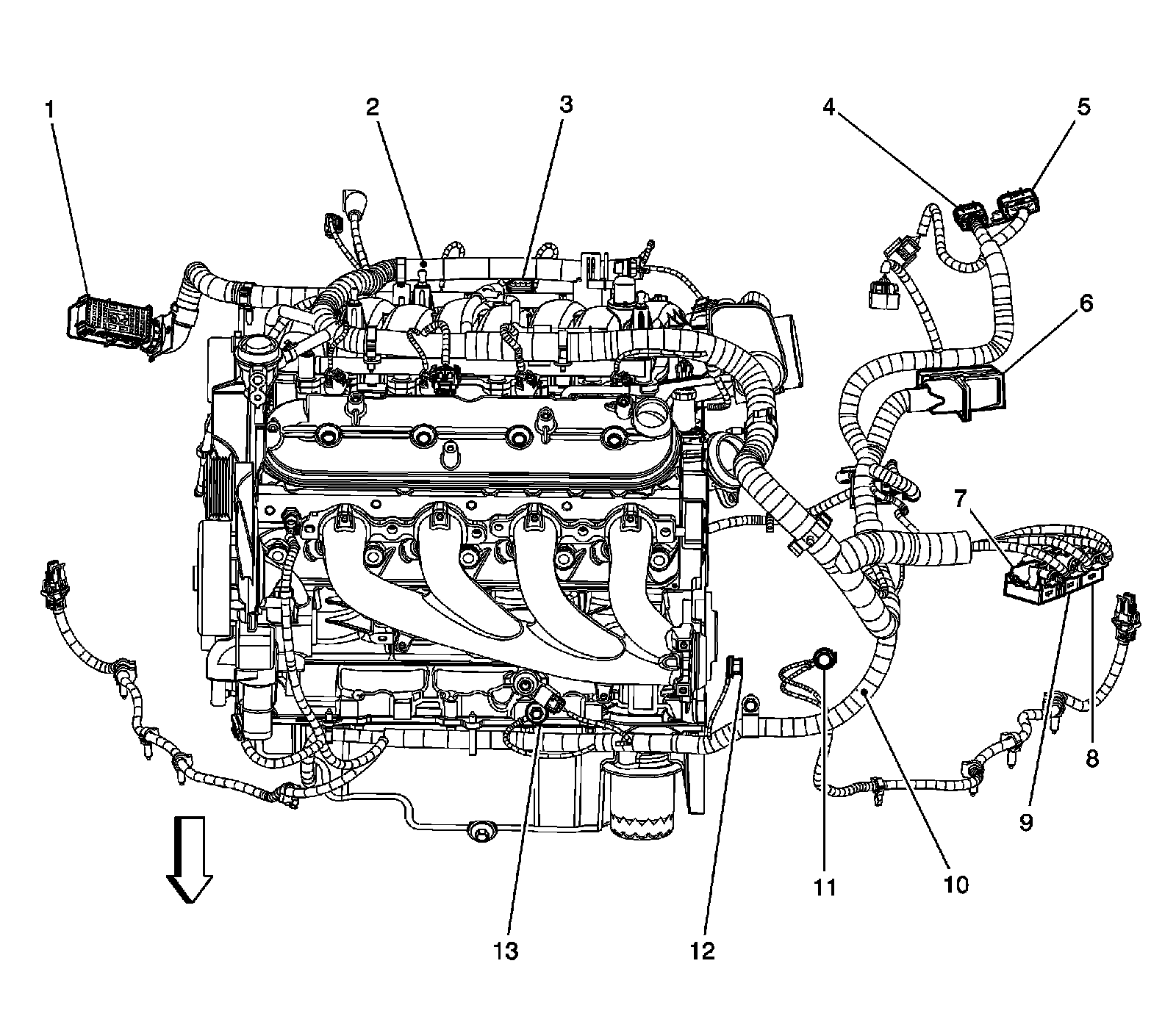

Front of the Engine (LS4)




1 - Fuse Block - Underhood C1
2 - S109
3 - C108
4 - C101
5 - C111
6 - Electronic Brake Control Module (EBCM) C1
7 - Engine Control Module (ECM) C3
8 - Engine Control Module (ECM) C2
9 - Engine Control Module (ECM) C1
10 - S101
11 - G113
12 - G111
13 - G115
