I/P Fuse Block

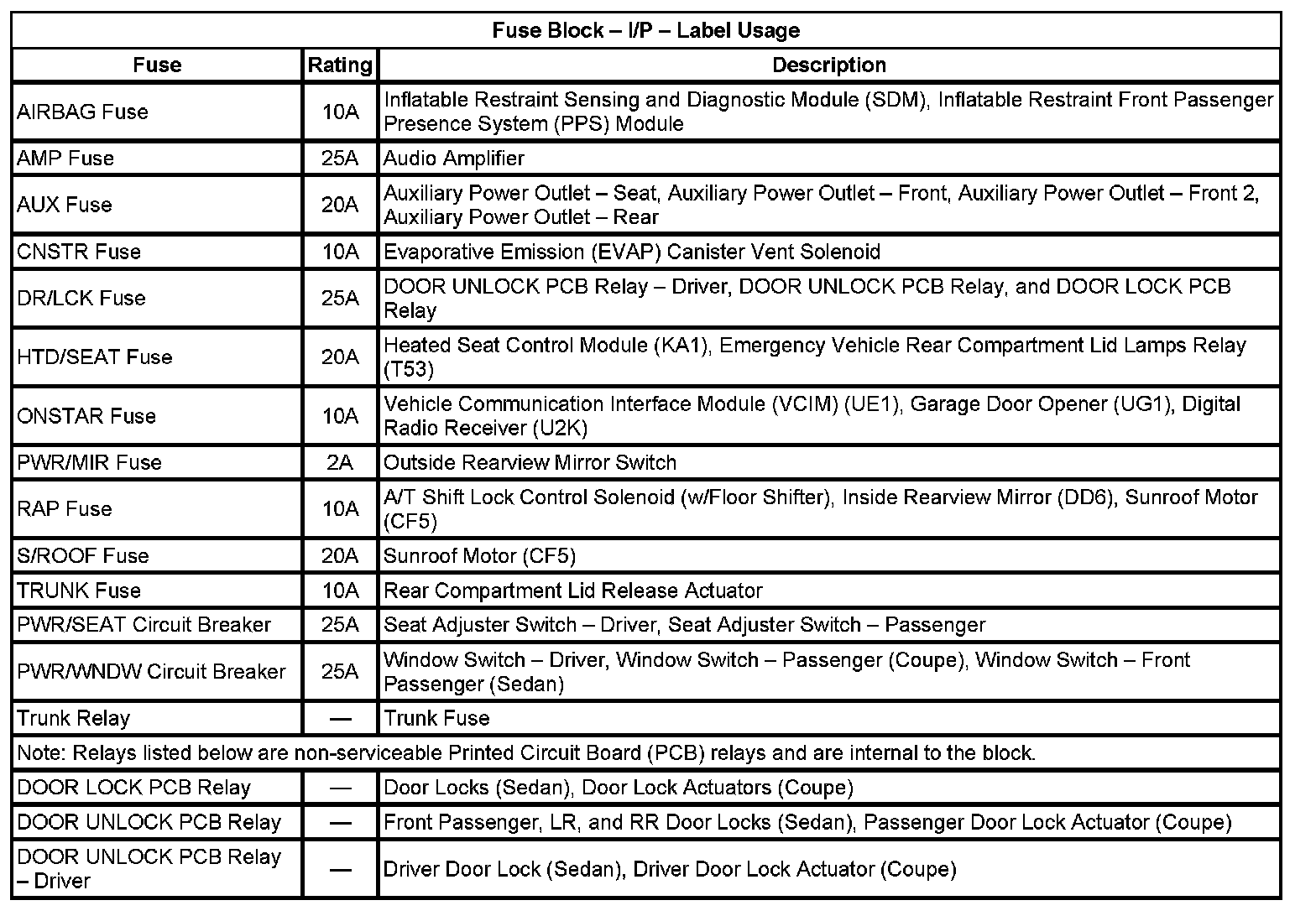

Electrical Center Identification Views

Fuse Block - I/P - Label (Coupe)






Fuse Block - I/P - Label (Sedan)
