Body Control Systems
Body Control System Schematics

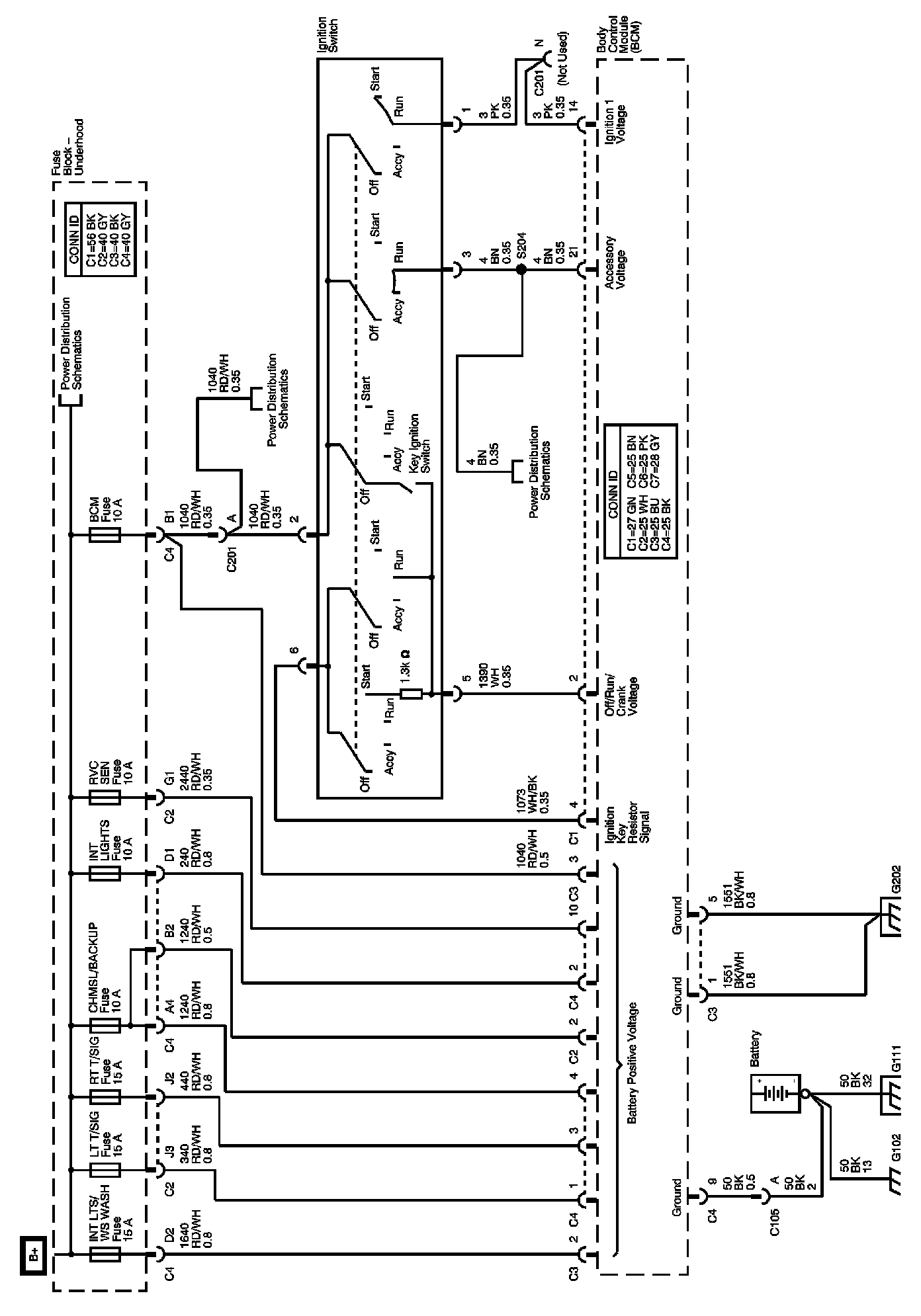

Power and Ground

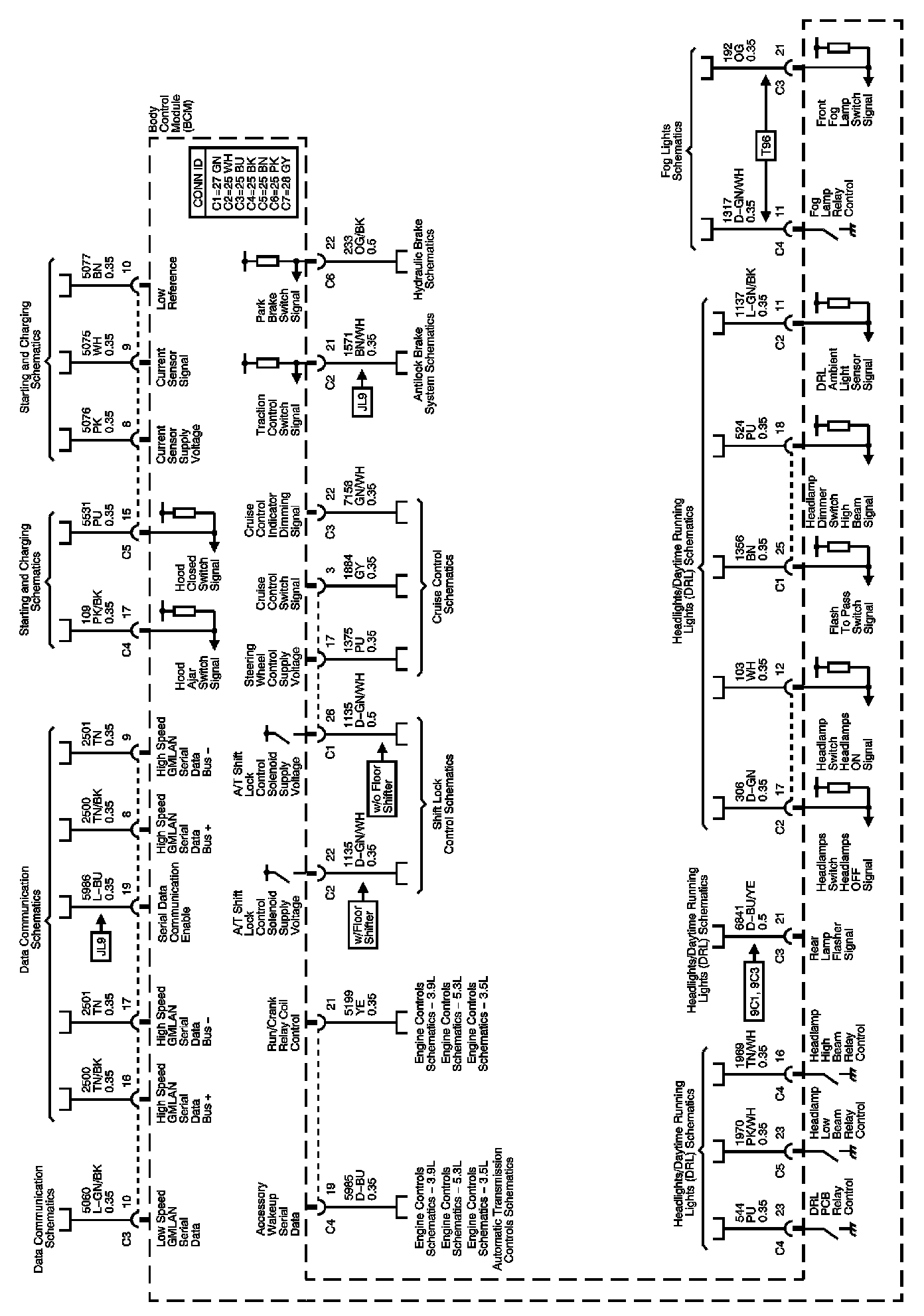

Data Link, Starting and Charging, Engine Controls, A/T Shift lock Controls, Cruise Control, ABS, Brake Warning, Headlights/DRL, and Fog Lights References

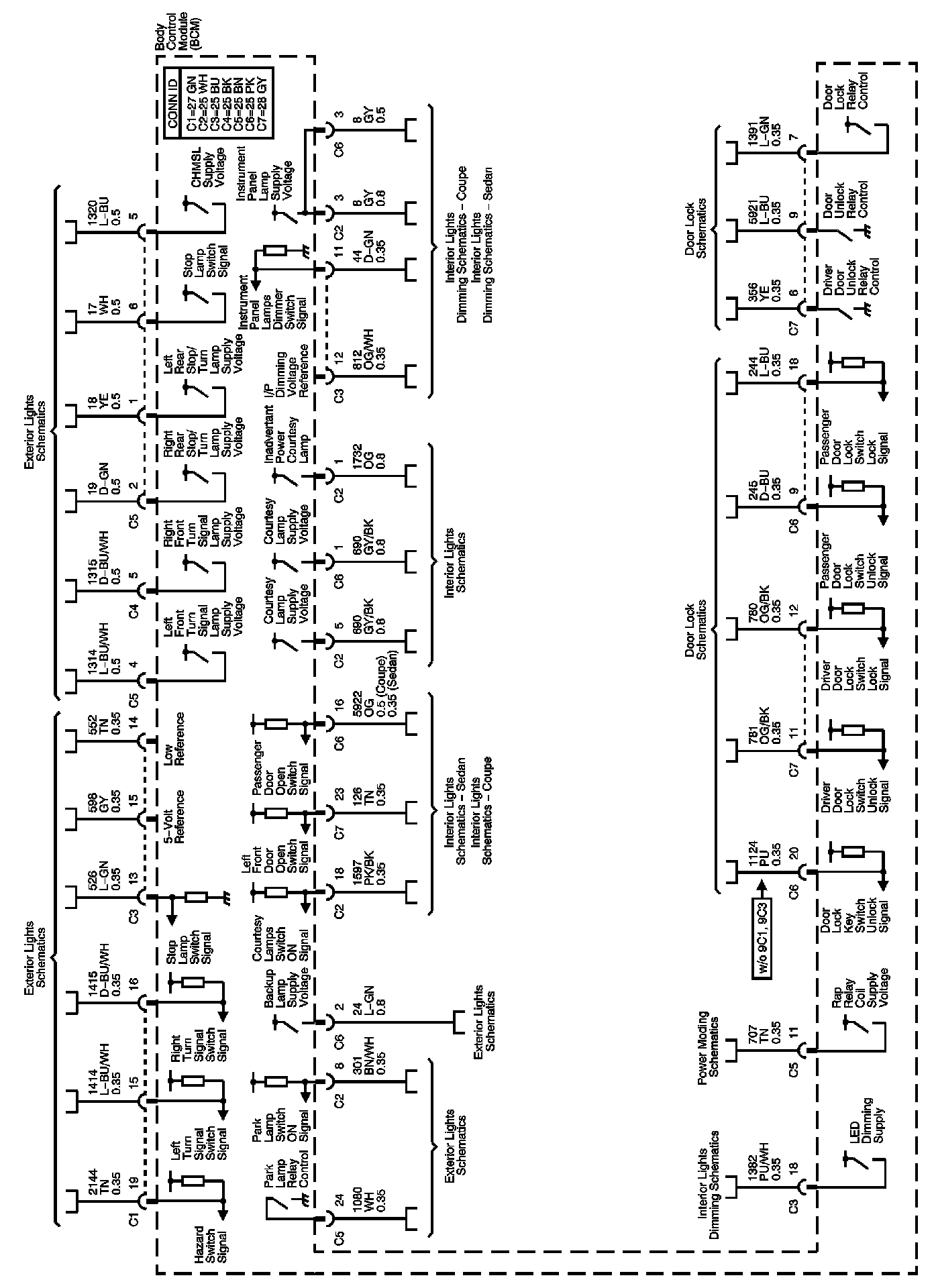

Exterior Lights, Interior Lights, Interior Lights Dimming, RAP, and Door Lock/Indicator References

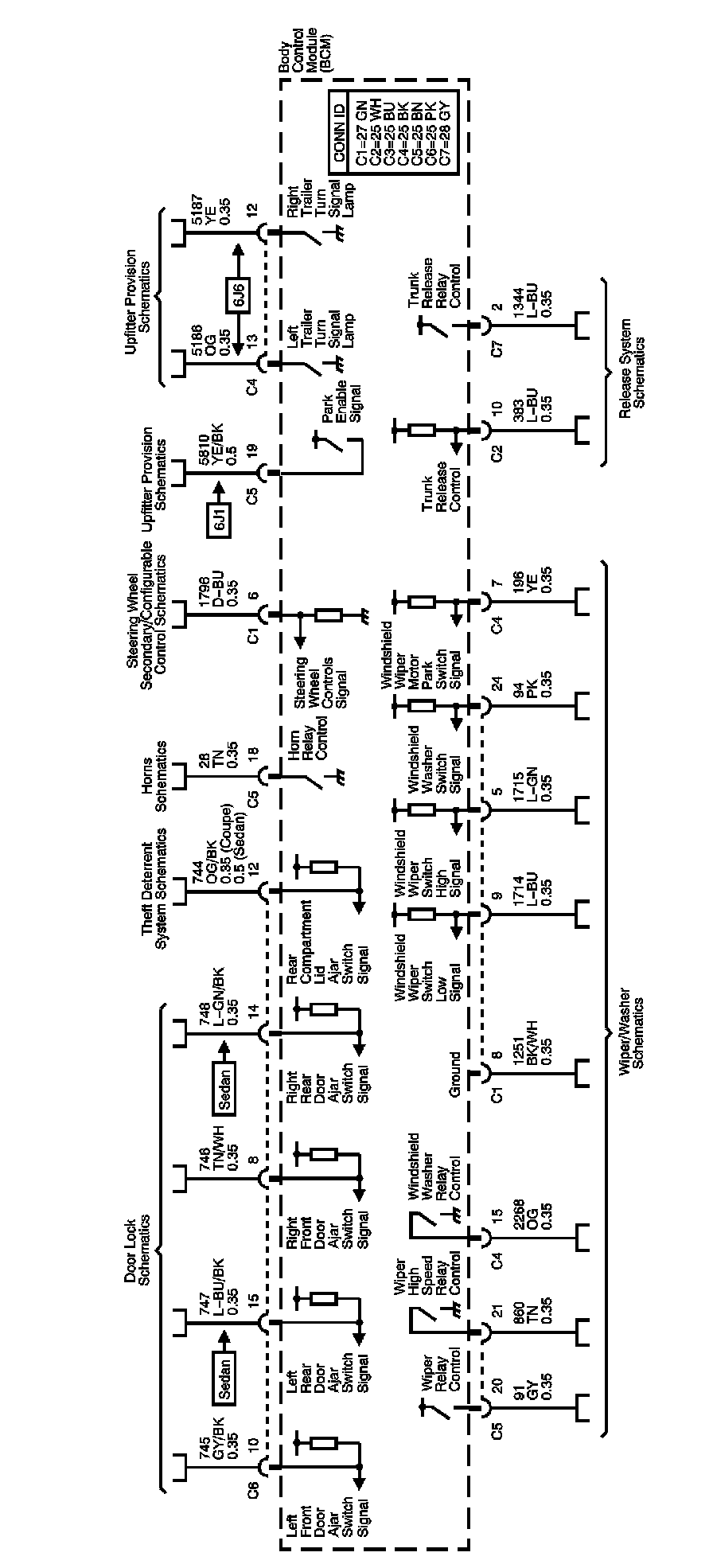

Door Lock/Indicator Cont., Theft Deterrent, Horns, Steering Wheel, Upfitter Provisions, Wiper/Washer, and Body Rear End References
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
