Side Object Detection - Left (UFT)

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

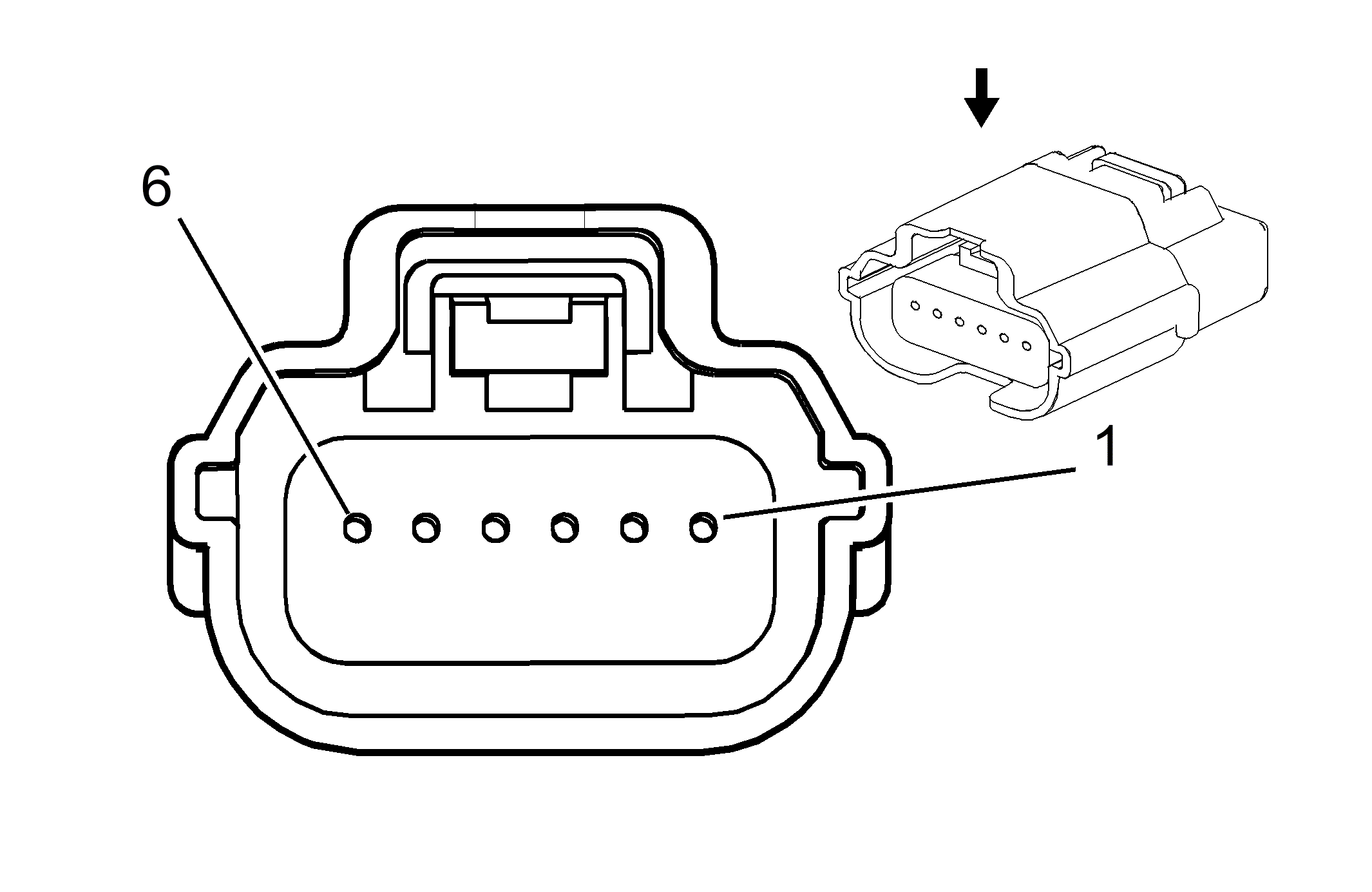

Fig 1: Side Object Detection - Left (UFT) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	D-BU	-	Not Used
2	0.35 RD/WH	4540	Battery Positive Voltage
3	D-BU	-	Not Used
4	0.35 D-GN	5060	Low Speed GMLAN Serial Data
5	0.35 BK	1050	Ground
6	D-BU	-	Not Used

Connector Part Information

OEM: 31404-6100
Service: See Catalog
Description: 6-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
