Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent from the washer solvent container.
  2. Disconnect the front washer pump electrical connector.
  3. Disconnect the front washer pump hose.

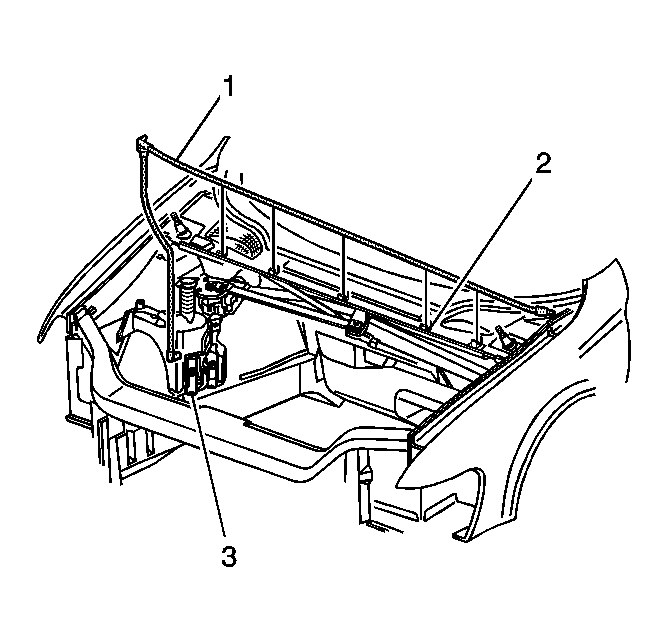

    4. Fig 1: Locating Windshield Washer Hoses
    GM1480124Courtesy of GENERAL MOTORS CORP.
  4. Using a small flat-bladed tool, remove the front washer pump (3) from the washer solvent container.
  5. Using a small flat-bladed tool, remove the seal from the washer solvent container.
