Automatic Level Control Schematics

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

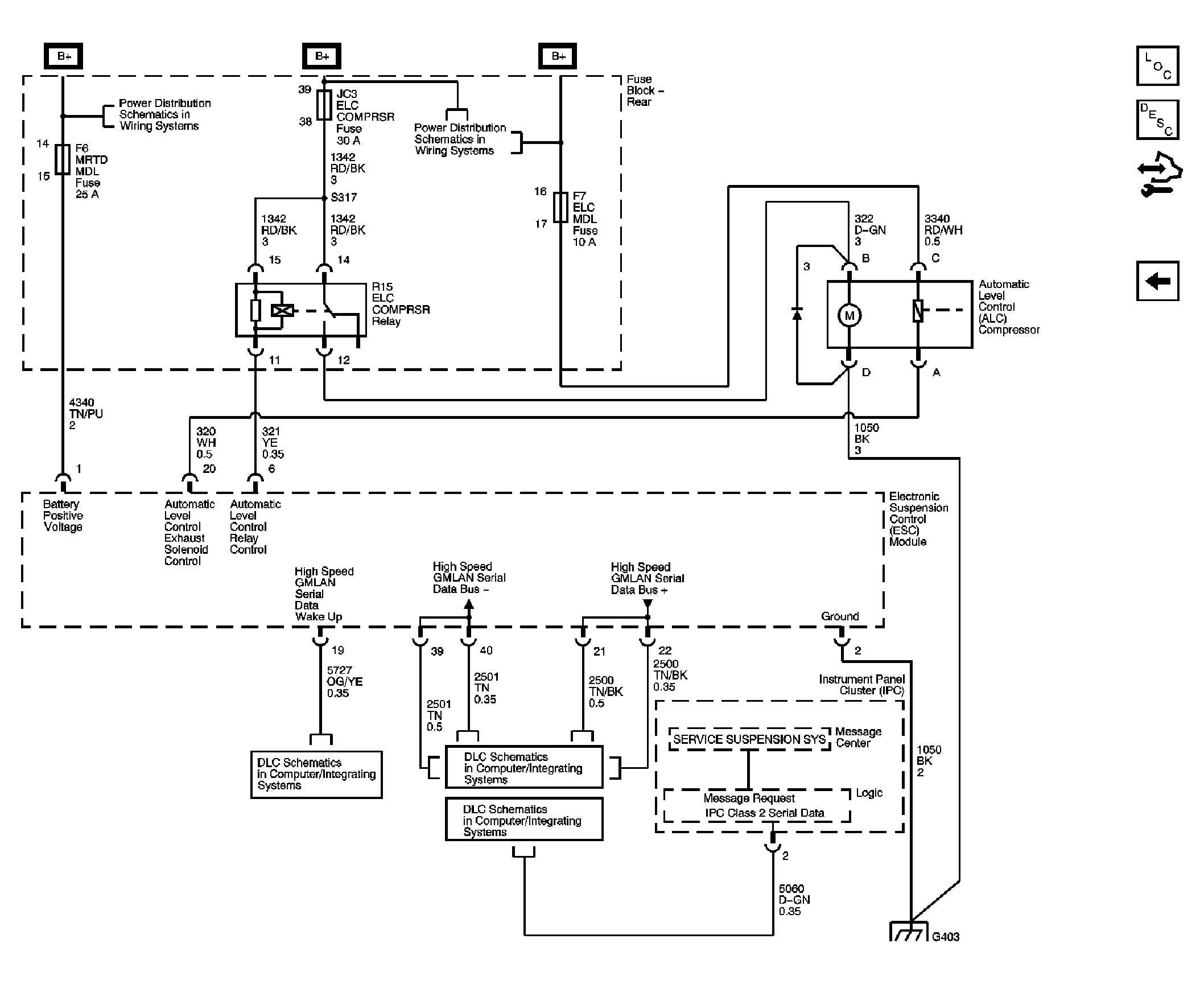

Fig 1: Automatic Level Control Schematic - FE1, FE3, F41

Courtesy of GENERAL MOTORS CORP.

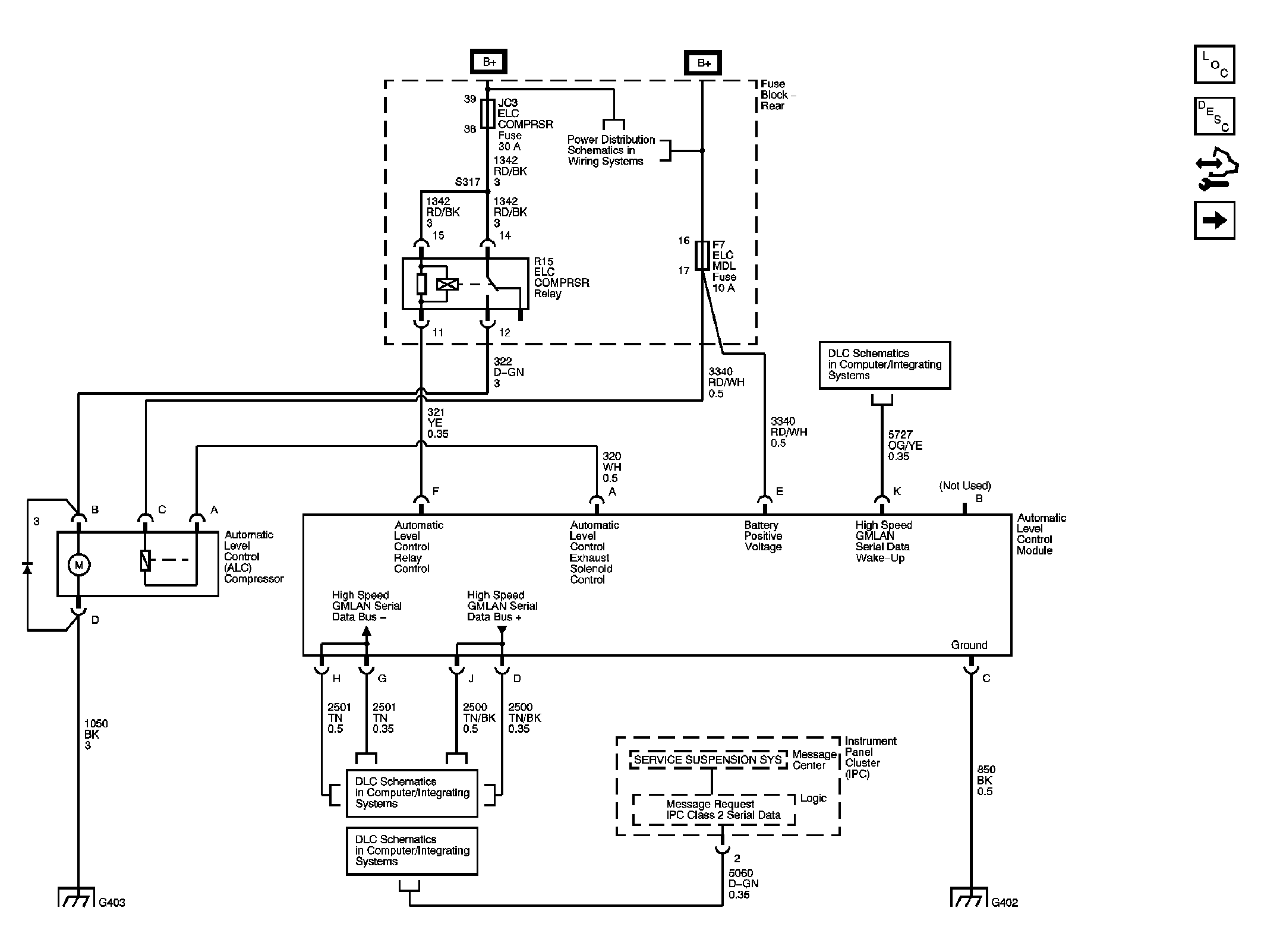

Fig 2: Automatic Level Control Schematic - w/F55

Courtesy of GENERAL MOTORS CORP.
