Exterior Lights Schematics

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

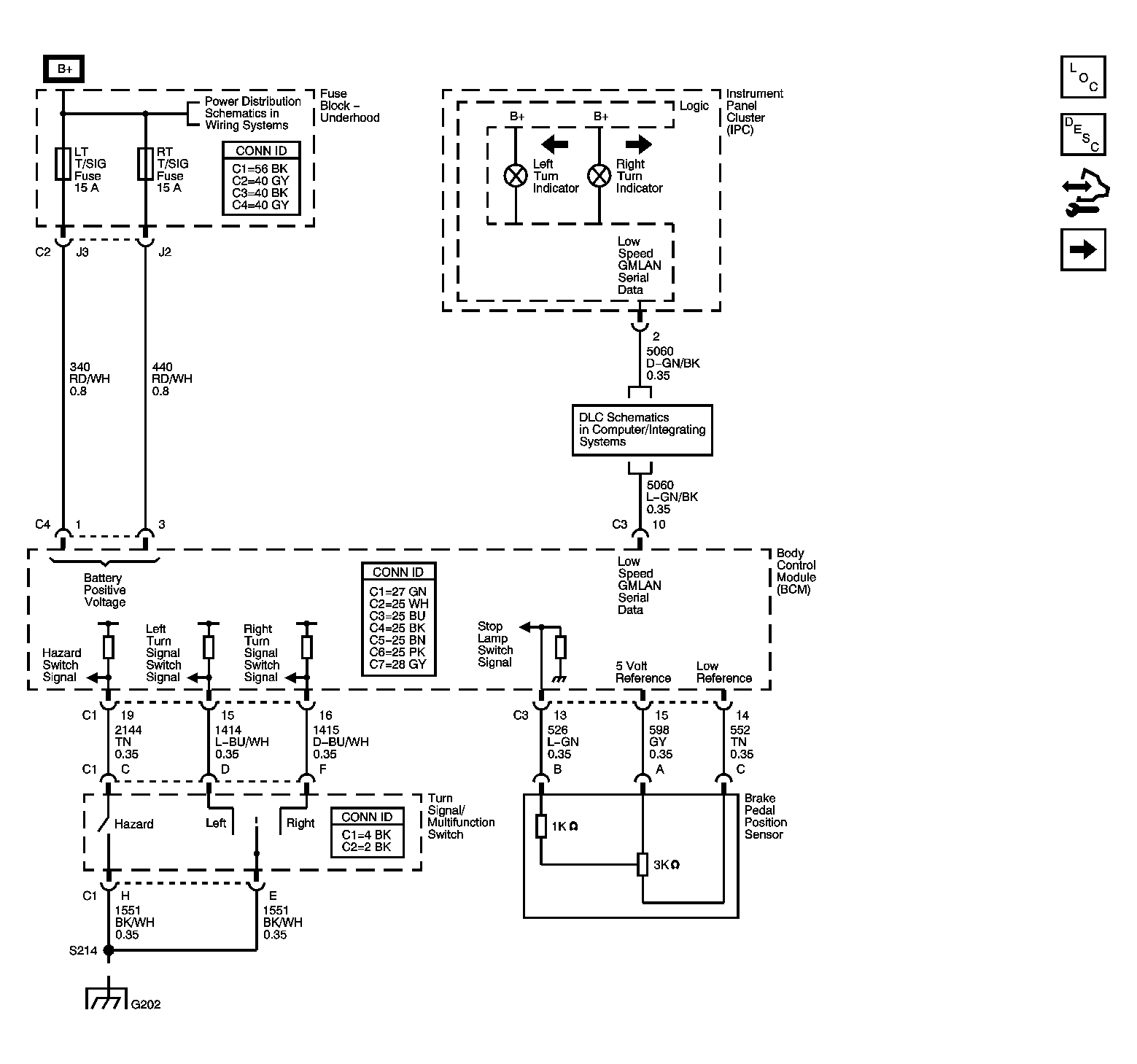

Fig 1: Turn Signal, Hazard, And Stop Lamps Inputs - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

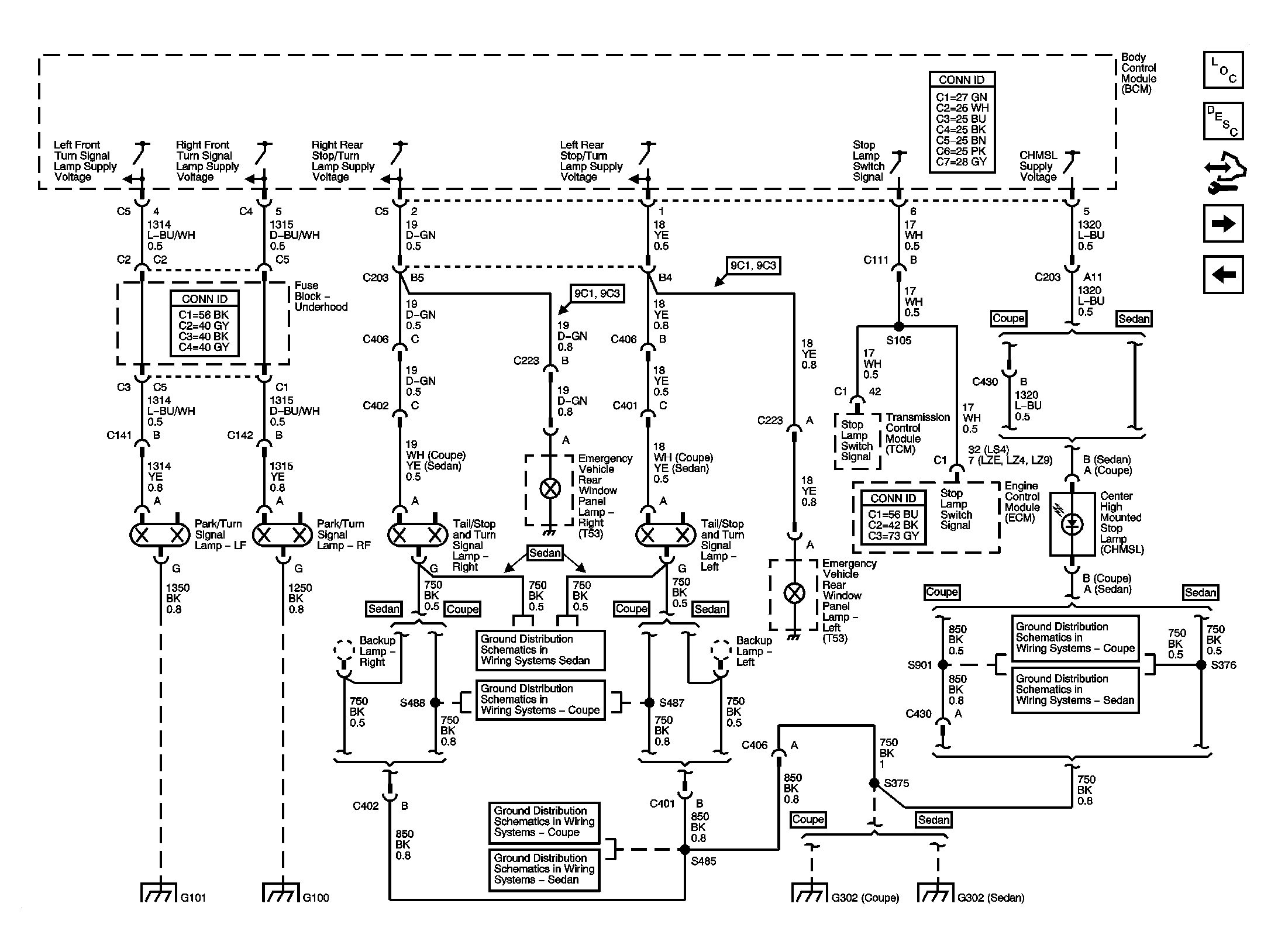

Fig 2: Turn Signal, Hazard, And Stop Lamps Outputs - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

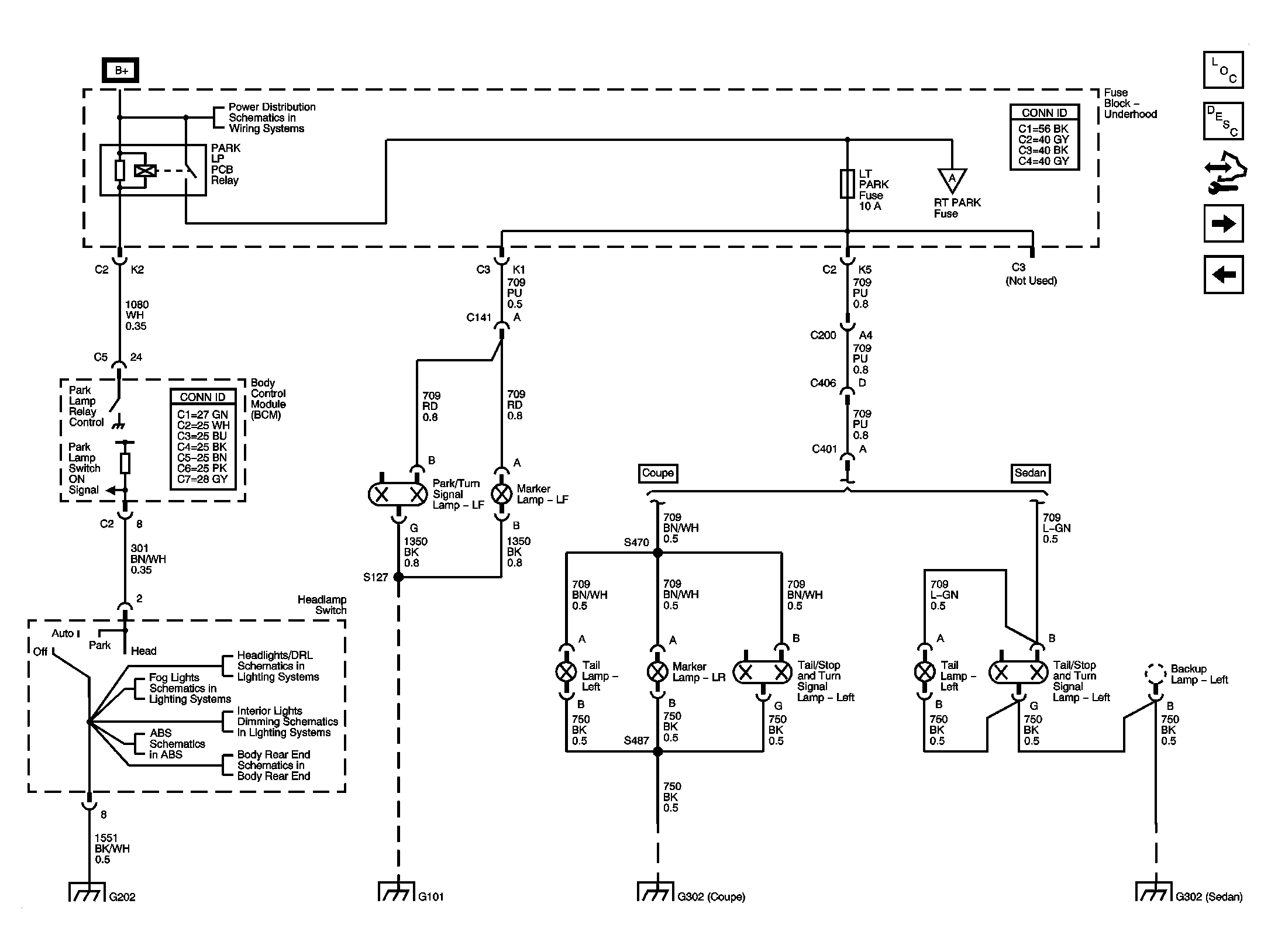

Fig 3: Park Lamps - Wiring Diagram (1 of 2)

Courtesy of GENERAL MOTORS CORP.

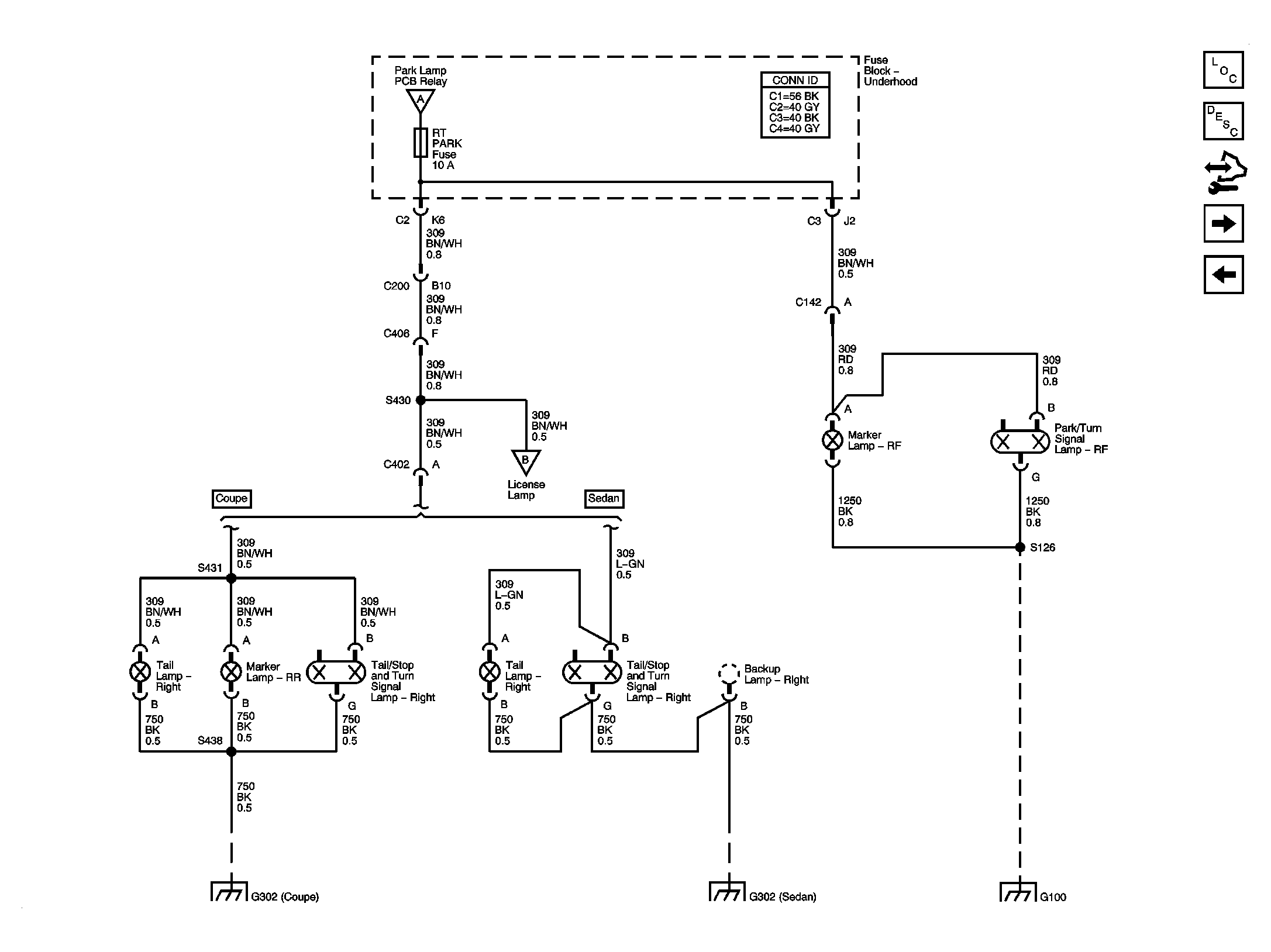

Fig 4: Park Lamps - Wiring Diagram (2 of 2)

Courtesy of GENERAL MOTORS CORP.

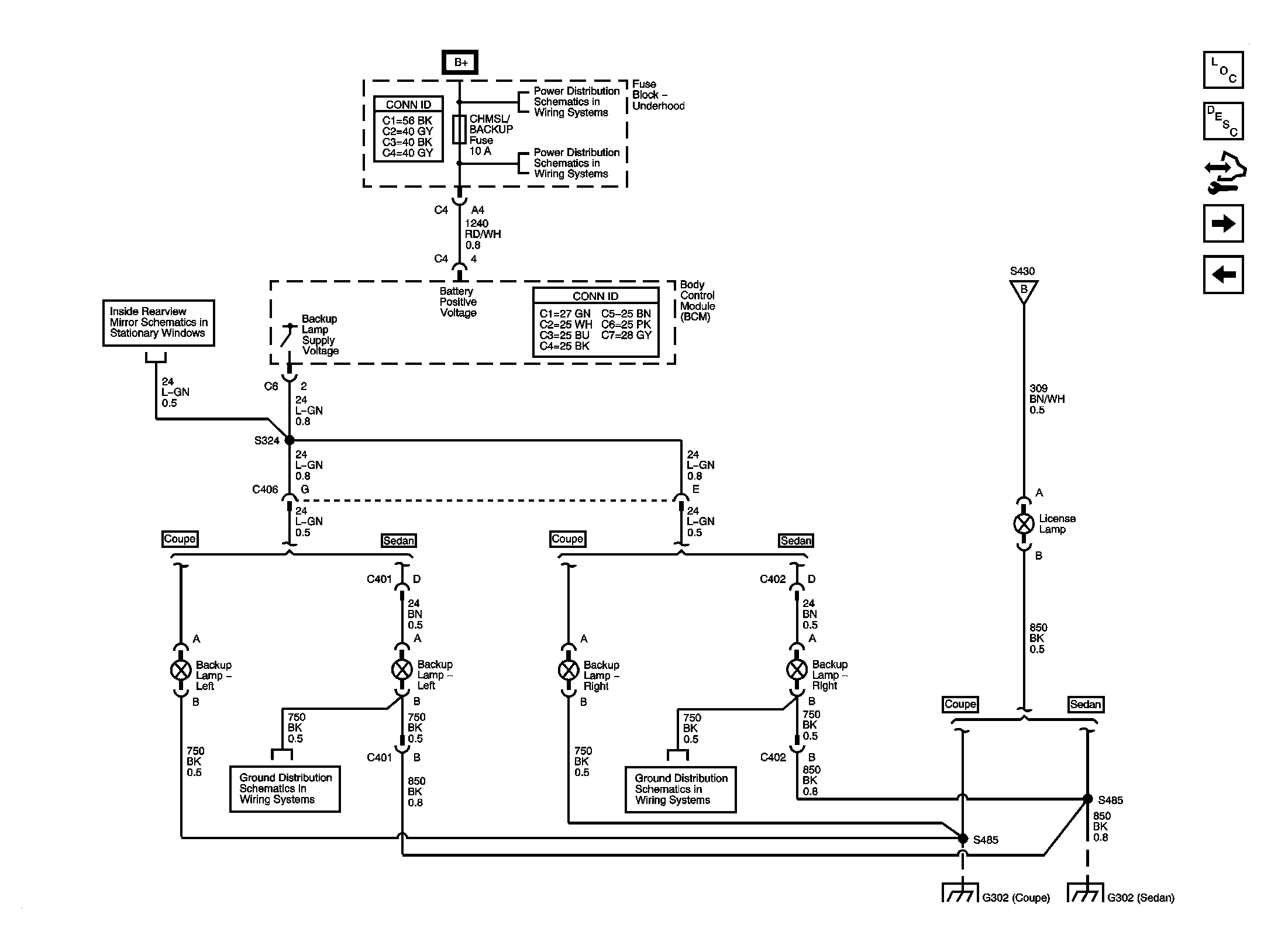

Fig 5: Backup, And License Lamps - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

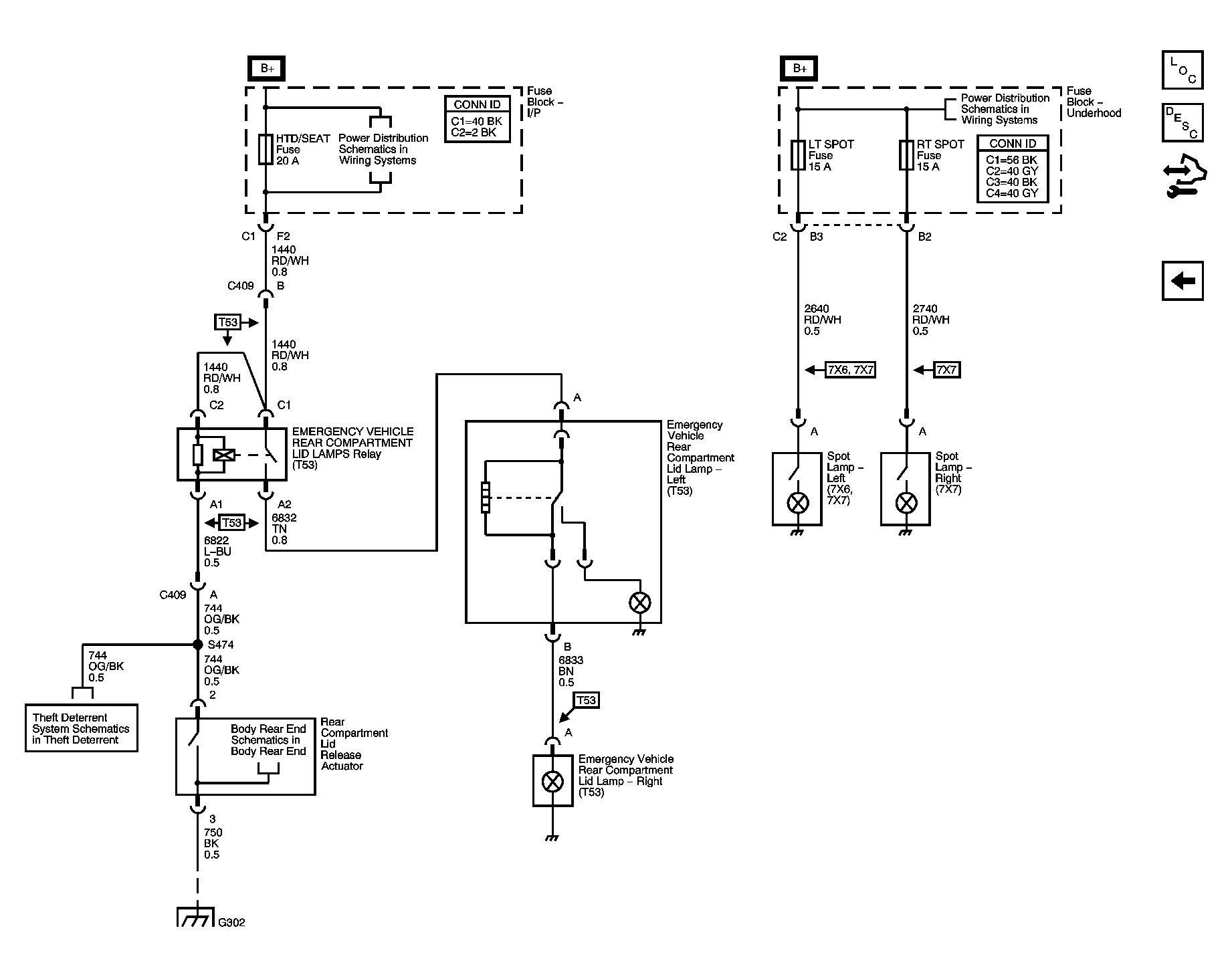

Fig 6: Emergency Vehicle Rear Compartment Lid Lamps, And Spot Lamps - T53, 7X6, 7X7 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
