Rear License Lamp Replacement (Impala)

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

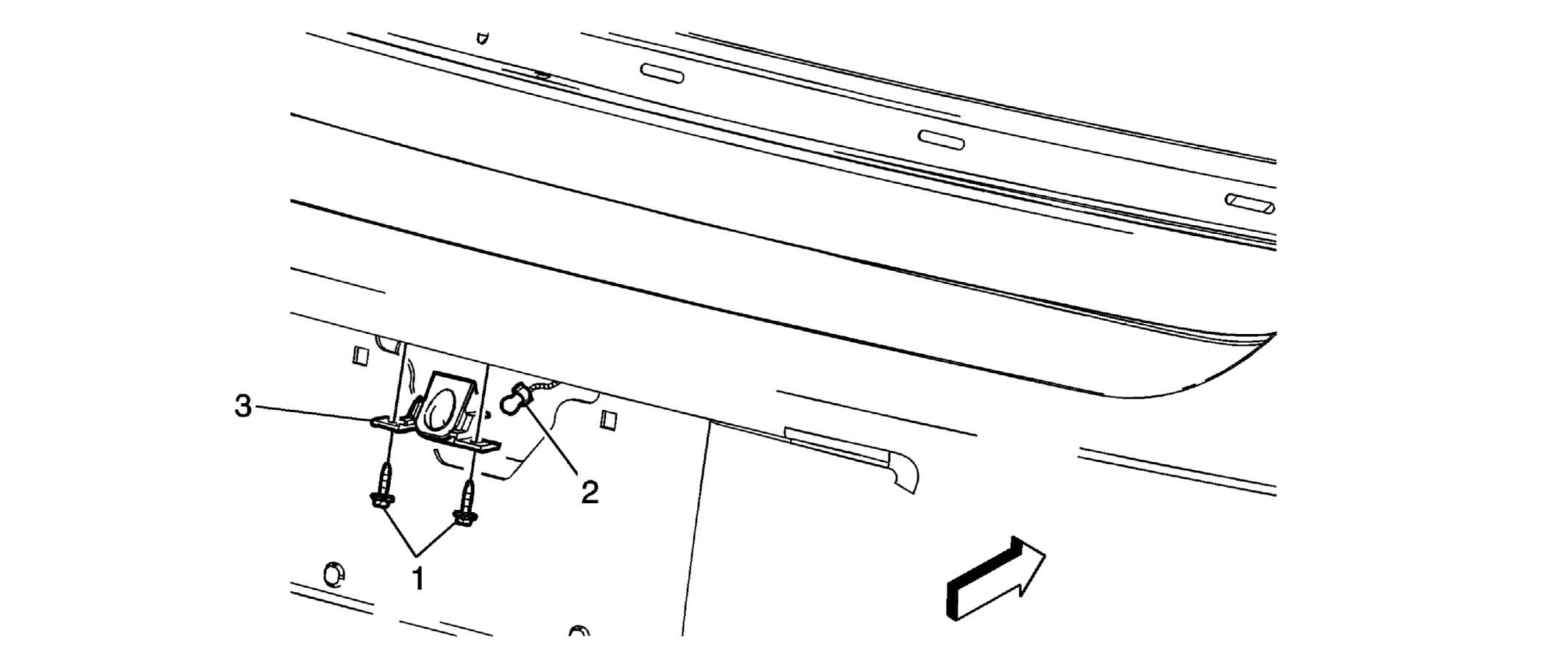

Fig 1: Replacing Rear License Lamp

Courtesy of GENERAL MOTORS CORP.

License Lamp Replacement (Impala)

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screws, Rear License Plate Lamp (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Lamp, Rear License Tip Pull downward on the lamp in order to access the lamp electrical connector on the inside of the rear bumper fascia. Twist the connector socket counterclockwise in order to remove from the lamp housing. Pull the bulb outward to remove from the socket.
3	Lens, Rear License Plate Tip: Snap lens into outer rear compartment lid upon installation.
