Seat Back Panel Replacement - Front

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

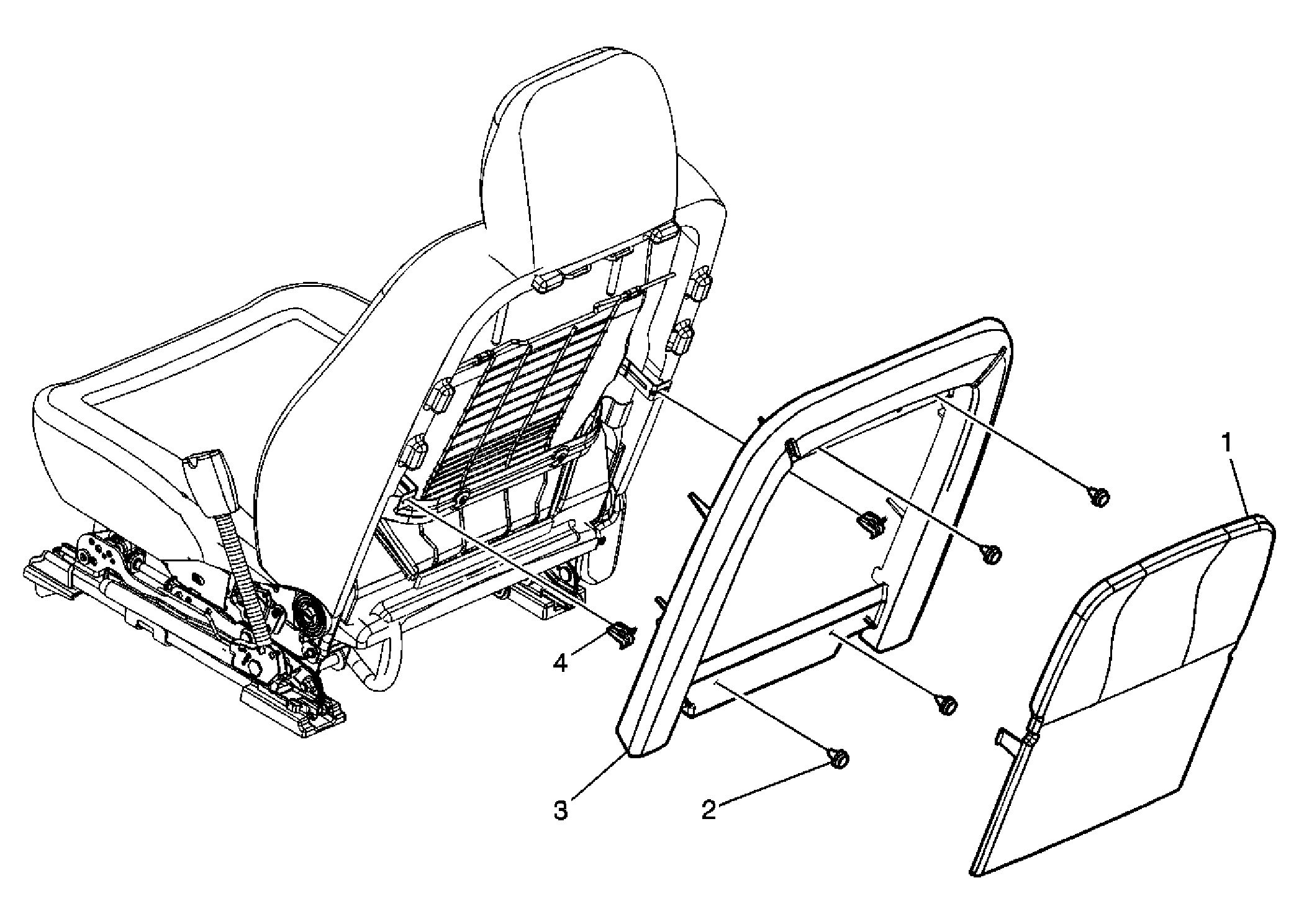

Fig 1: Seat Back Panel - Front
GM1541233Courtesy of GENERAL MOTORS CORP.
Seat Back Panel Replacement - Front

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Pocket, Seat Back Cushion
2 Retainer, Seat Back Cushion Pocket (Qty: 4)
3 Panel, Seat Back Cushion
Tip:  Pull from the bottom edge of the panel to remove.
4 Retainer Clip, Seat Back Cushion Panel (Qty: 2)
