Automatic Transmission Shift Lock Control Solenoid

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

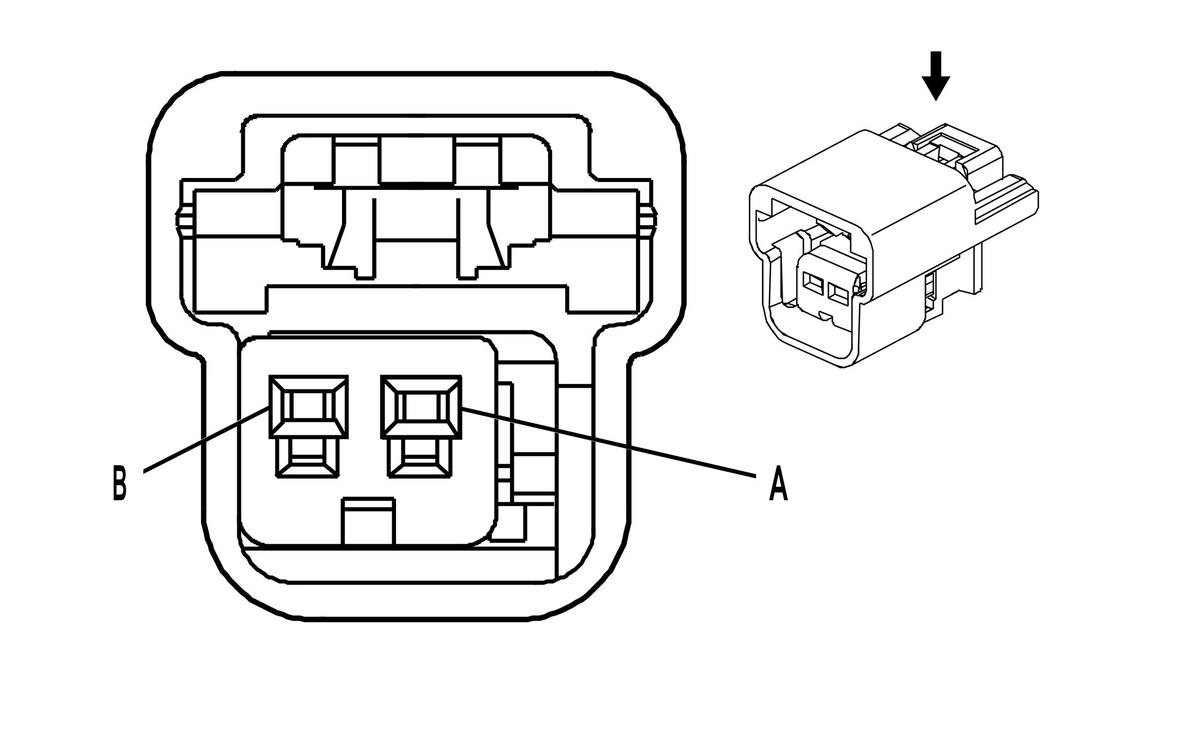

Fig 1: Automatic Transmission Shift Lock Control Solenoid Connector End View
GM1385747Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Shift Lock Control Solenoid

Pin Wire Circuit Function
A 0.35 D-GN/WH 1135 A/T Shift Lock Control Solenoid Supply Voltage
B 0.35 BK 1150 Ground
Connector Part Information
  • OEM: 15332129
  • Service: See Catalog
  • Description: 2-Way F GT 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
