Removal Procedure

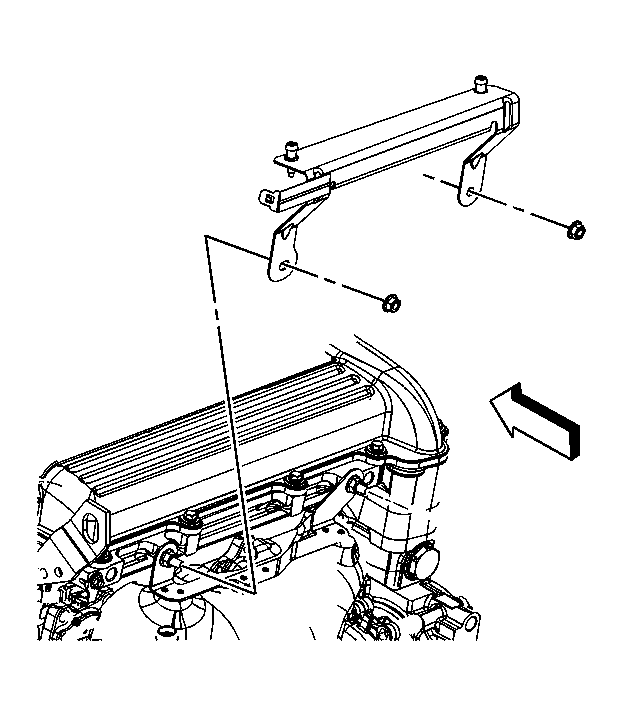

    Fig 1: Air Cleaner Bracket
    GM1631385Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement orAir Cleaner Assembly Replacement .
  2. Remove the air cleaner bracket nuts.
  3. Remove the air cleaner bracket.
    4. Fig 2: Identifying Exhaust Manifold Heat Shield
    GM1631387Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold heat shield studs (2).
  5. Remove the exhaust manifold heat shield (1).
