Mirror Component Views
Courtesy of GENERAL MOTORS CORP.

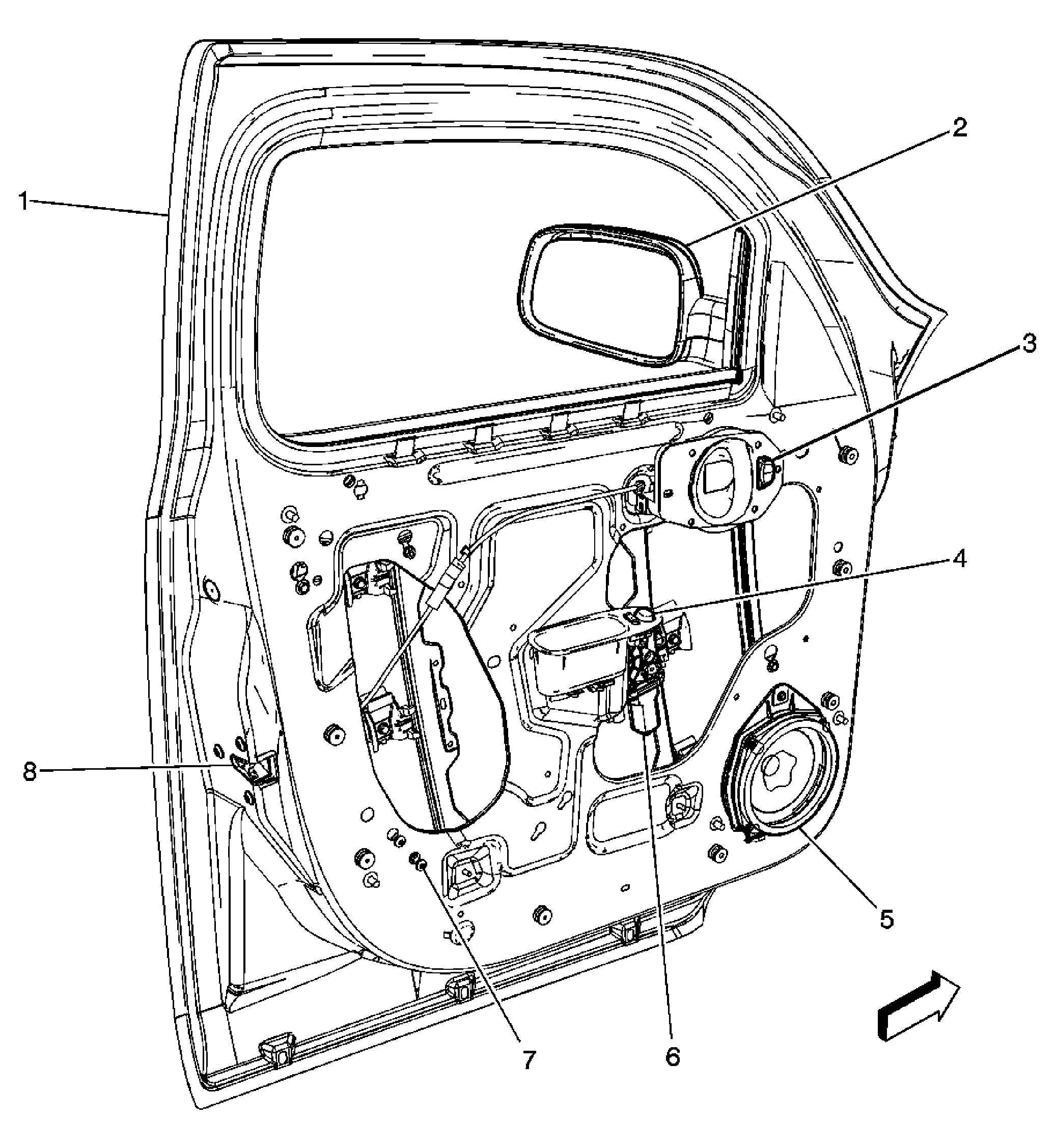

| Callout |
Component Name |
| 1 |
Door Frame |
| 2 |
Outside Rearview Mirror Motor - Driver |
| 3 |
Door Lock Switch - Driver |
| 4 |
Outside Rearview Mirror Switch |
| 5 |
Speaker - LF Door |
| 6 |
Window Motor - Driver |
| 7 |
Inflatable Restraint Side Impact Sensor (SIS) Left (ASF) |
| 8 |
Door Latch - Driver |
Courtesy of GENERAL MOTORS CORP.

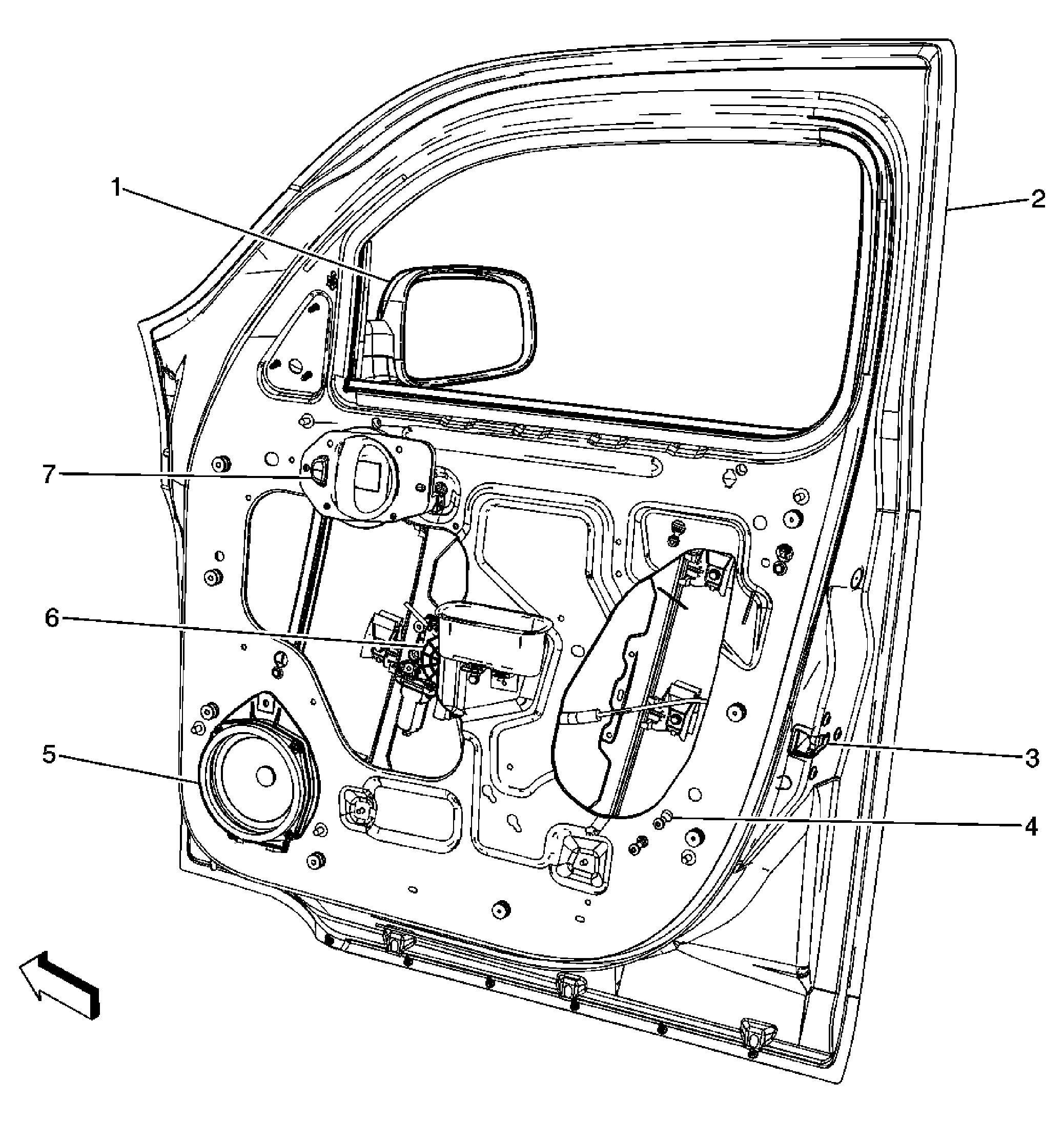

| Callout |
Component Name |
| 1 |
Outside Rearview Mirror Motor - Passenger |
| 2 |
Door Frame |
| 3 |
Door Latch - Passenger |
| 4 |
Inflatable Restraint Side Impact Sensor (SIS) Right (ASF) |
| 5 |
Speaker - RF Door |
| 6 |
Window Motor - Passenger |
| 7 |
Door Lock Switch - Passenger |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Headliner |
| 2 |
Dome Lamp |
| 3 |
Cellular Microphone (UE1) |
| 4 |
Onstar Button Assembly (UE1) |
| 5 |
Inside Rearview Mirror |
| 6 |
Sunroof Switch (CF5) |
| 7 |
Console Flood Lamp |
