Fluid Pump, A/T

Oil Pump

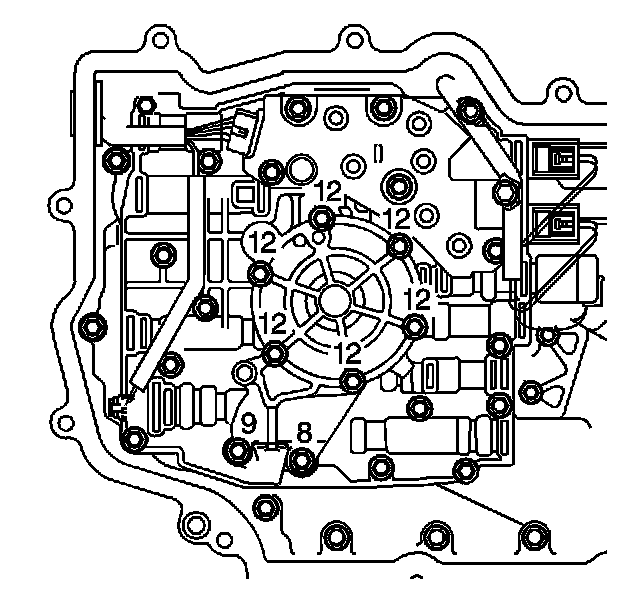

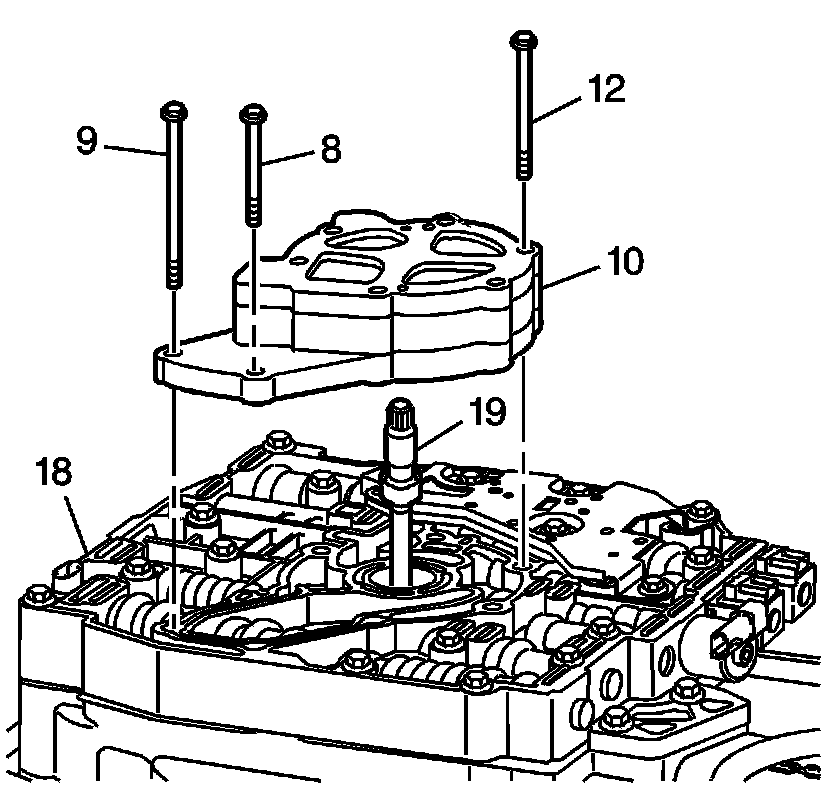

Install the eight oil pump bolts (8, 9, 12). Hand start the bolts.
Tighten the bolts to 12 N.m (9 lb ft).
