Underhood Fuse Block



Fuse Block - Underhood Label:

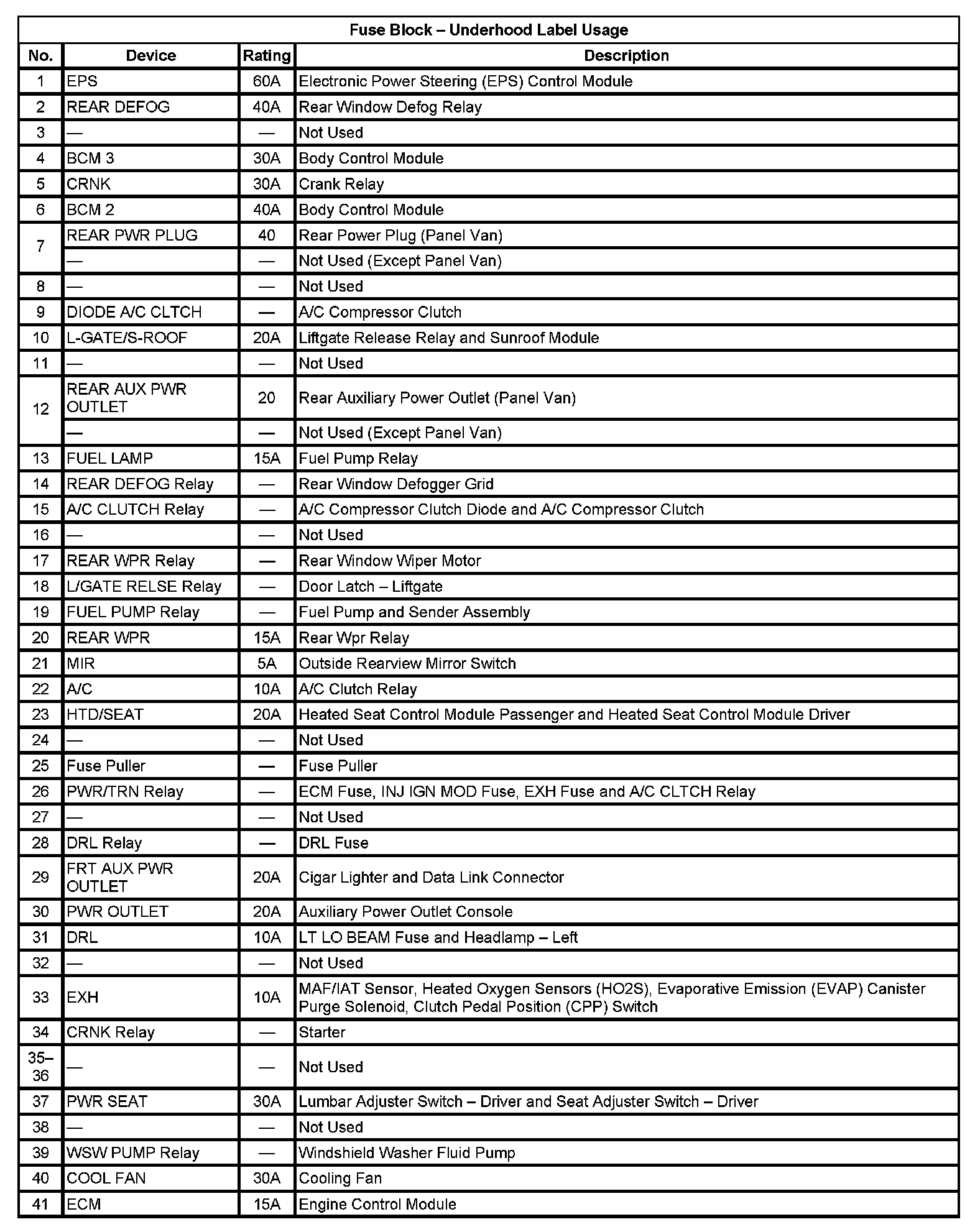

Fuse Block - Underhood Label Usage (Pin 1 To 41):

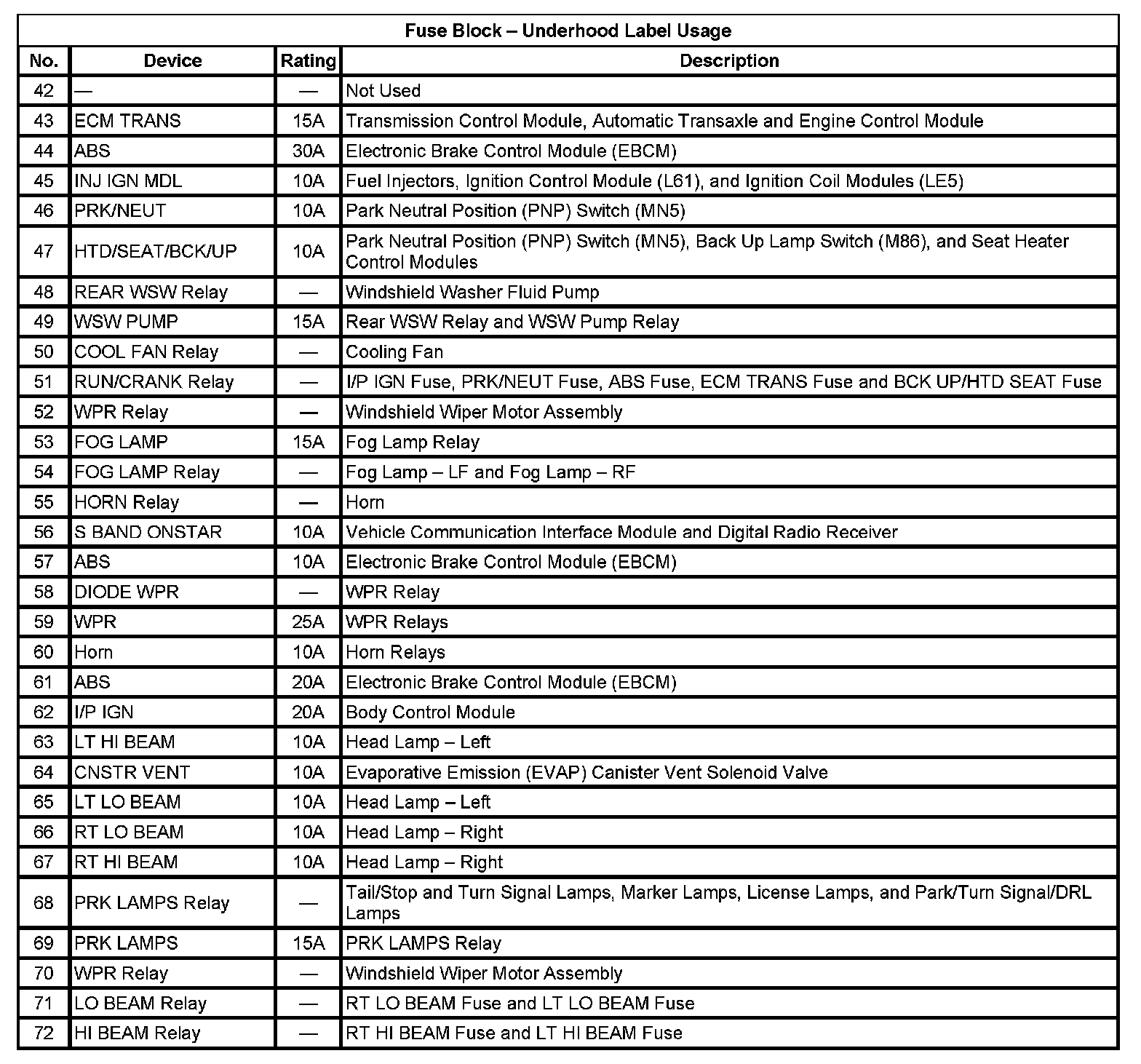

Fuse Block - Underhood Label Usage (Pin 42 To 72):
