Rear Access Panel (Panel Van) Fuse Block

Fuse Block - Rear Access Panel Top View (Panel Van):



Fuse Block - Rear Access Panel (Wire Entry) (Panel Van):

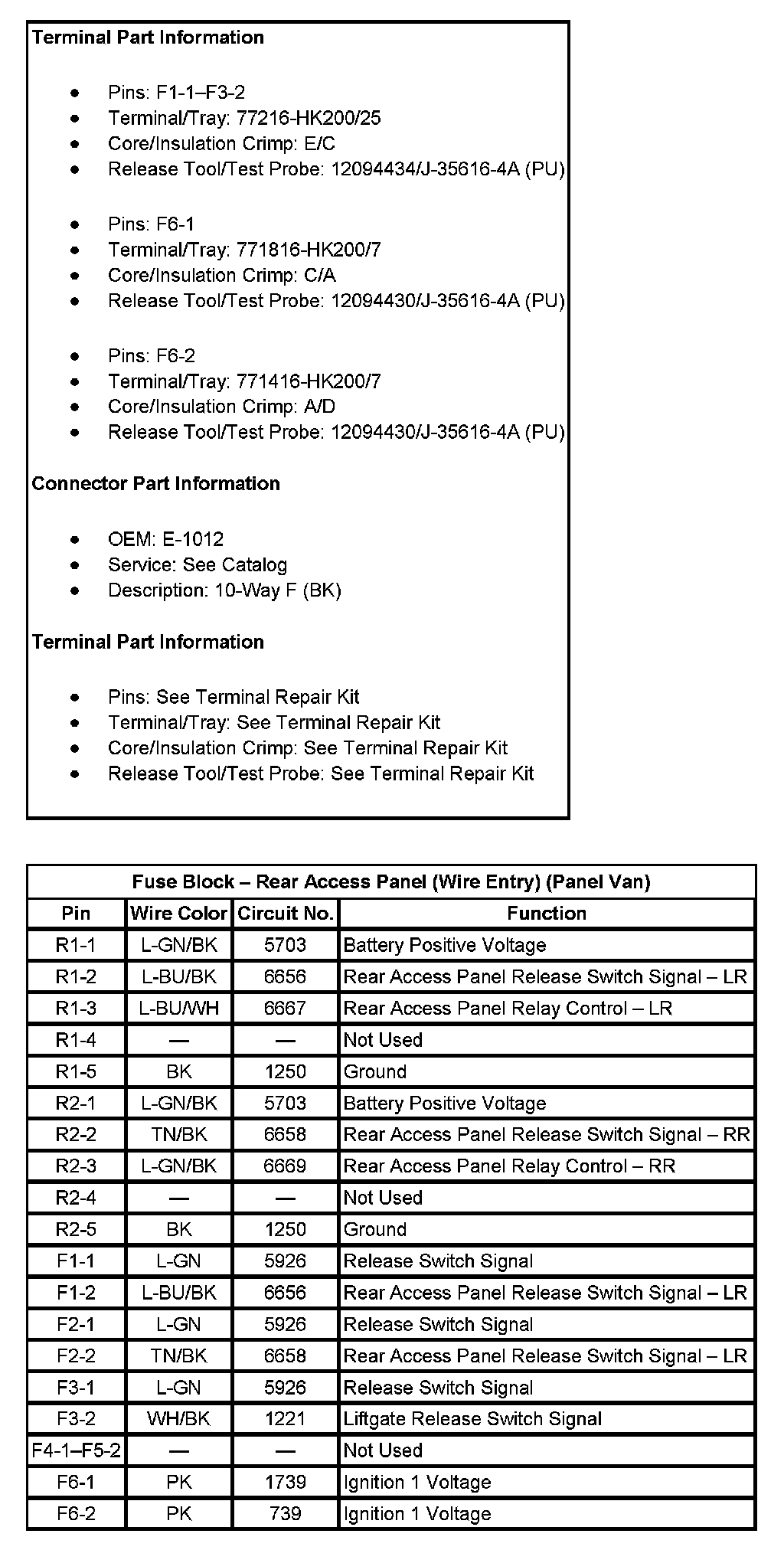

Fuse Block - Rear Access Panel (Wire Entry) (Panel Van) (Pin R1-1 To F6-2):
