Power Seat Motor

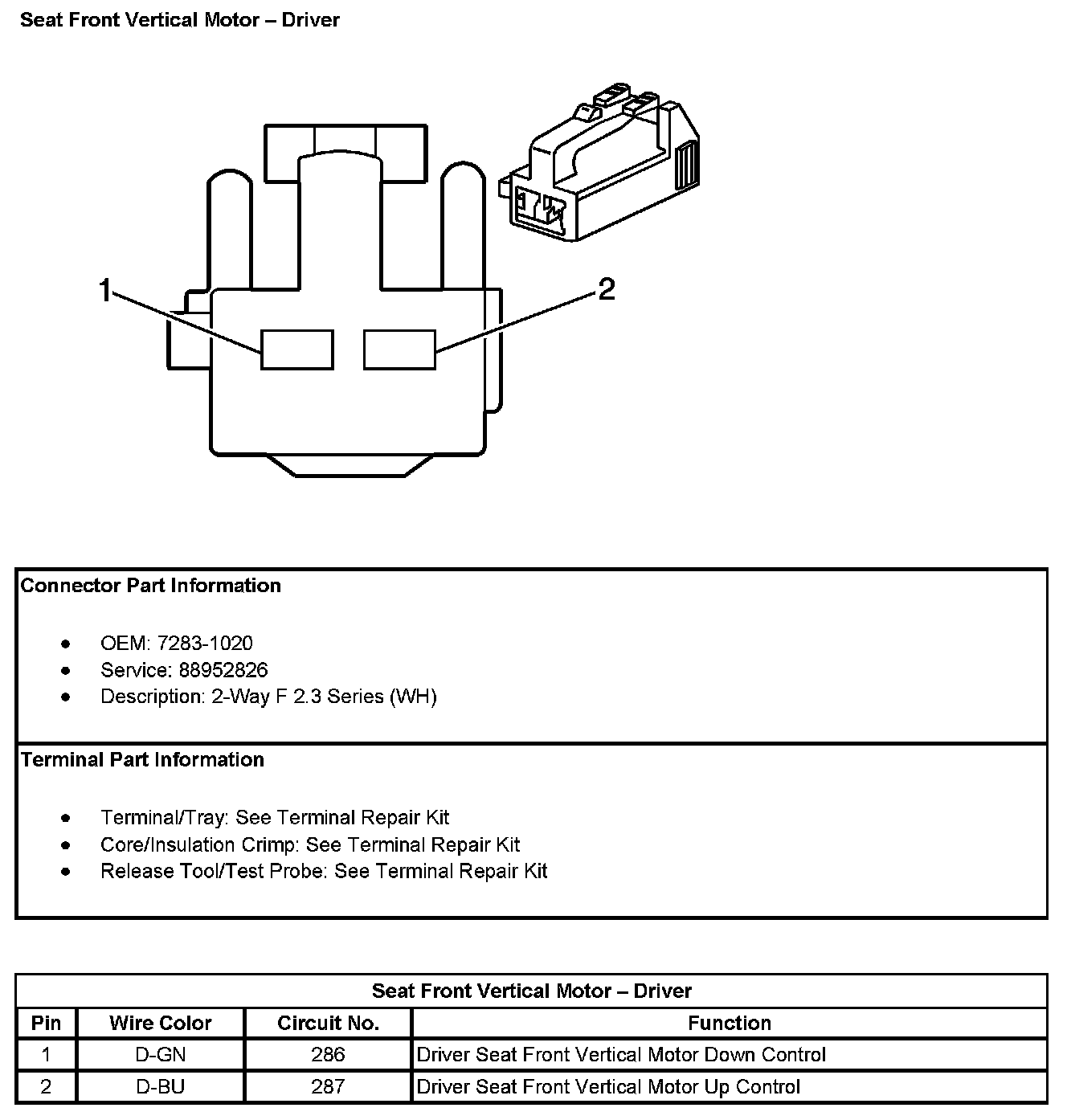

Seat Front Vertical Motor - Driver:

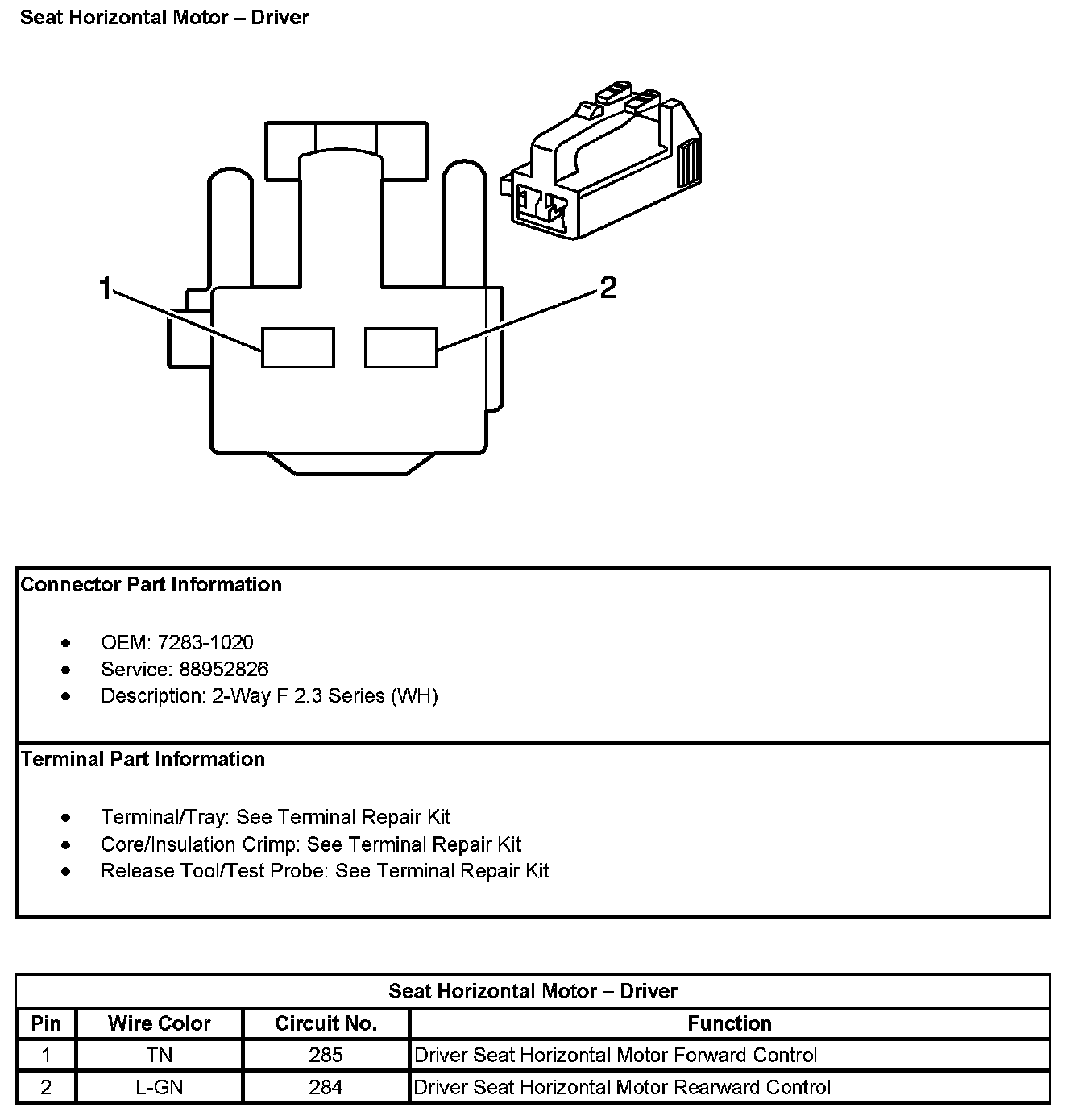

Seat Horizontal Motor - Driver:



Seat Lumbar Motor - Driver:



Seat Rear Vertical Motor - Driver:
