Power Door Lock Switch

Door Lock Switch - Driver:



Door Lock Switch - Passenger:



Driver Rear Access Panel Switch - Left Rear Panel (Panel Van):

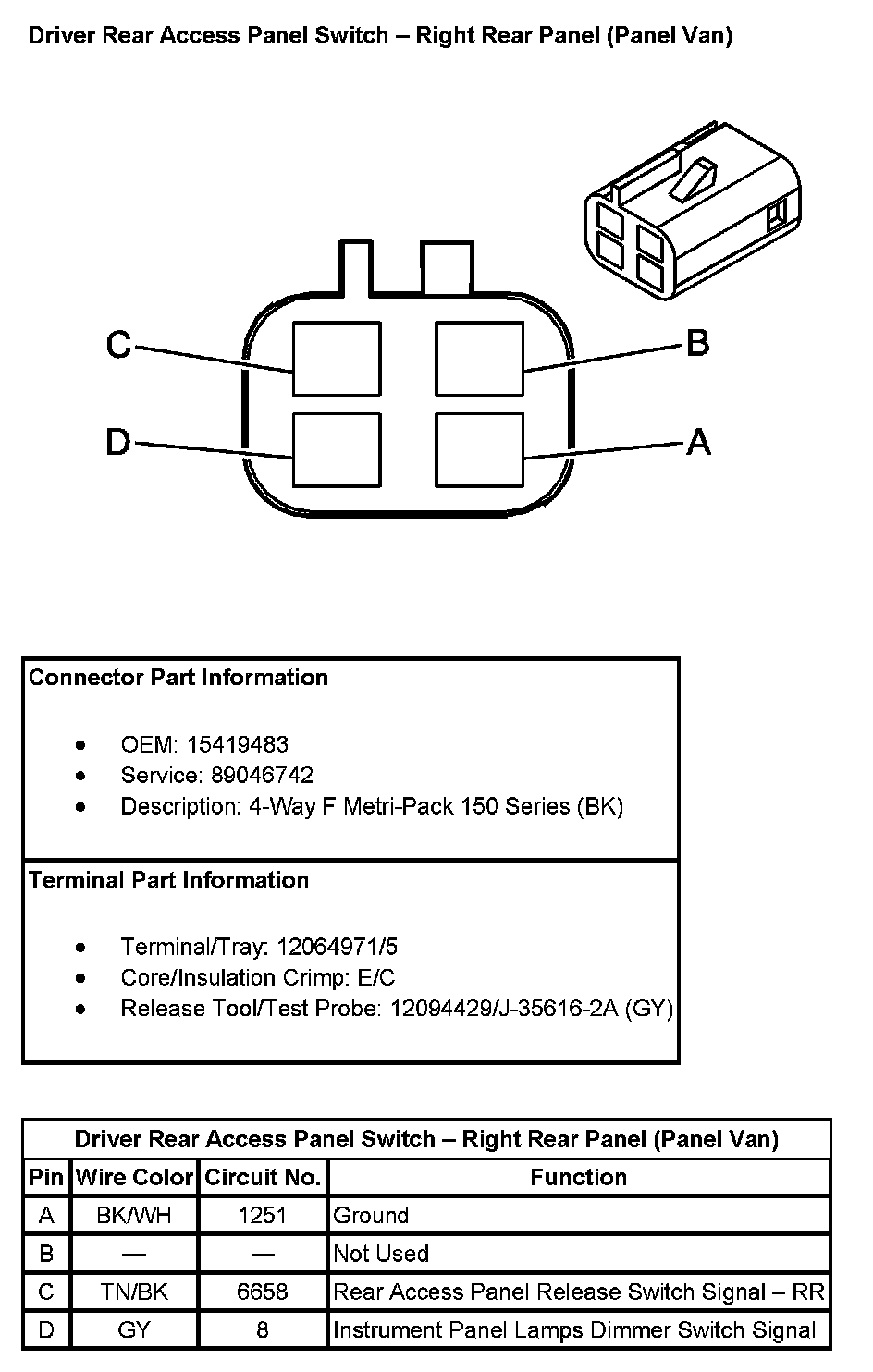

Driver Rear Access Panel Switch - Right Rear Panel (Panel Van):



Liftgate Release Switch:
