Front Door Latch

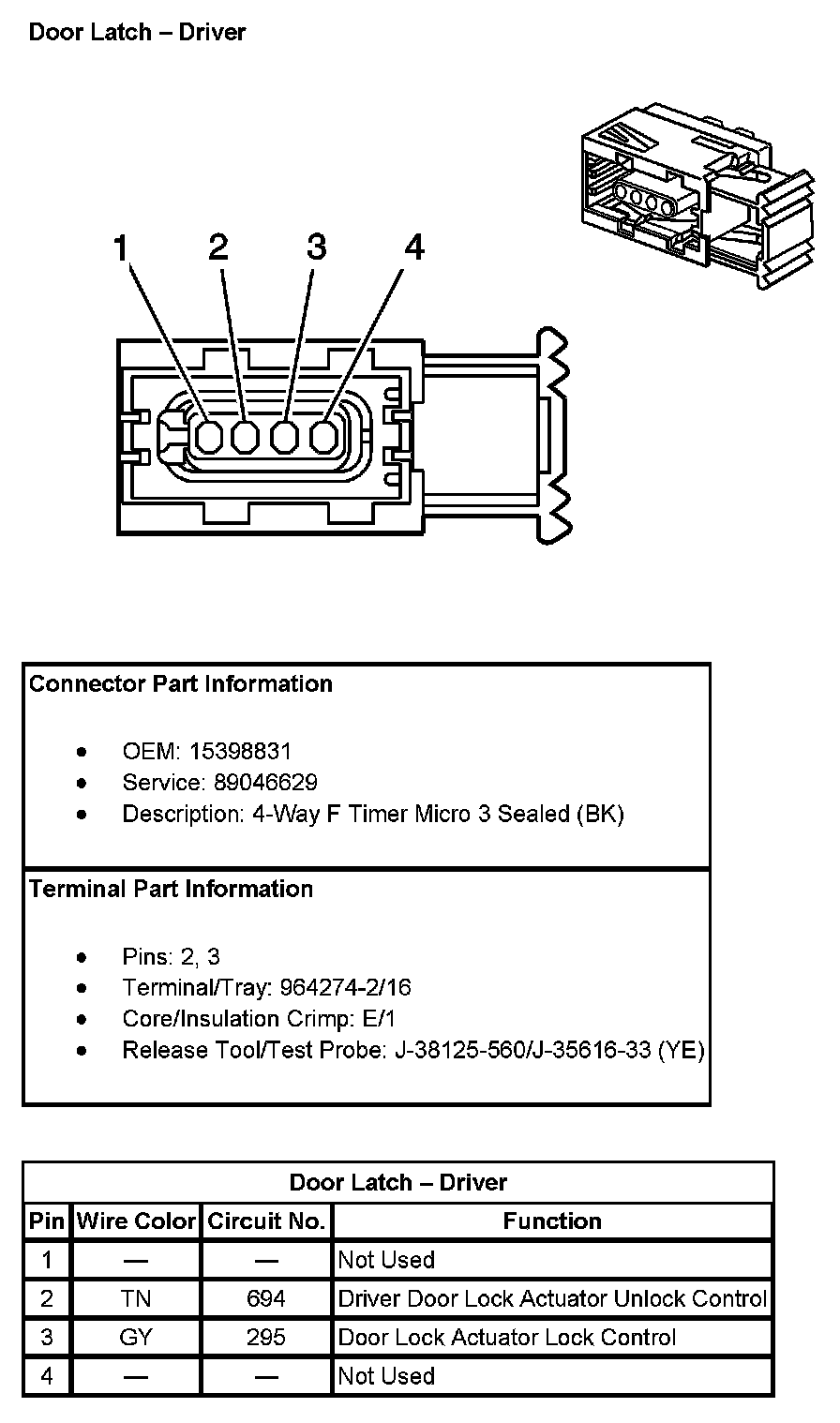

Door Latch - Driver:

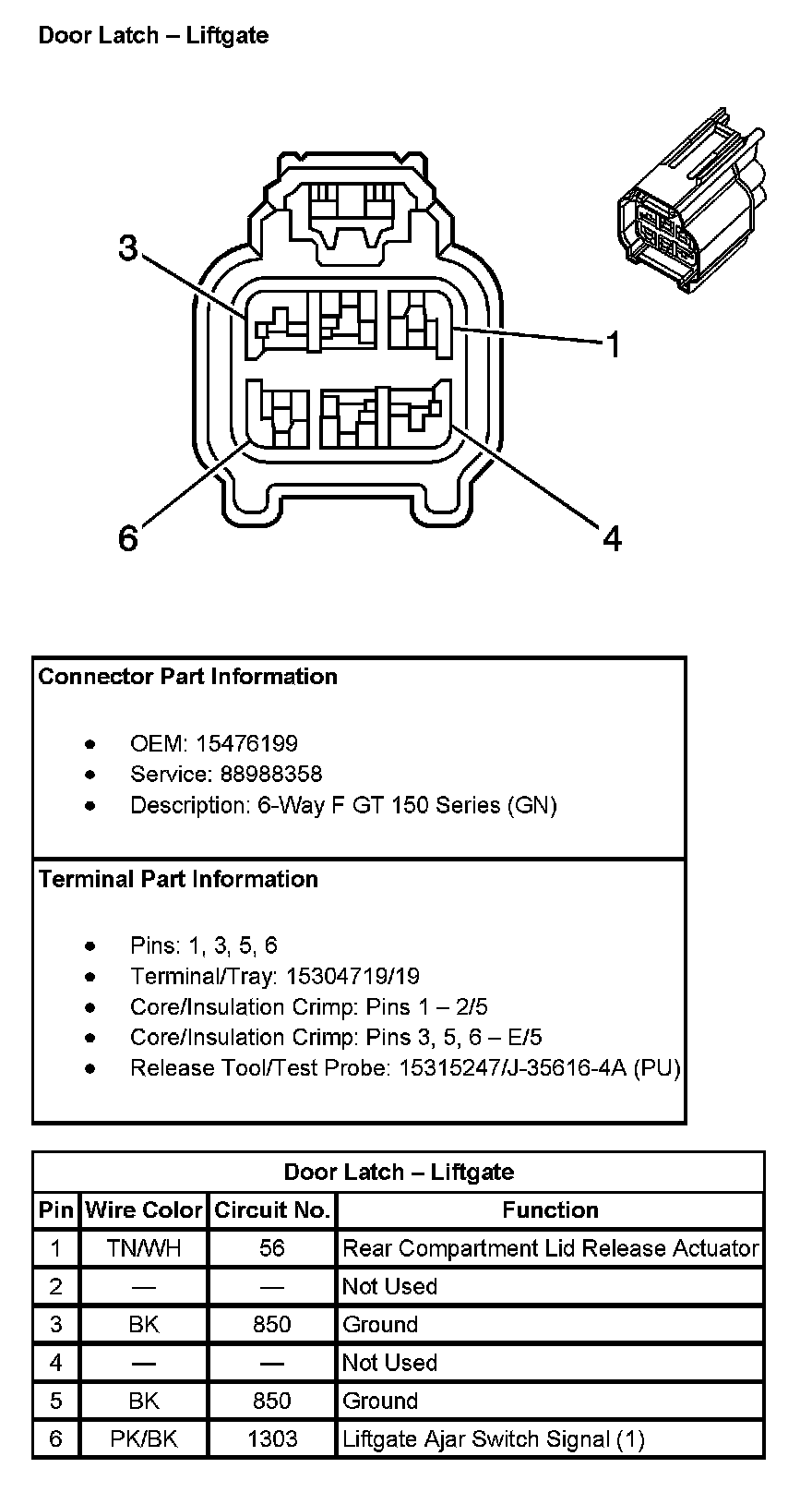

Door Latch - Liftgate:

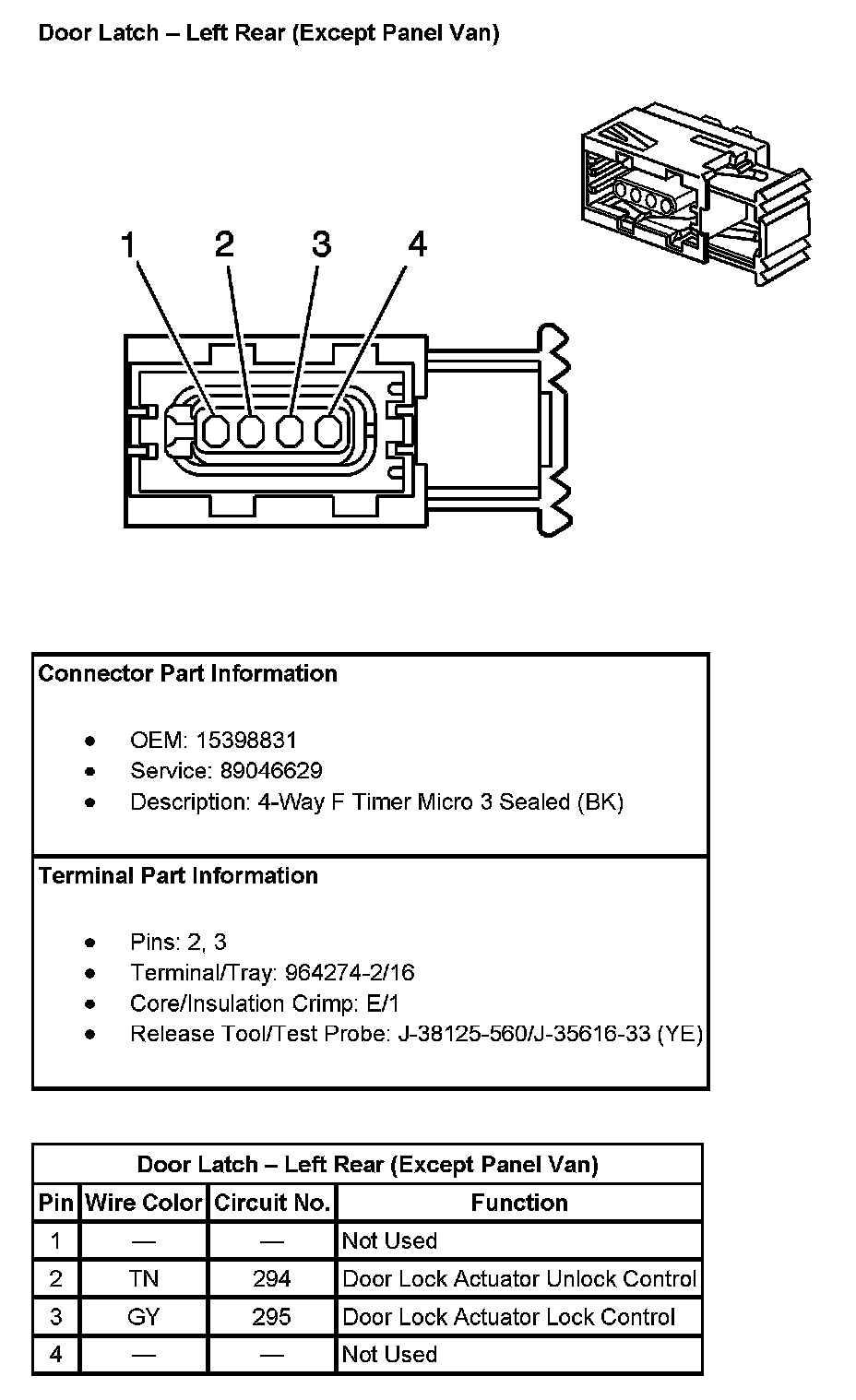

Door Latch - Left Rear (Except Panel Van):

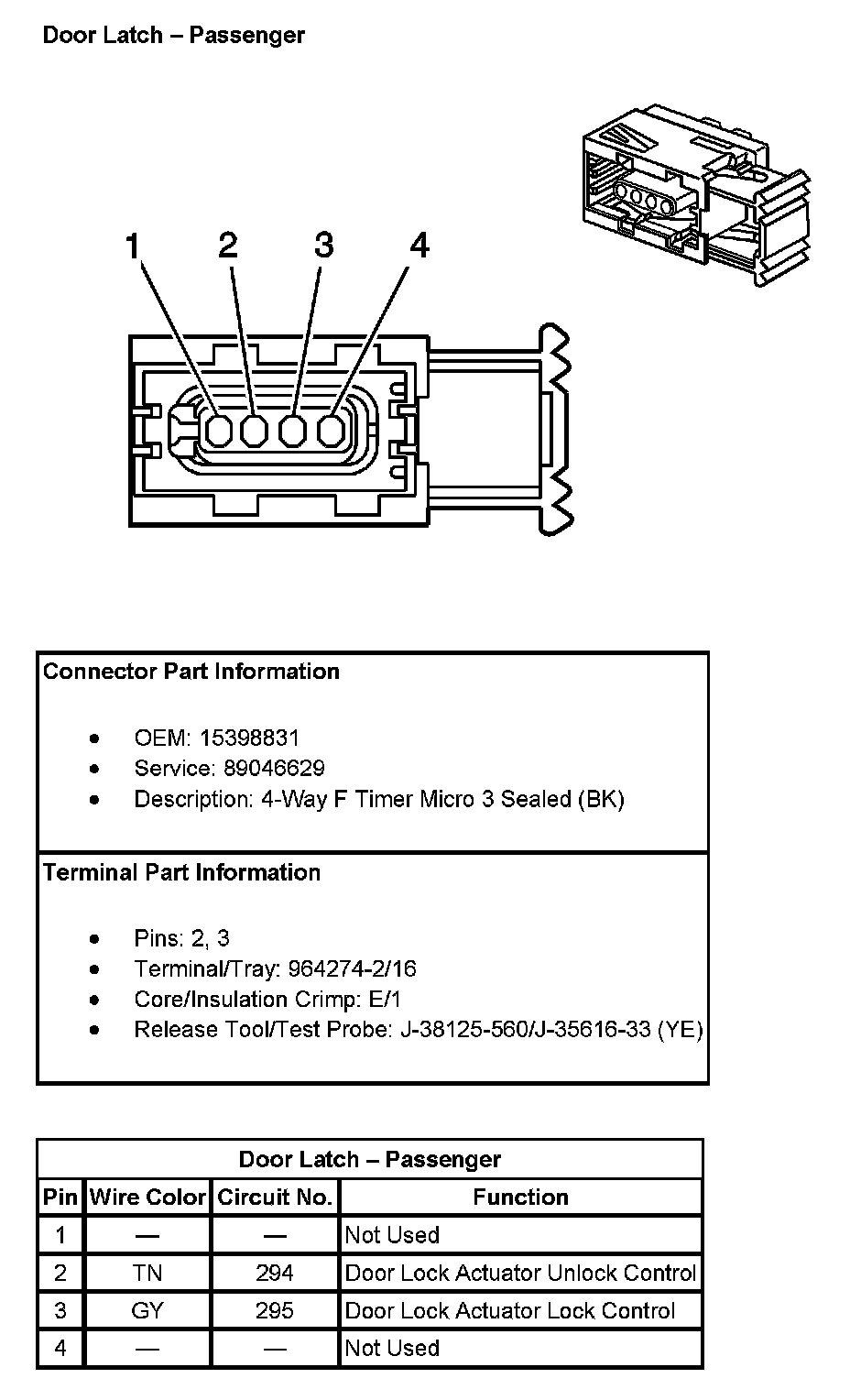

Door Latch - Passenger:

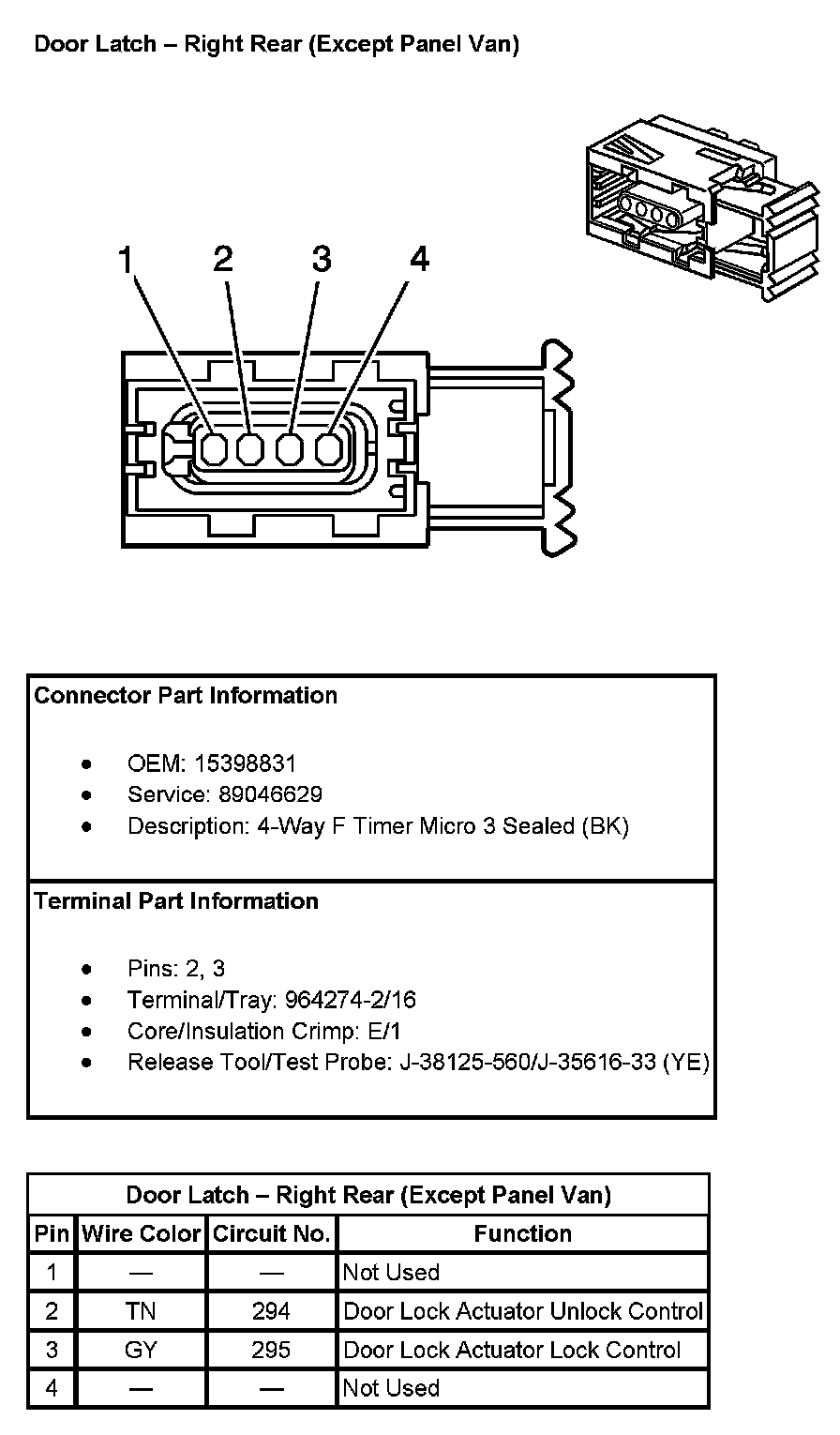

Door Latch - Right Rear (Except Panel Van):
