Remote Function Component Views

Remote Function Component Views

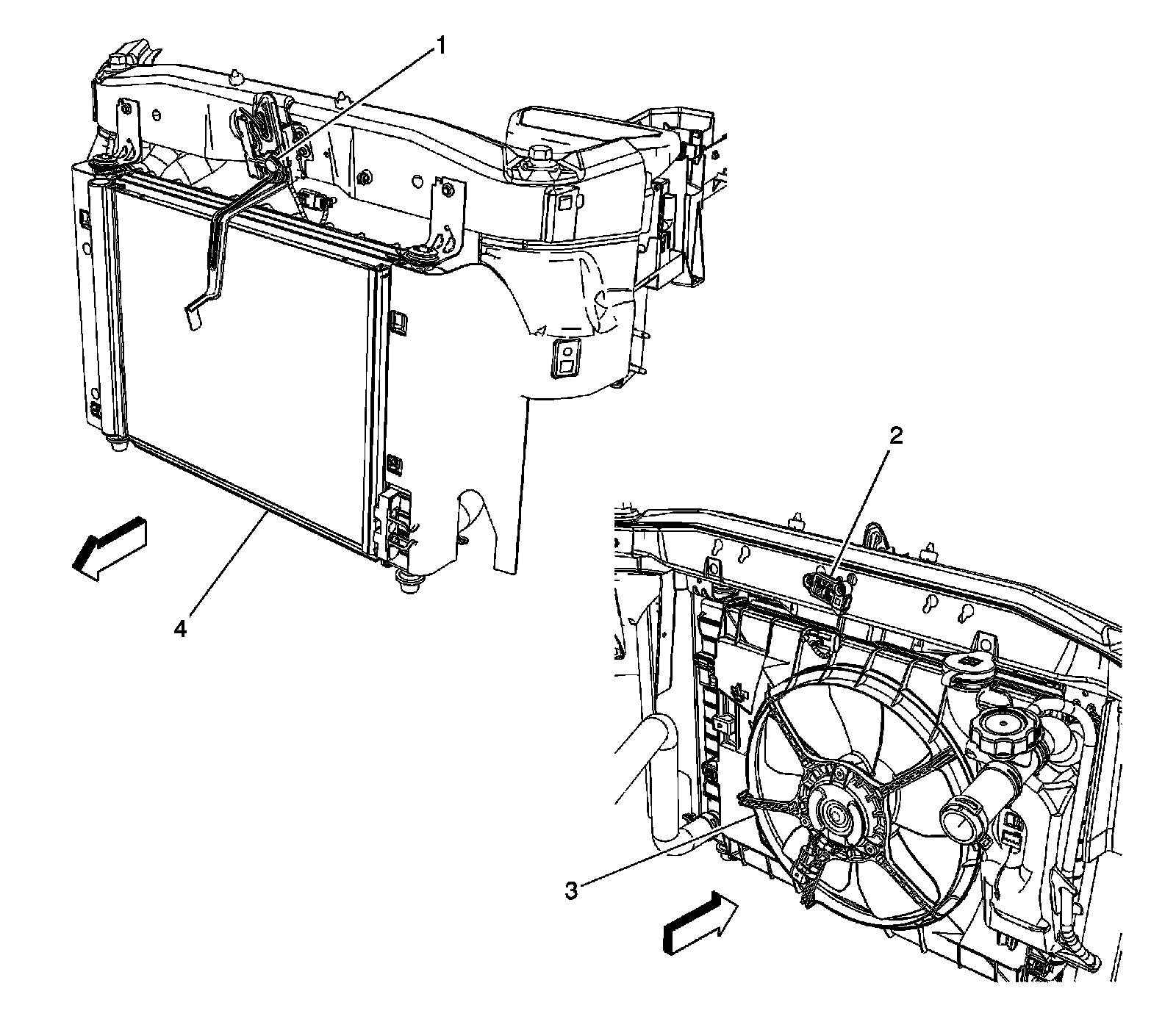

Front of the Engine Compartment

Front of the Engine Compartment:

1 - Hood Ajar Switch (AP3)
2 - Inflatable Restraint Front End Sensor
3 - Engine Cooling Fan
4 - Radiator

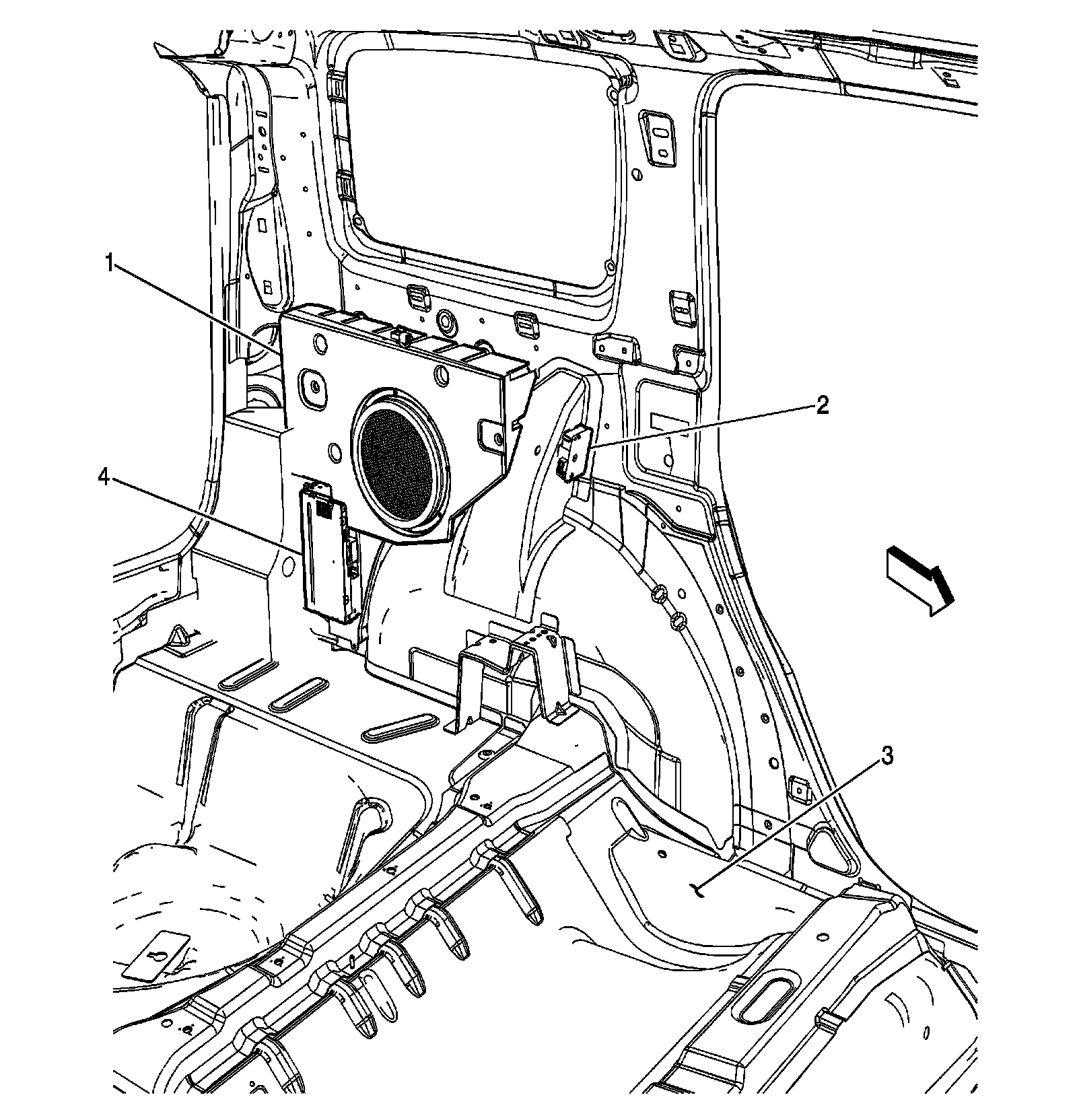

LR of the Passenger Compartment

1 - Speaker - Subwoofer (UQ3)
2 - Remote Control Door Lock Receiver (RCDLR)
3 - Floor Pan
4 - Audio Amplifier (UQ3)
