Crankshaft Position Sensor: Locations

Engine Controls Component Views

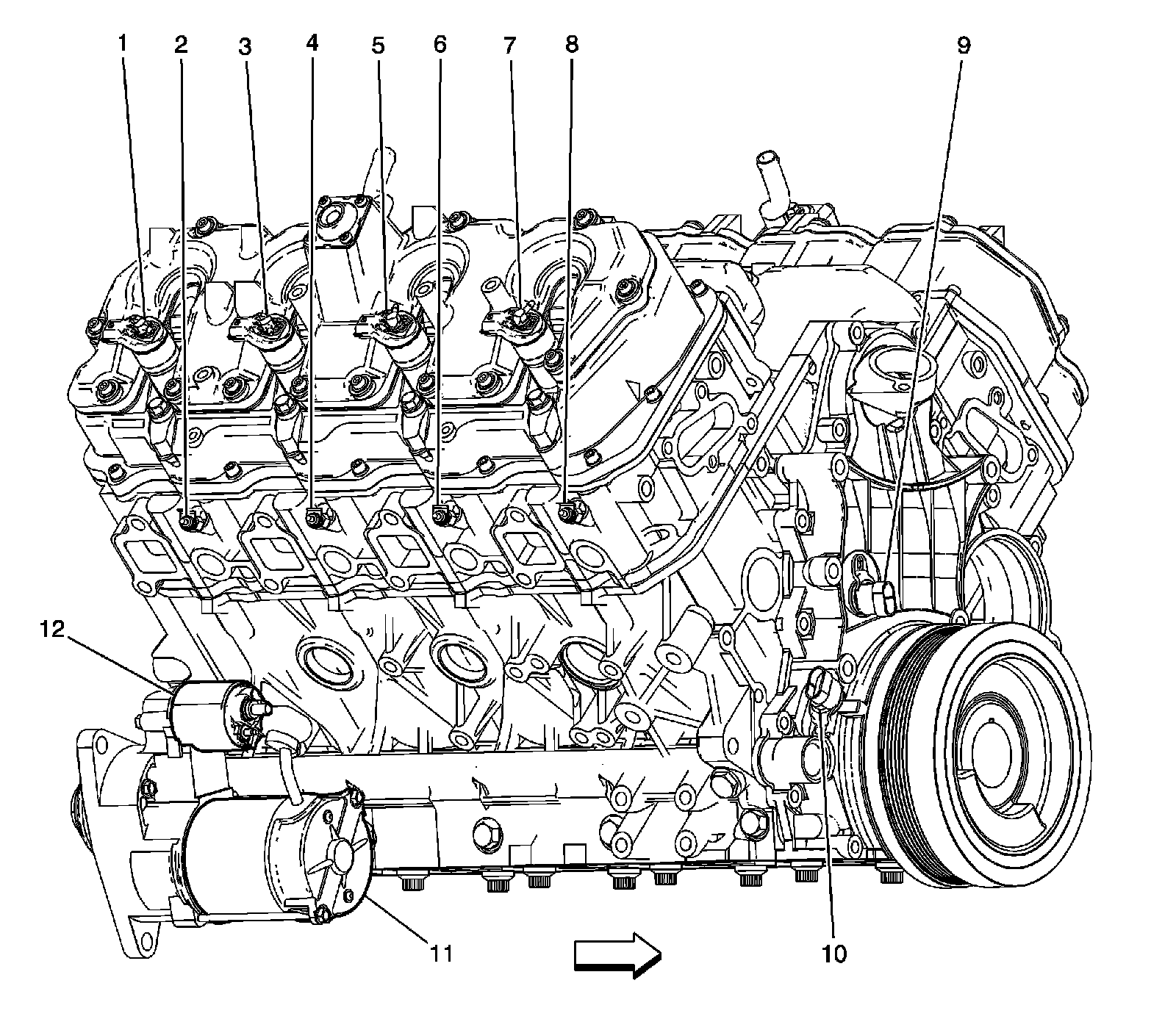

Right Side of the Engine




1 - Fuel Injector 7
2 - Glow Plug 7
3 - Fuel Injector 5
4 - Glow Plug 5
5 - Fuel Injector 3
6 - Glow Plug 3
7 - Fuel Injector 1
8 - Glow Plug 1
9 - Camshaft Position (CMP) Sensor
10 - Crankshaft Position (CKP) Sensor
11 - Starter
