Engine General Specifications & Service Limits

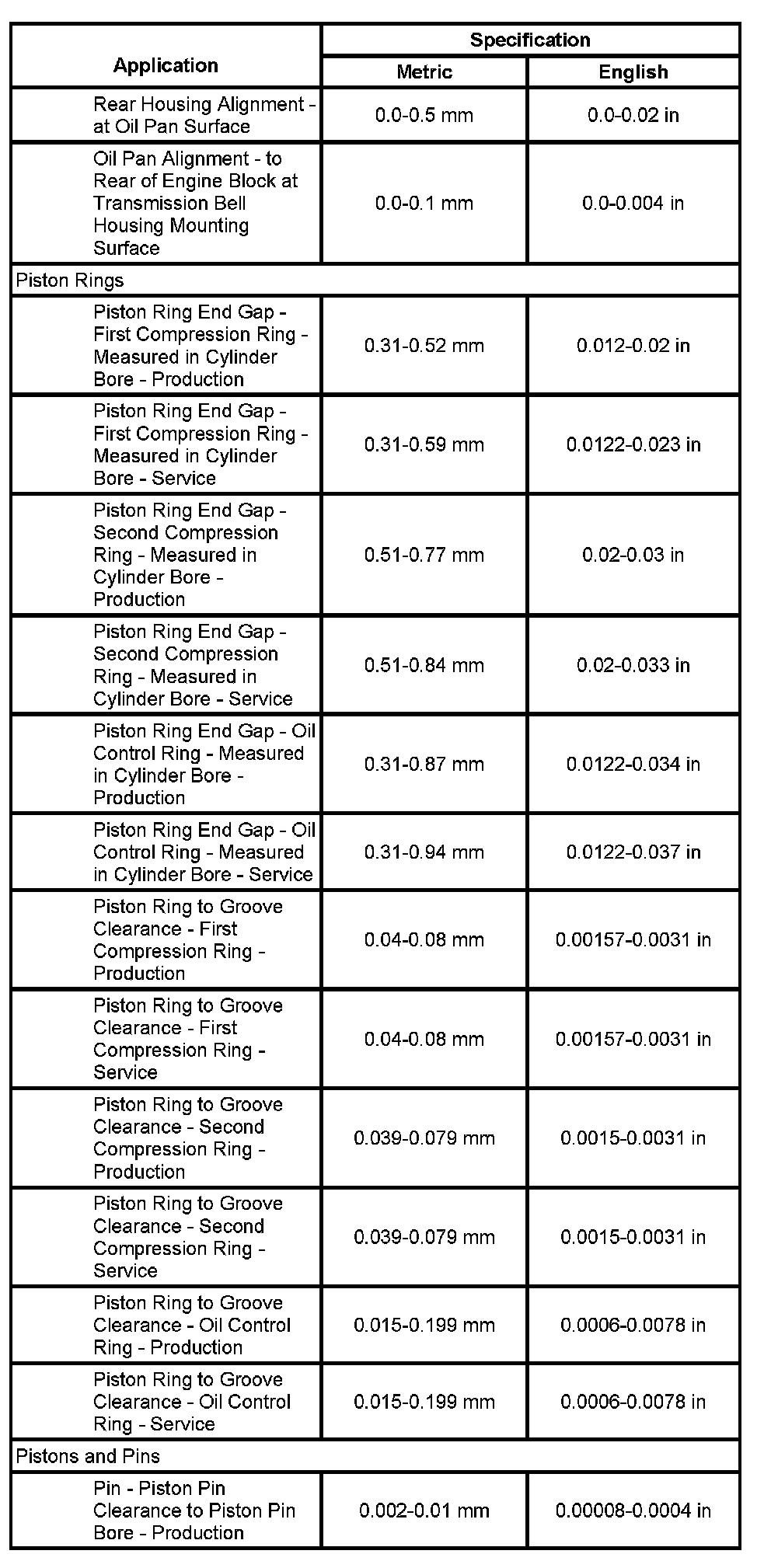

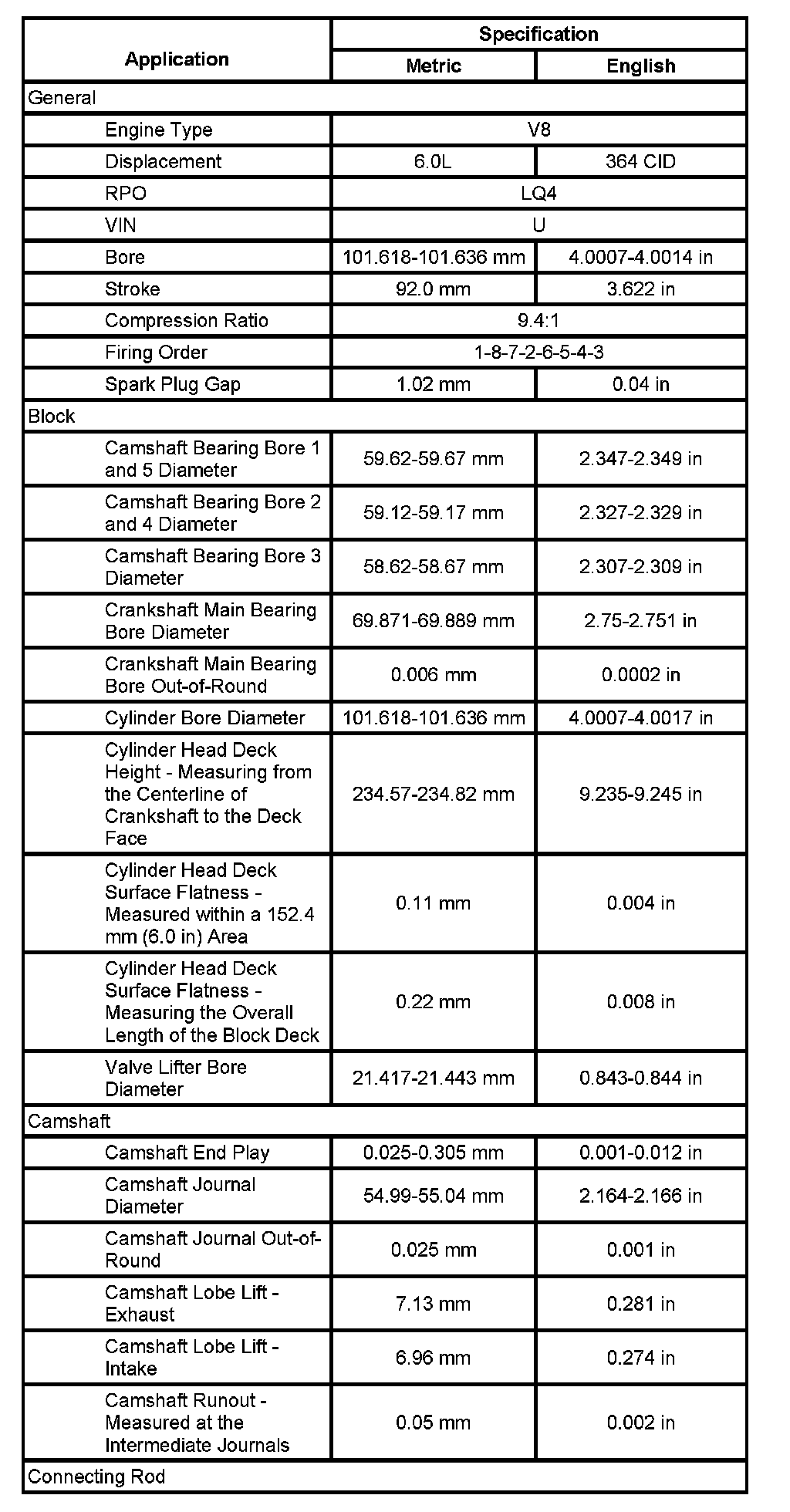

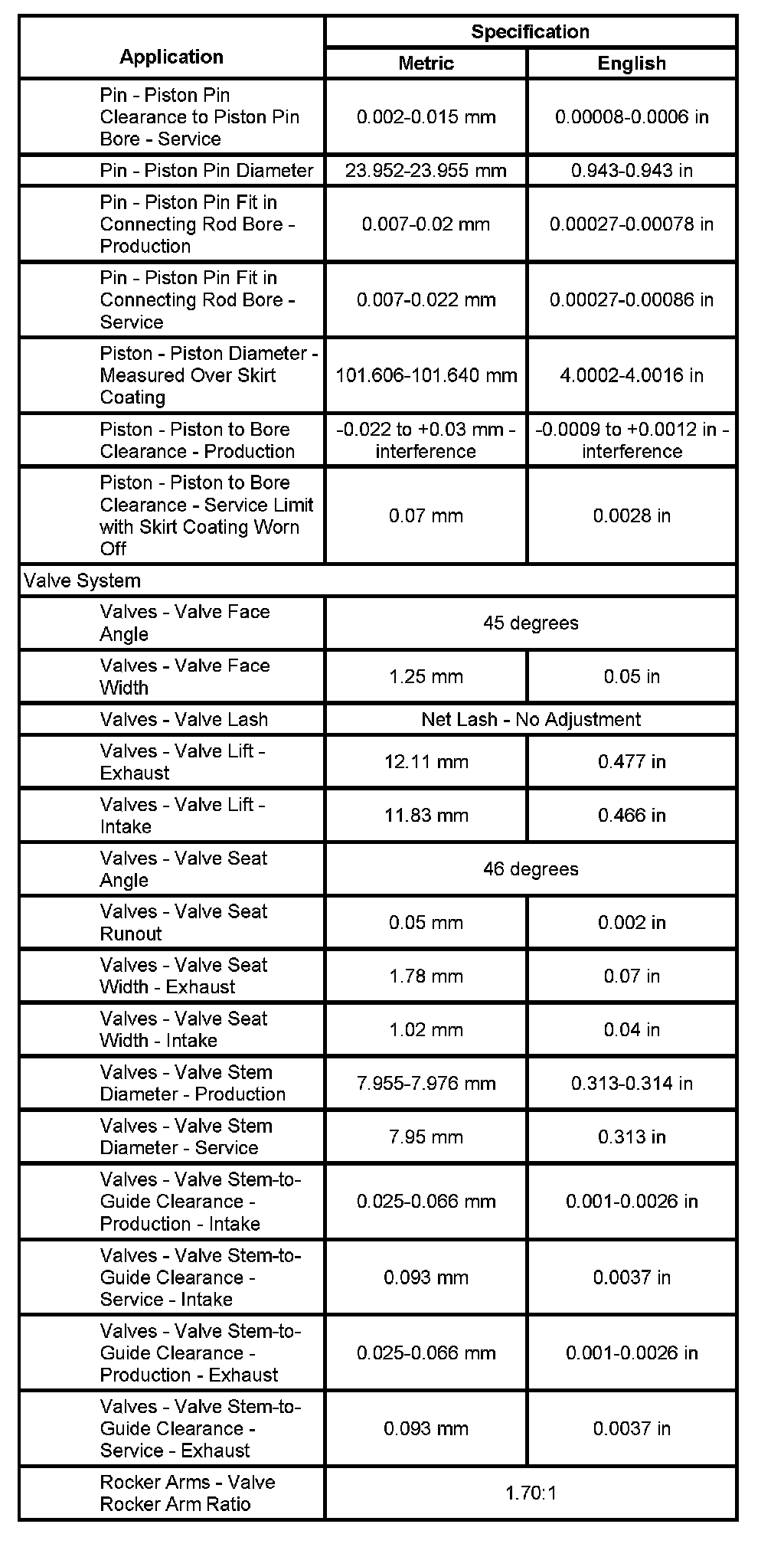

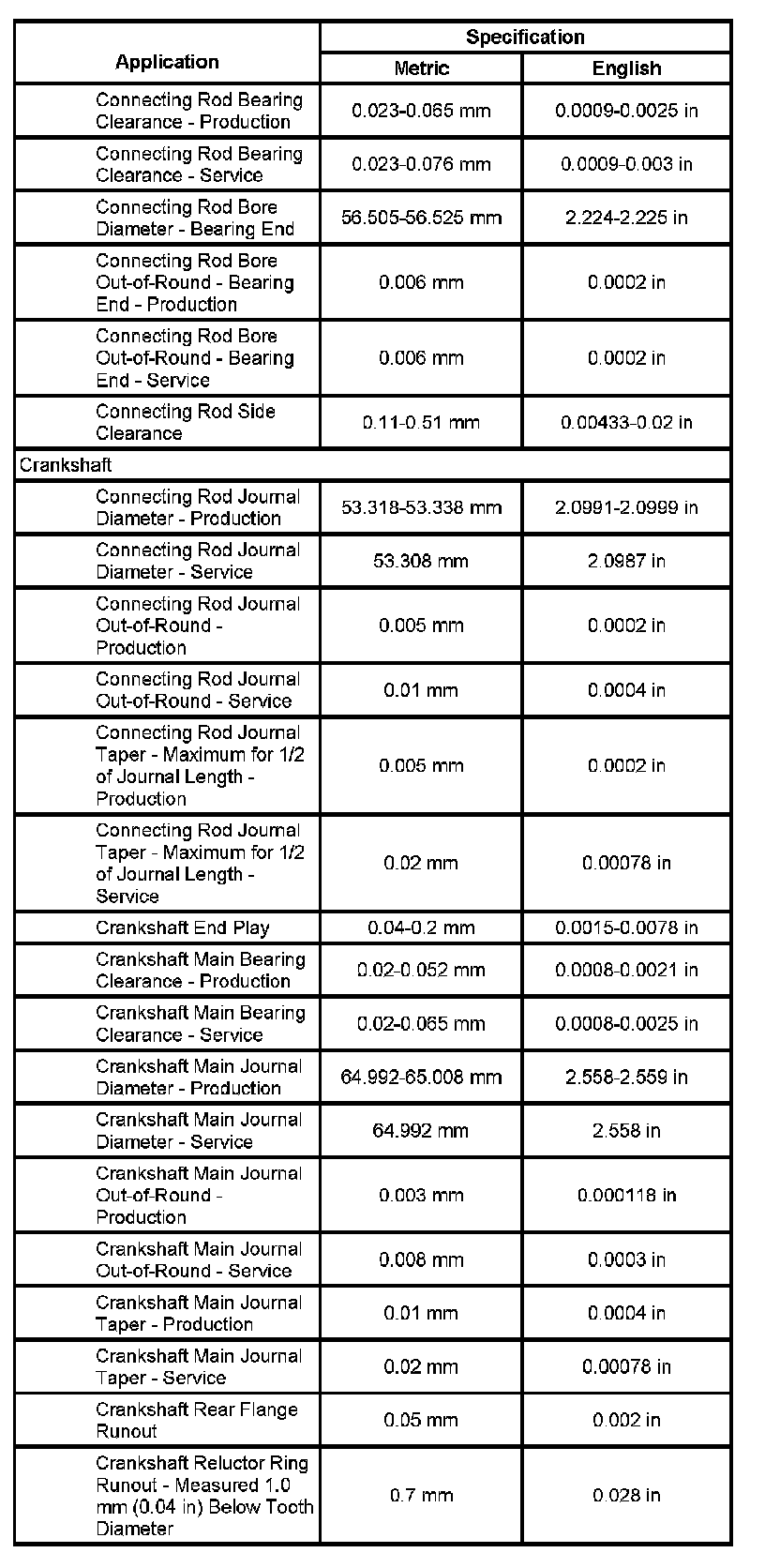

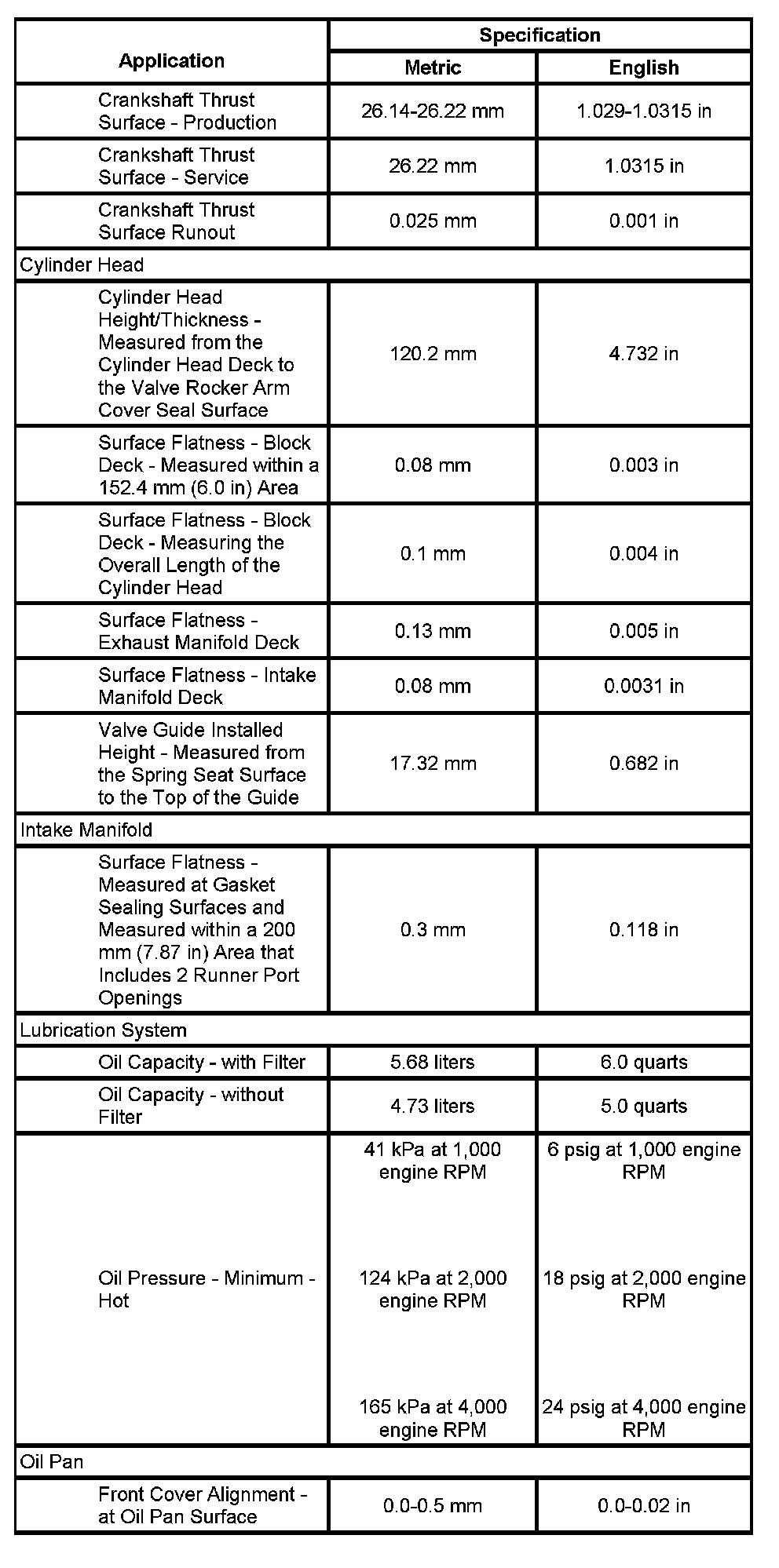

Engine Mechanical Specifications (LQ4 VIN U)

Engine Mechanical Specifications (LQ4 VIN U):




Engine Mechanical Specifications (LQ4 VIN U):




Engine Mechanical Specifications (LQ4 VIN U):




Engine Mechanical Specifications (LQ4 VIN U):




Engine Mechanical Specifications (LQ4 VIN U):




Engine Mechanical Specifications (LQ4 VIN U):
