Underhood Fuse Block



Fuse Block - Underhood Label (Early Production):




Fuse Block - Underhood Label (Late Production):

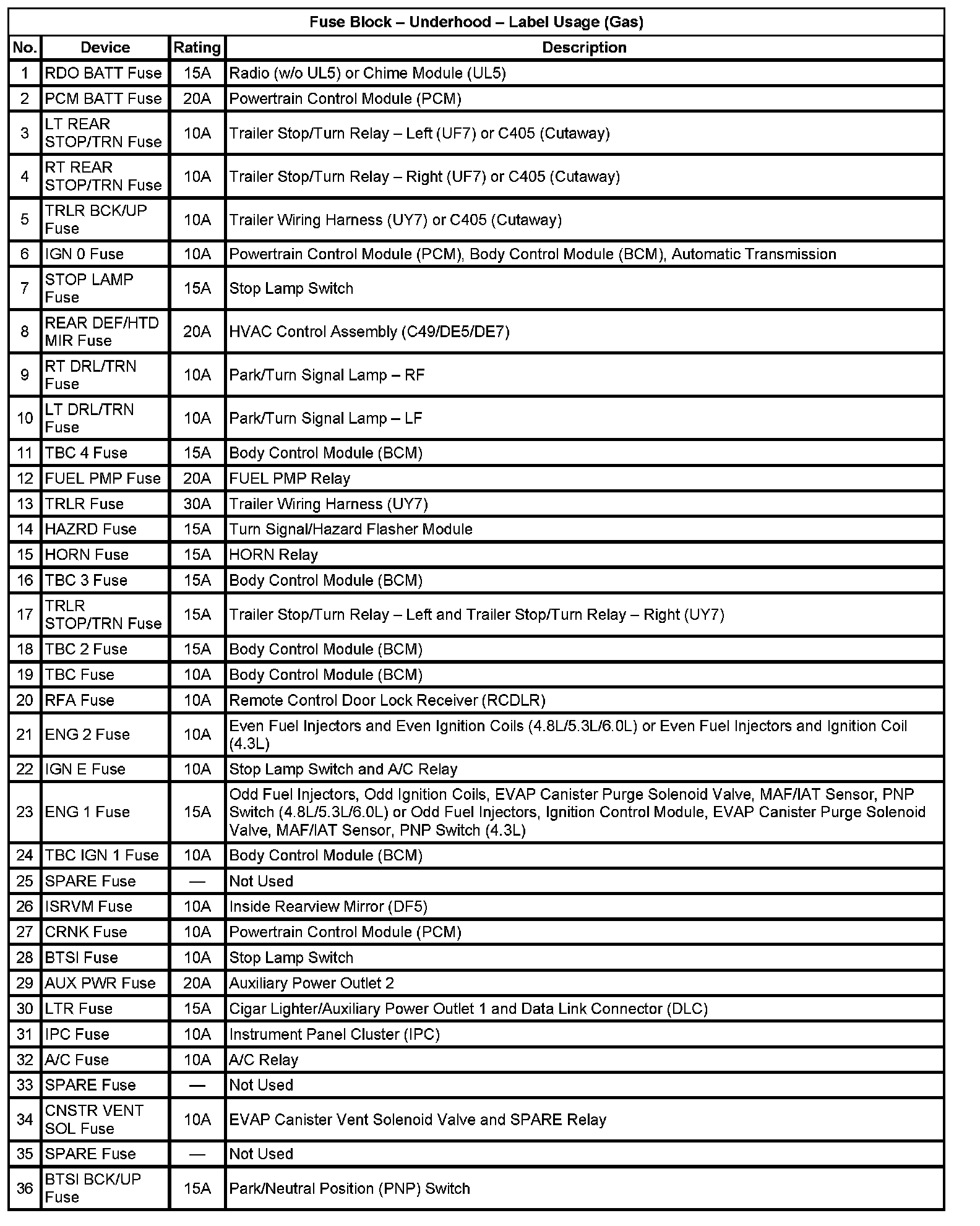

Fuse Block - Underhood - Label Usage (Gas) (Part 1):

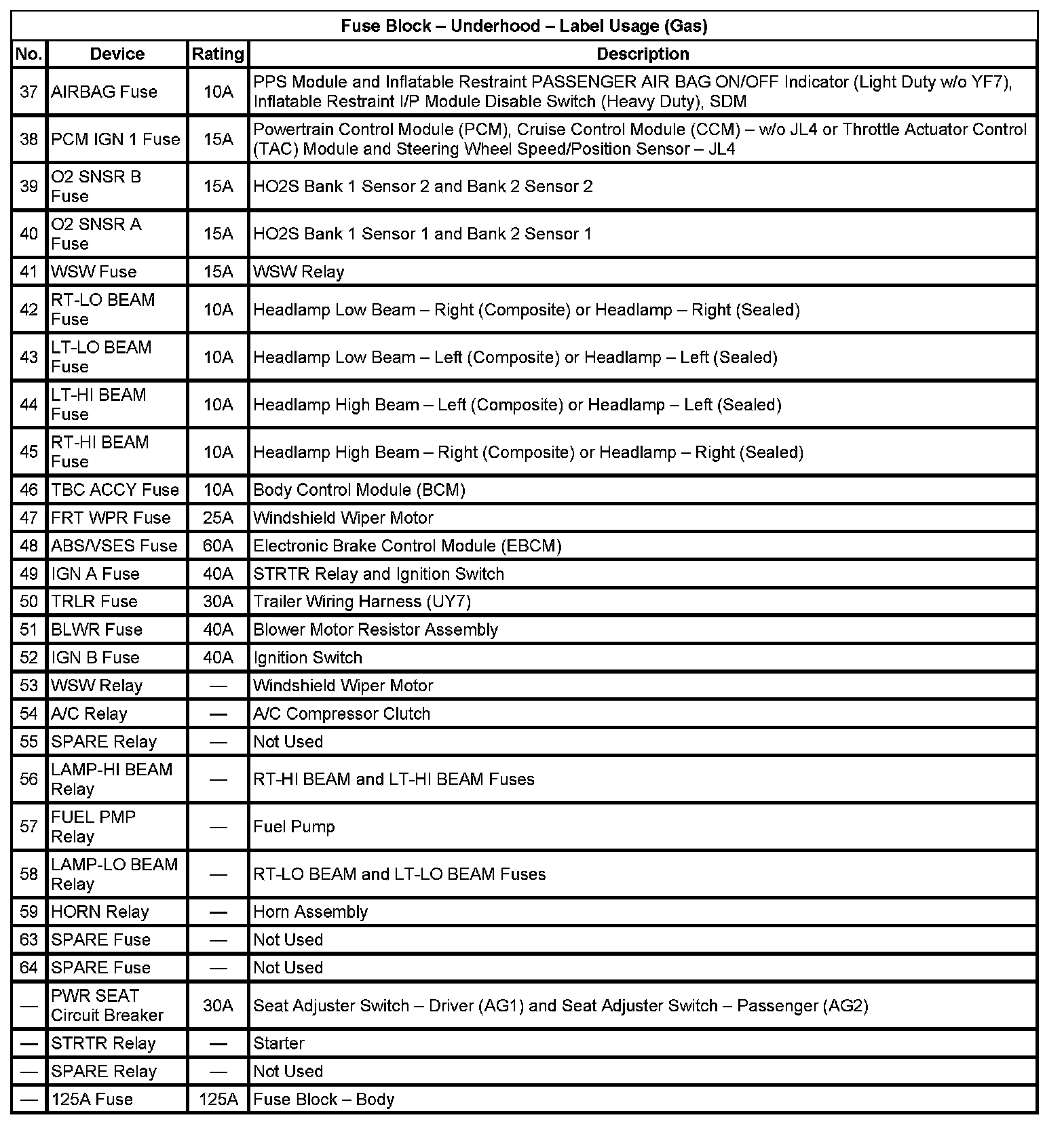

Fuse Block - Underhood - Label Usage (Gas) (Part 2):
