Power Seat Switch

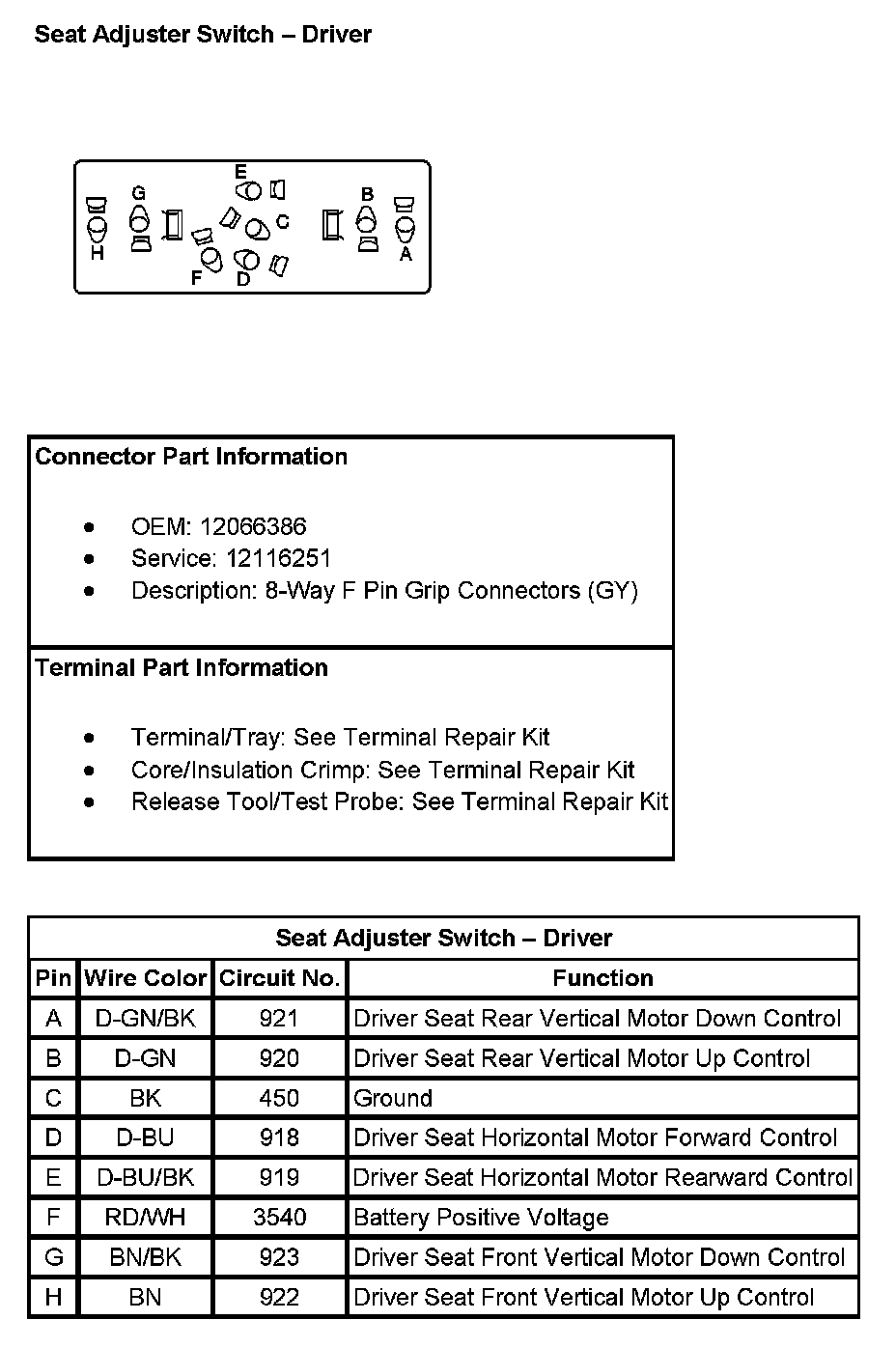

Seat Adjuster Switch - Driver:

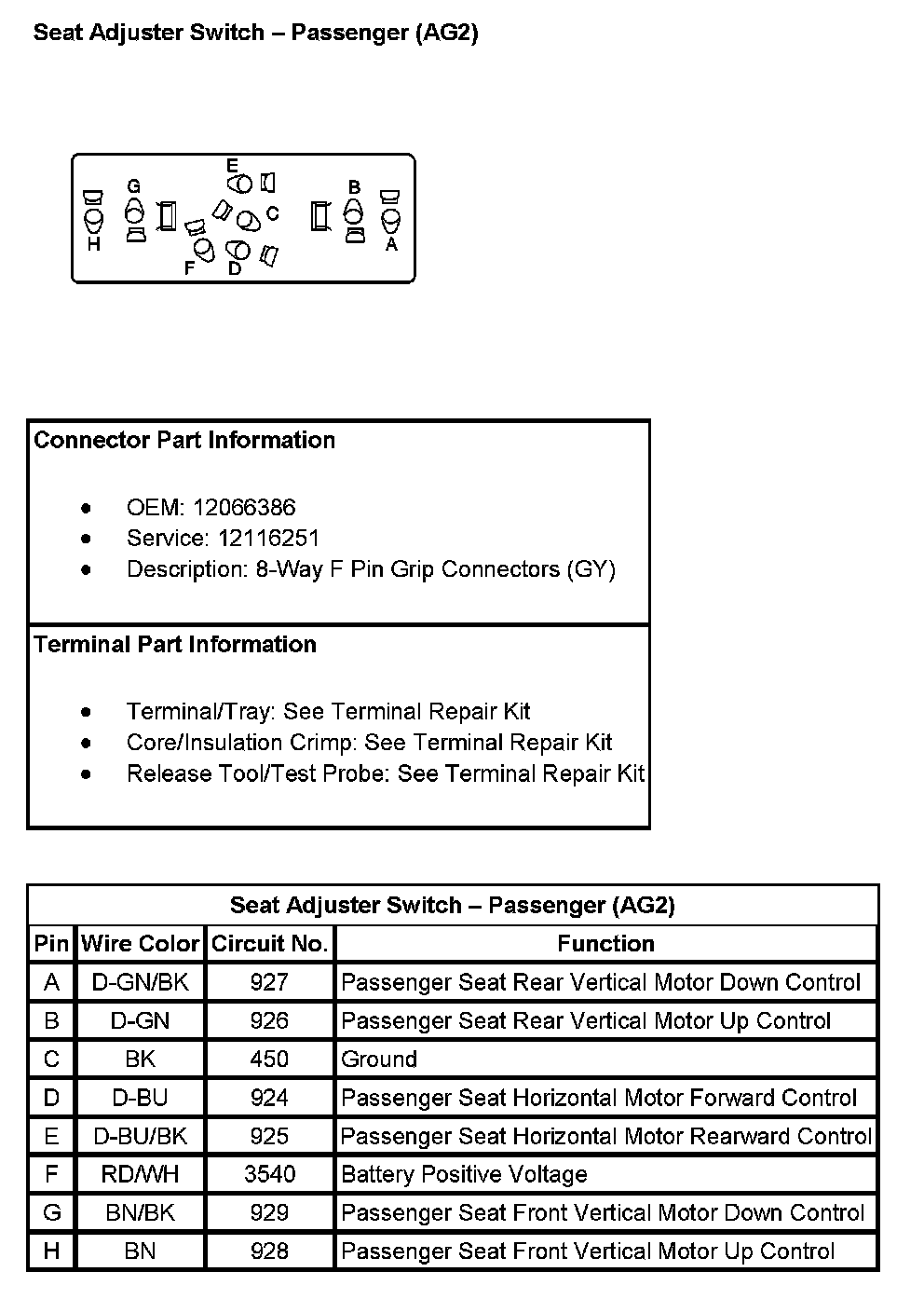

Seat Adjuster Switch - Passenger (With RPO Code AG2):
