Home >> Chevrolet >> 2007 >> Express 2500 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Fog/Driving Lamp

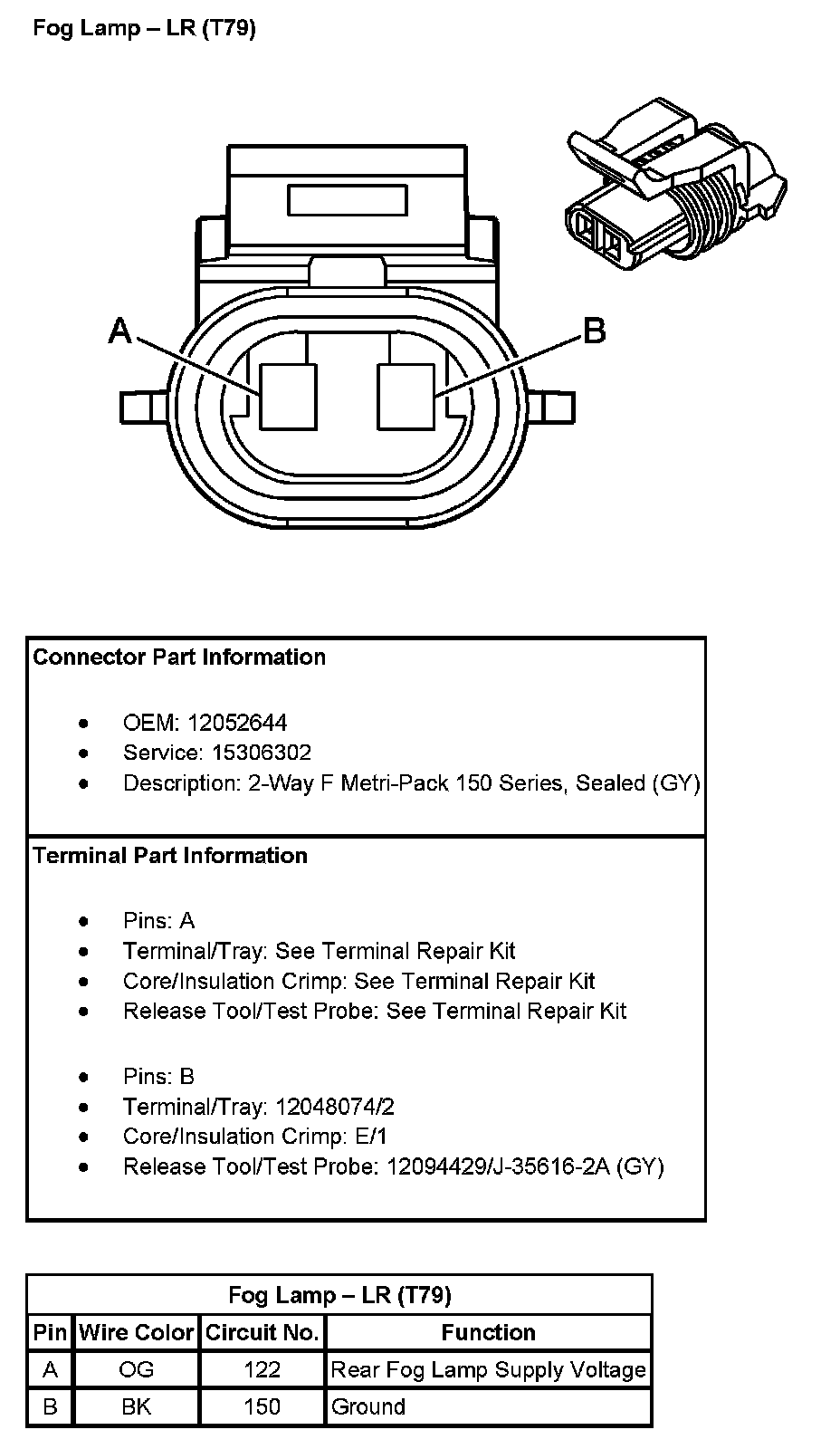

Fog Lamp - LR (With RPO Code T79):

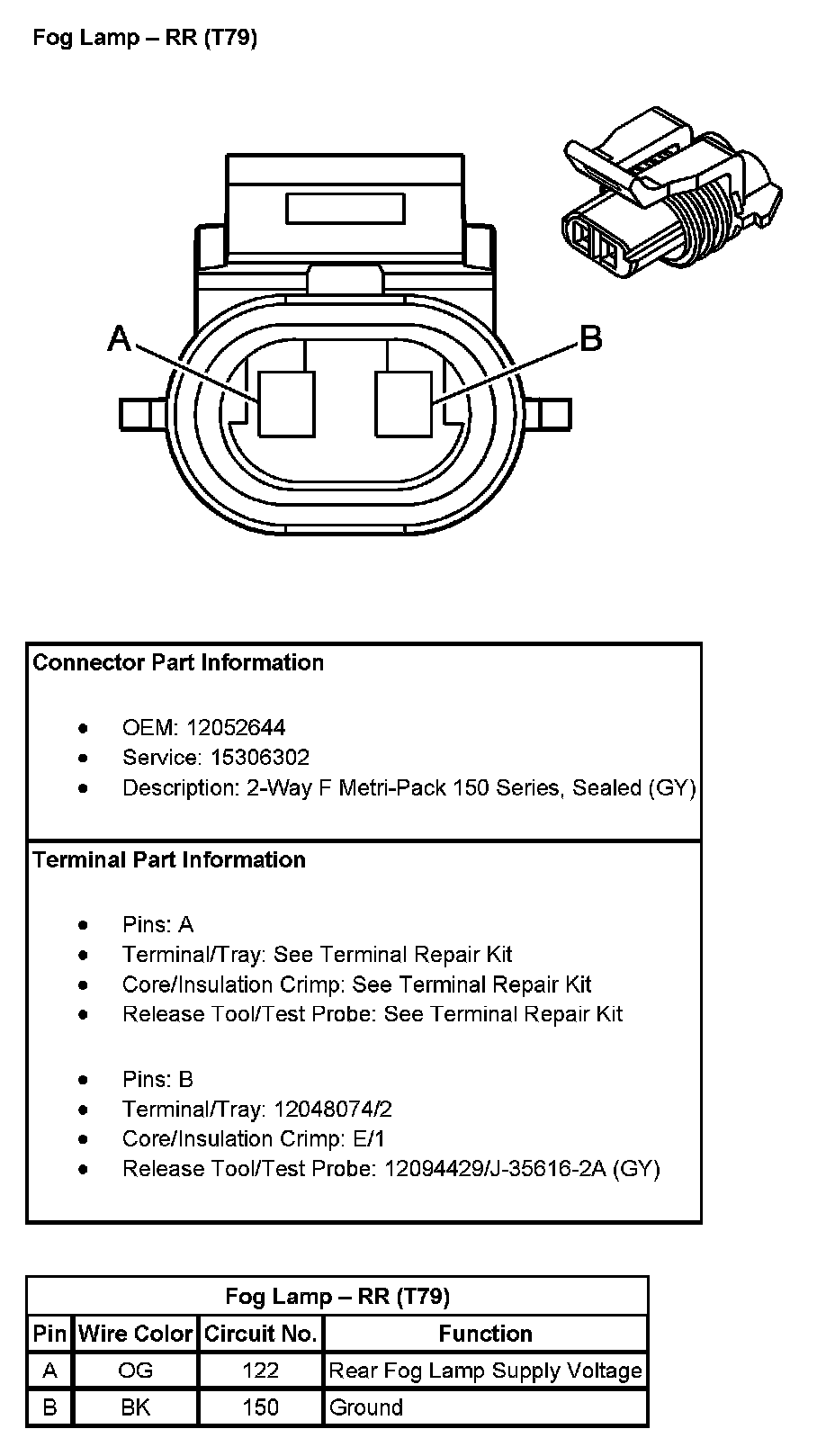

Fog Lamp - RR (With RPO Code T79):
