Body Control Module - C5

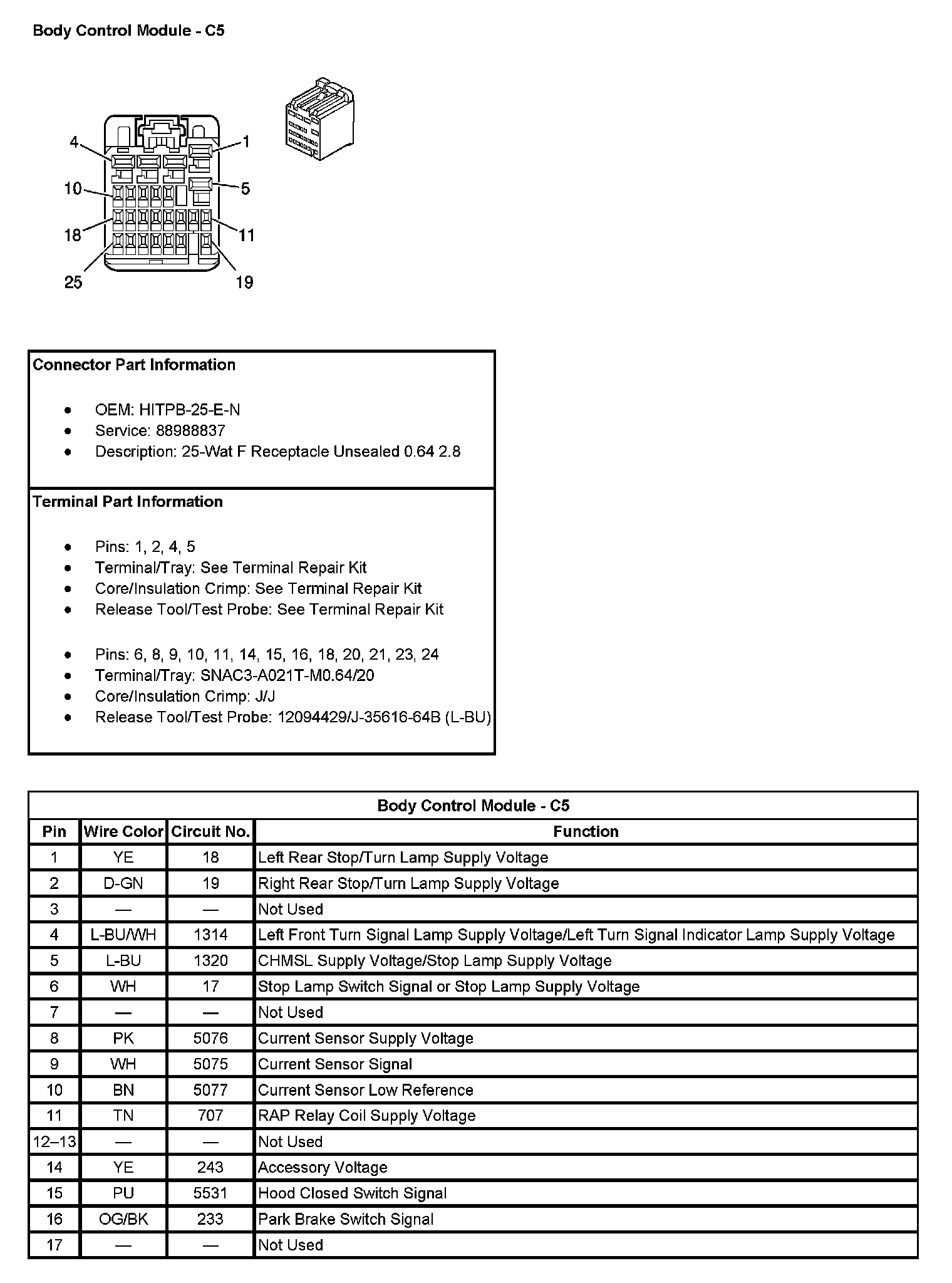

Body Control Module - C5 (Pin 1 To 17):



Body Control Module - C5 (Pin 18 To 25):
