July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

I/P Fuse Block

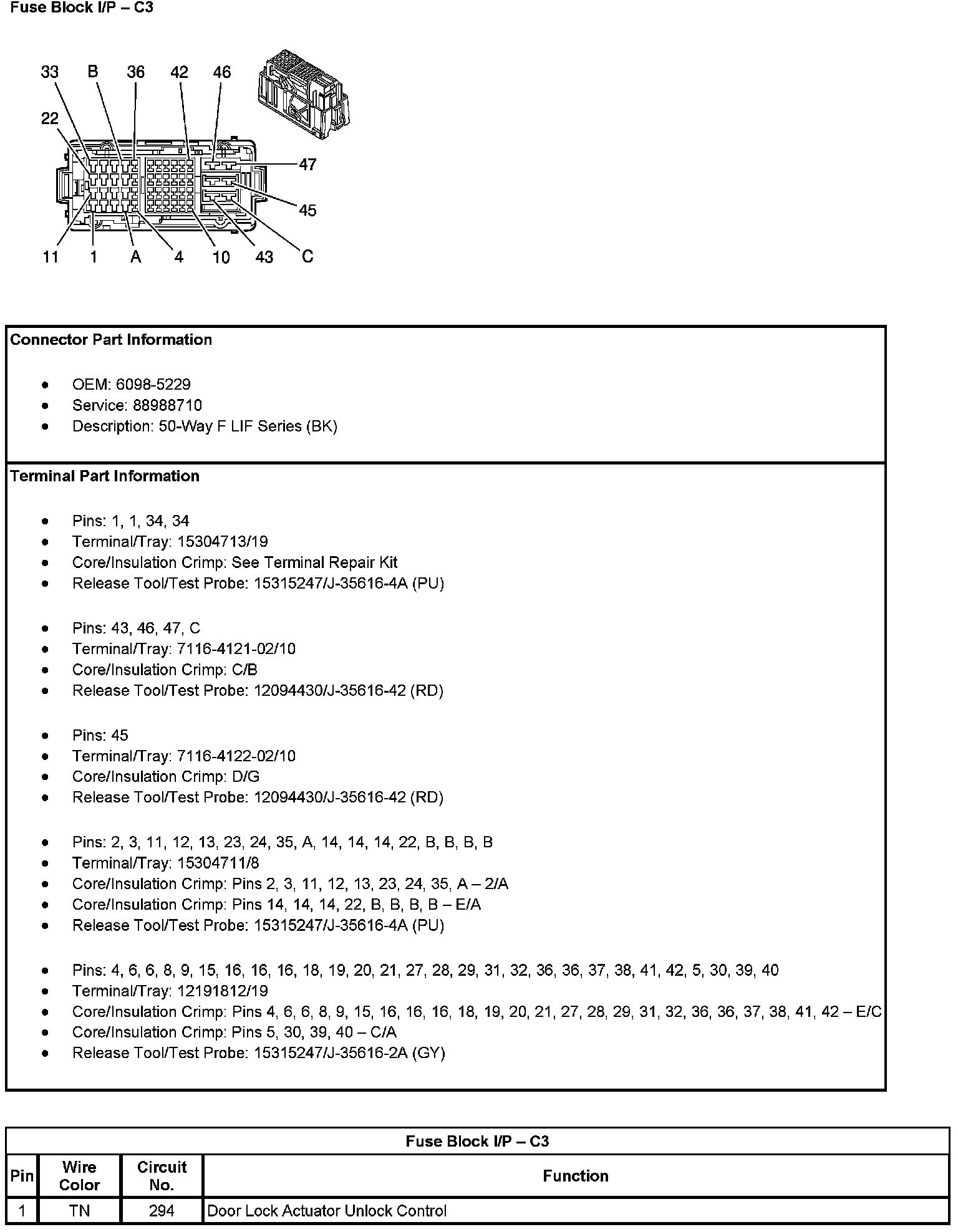

Fuse Block I/P - C3:

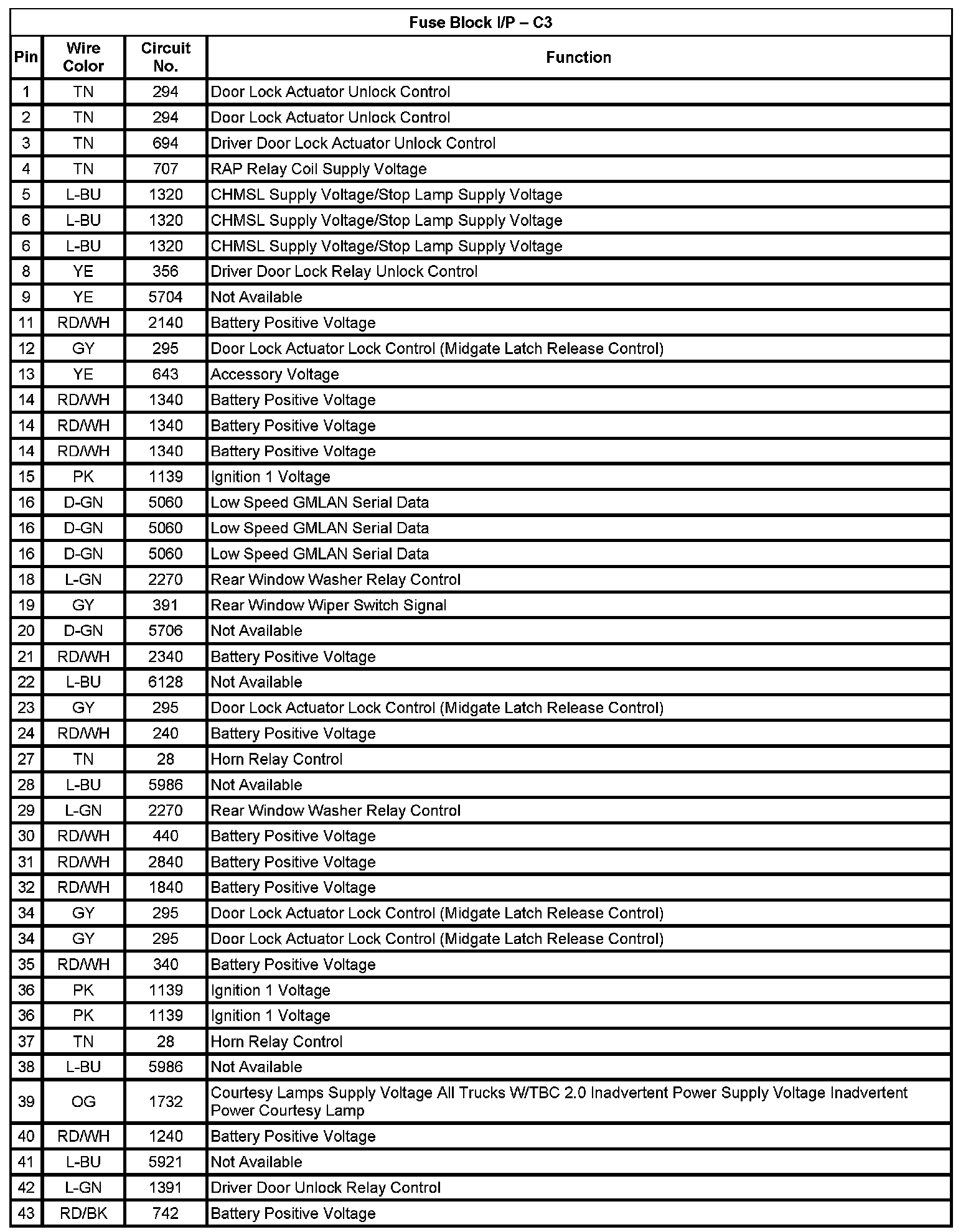

Fuse Block I/P - C3 (Pin 1 To 43):

Fuse Block I/P - C3 (Pin 45 To C):

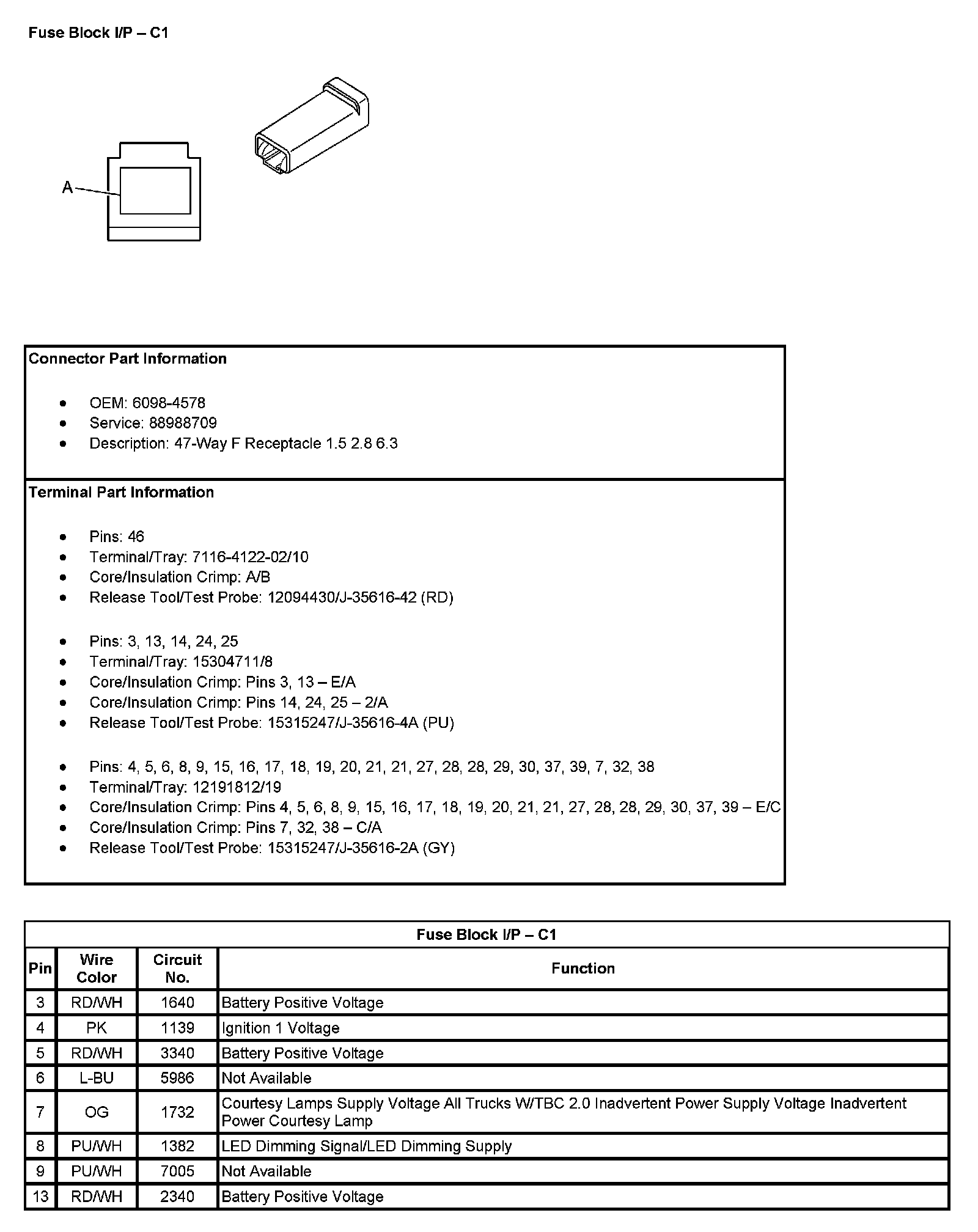

Fuse Block I/P - C1:

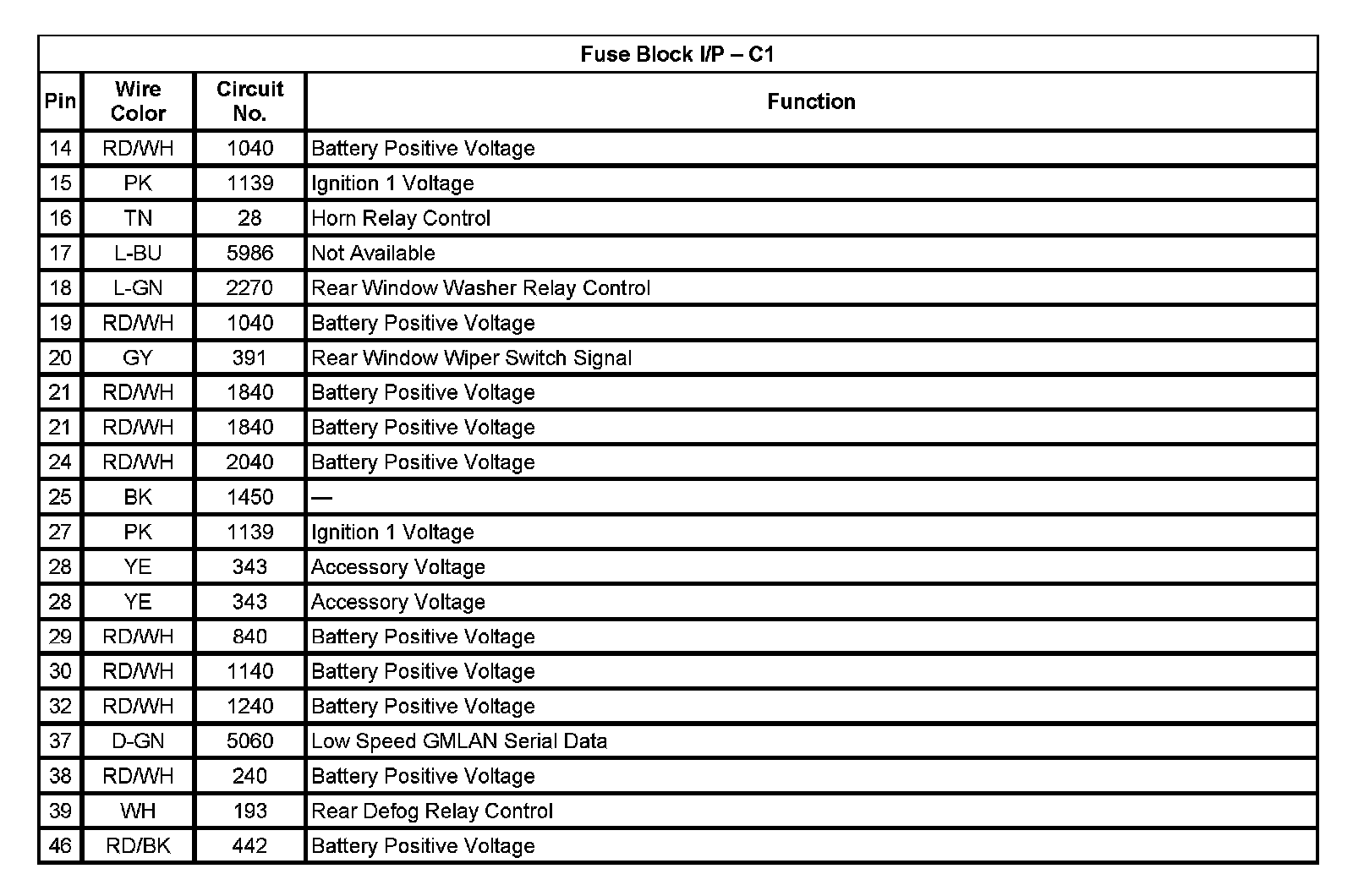

Fuse Block I/P - C1 (Pin 14 To 40):

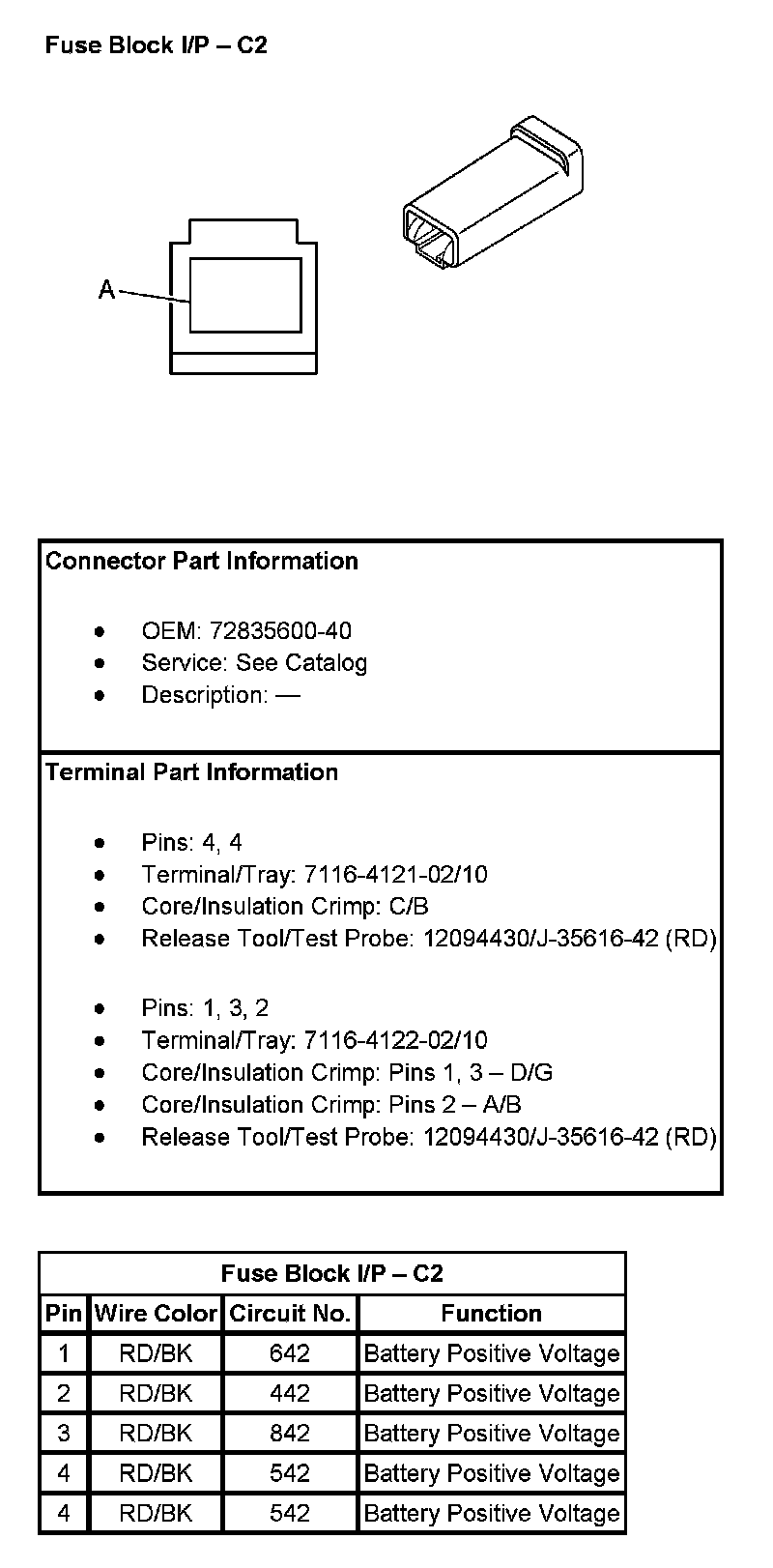

Fuse Block I/P - C2:

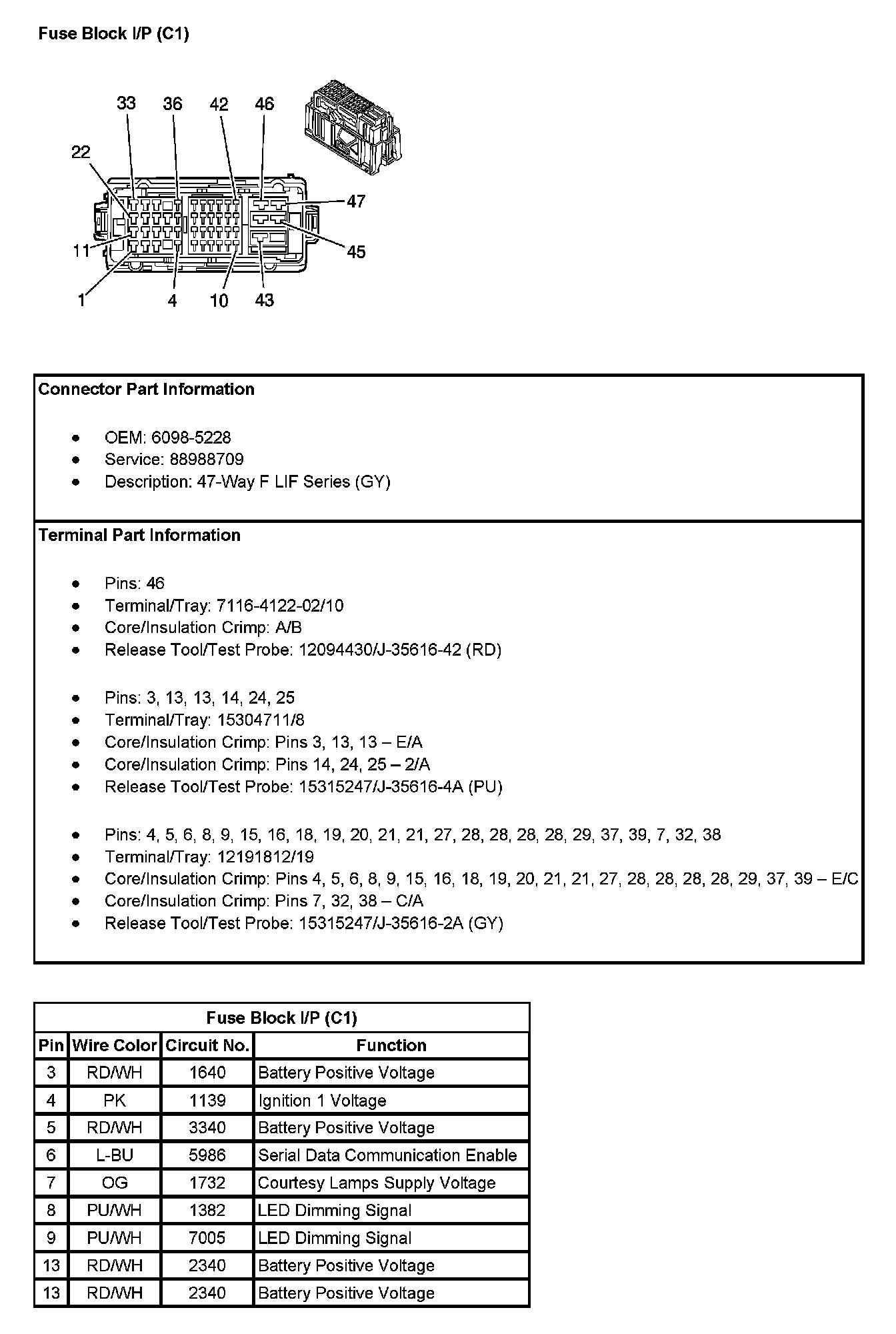

Fuse Block I/P (C1) (Pin 1 To 13):

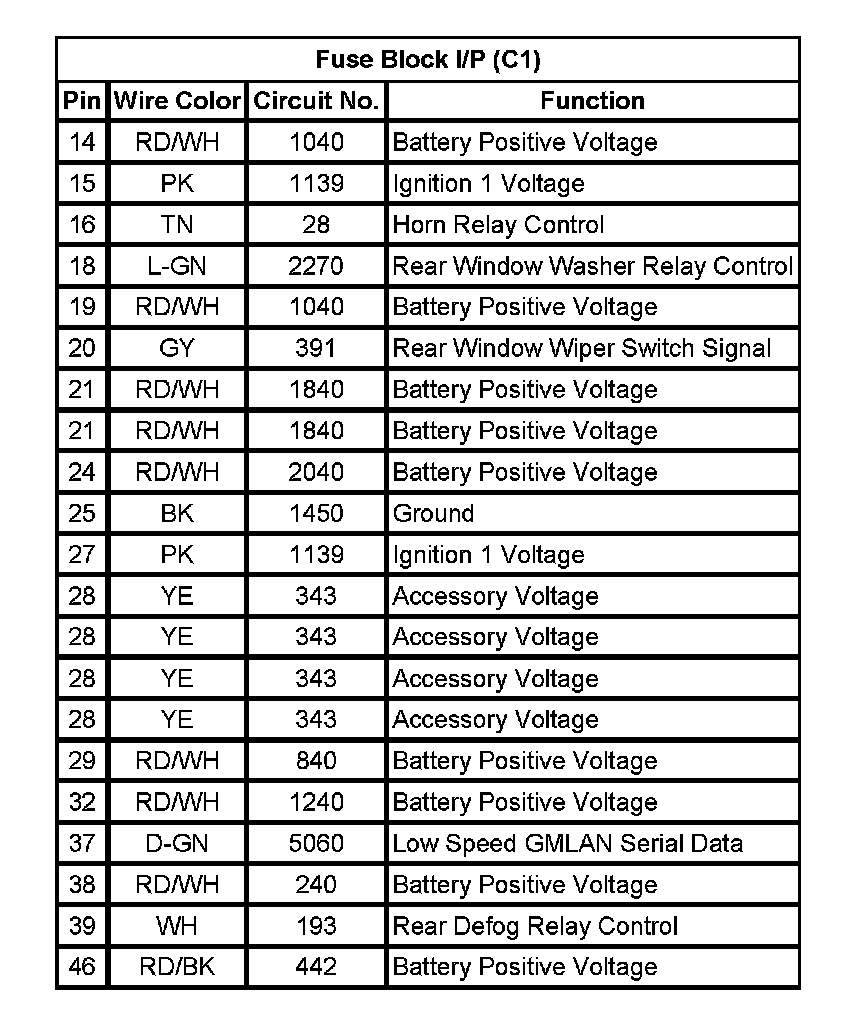

Fuse Block I/P (C1) (Pin 14 To 46):

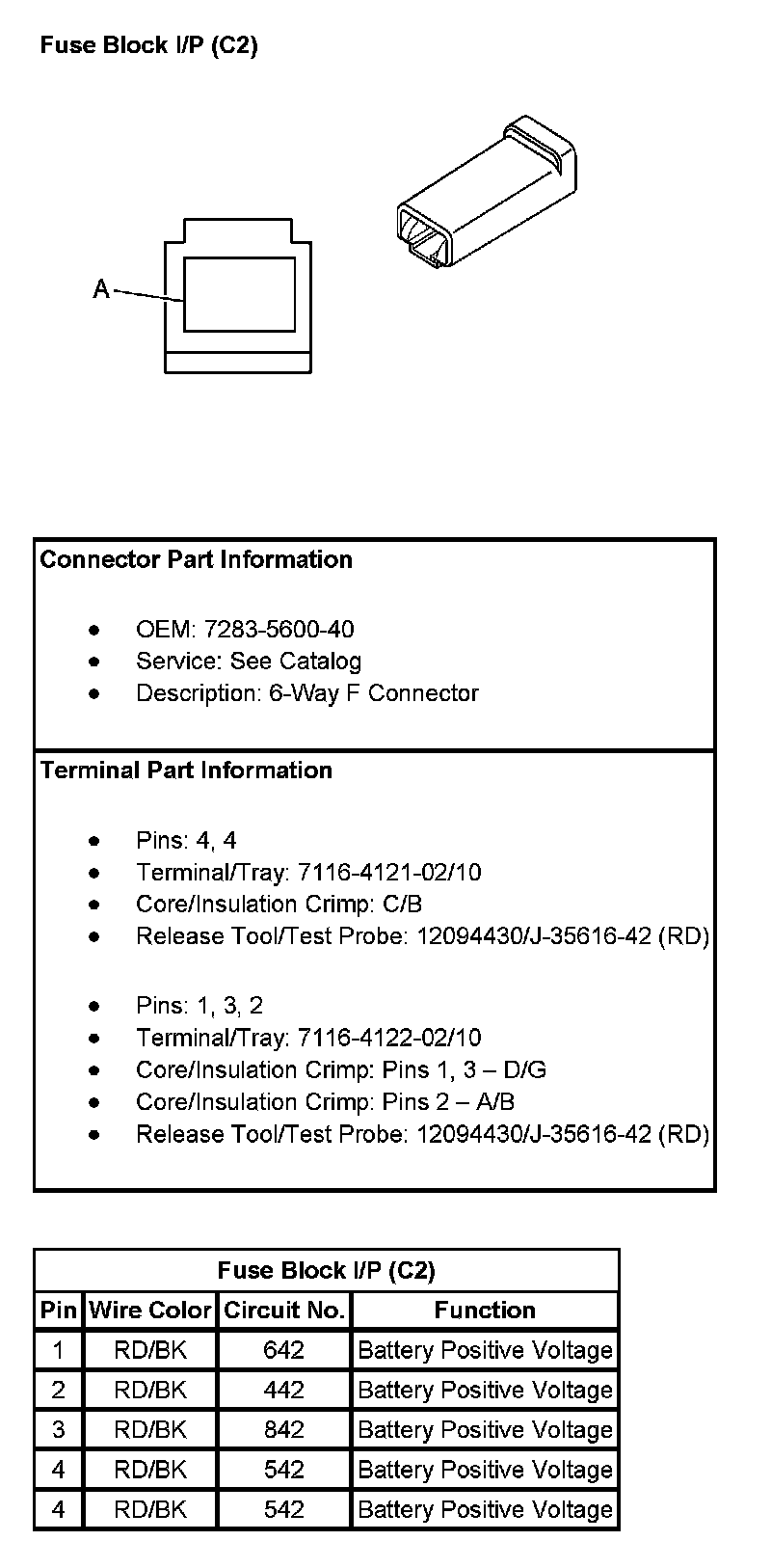

Fuse Block I/P (C2):

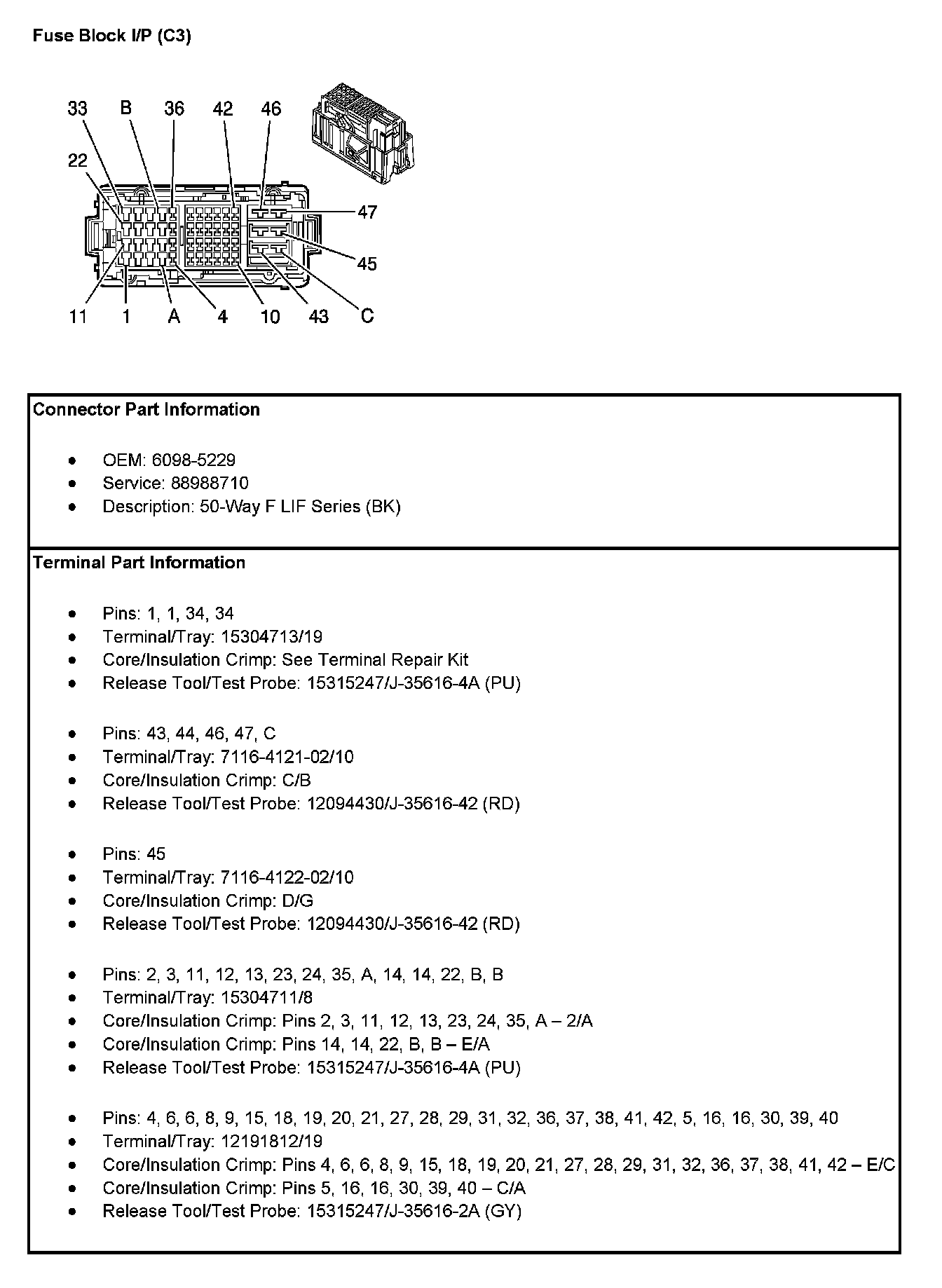

Fuse Block I/P (C3):

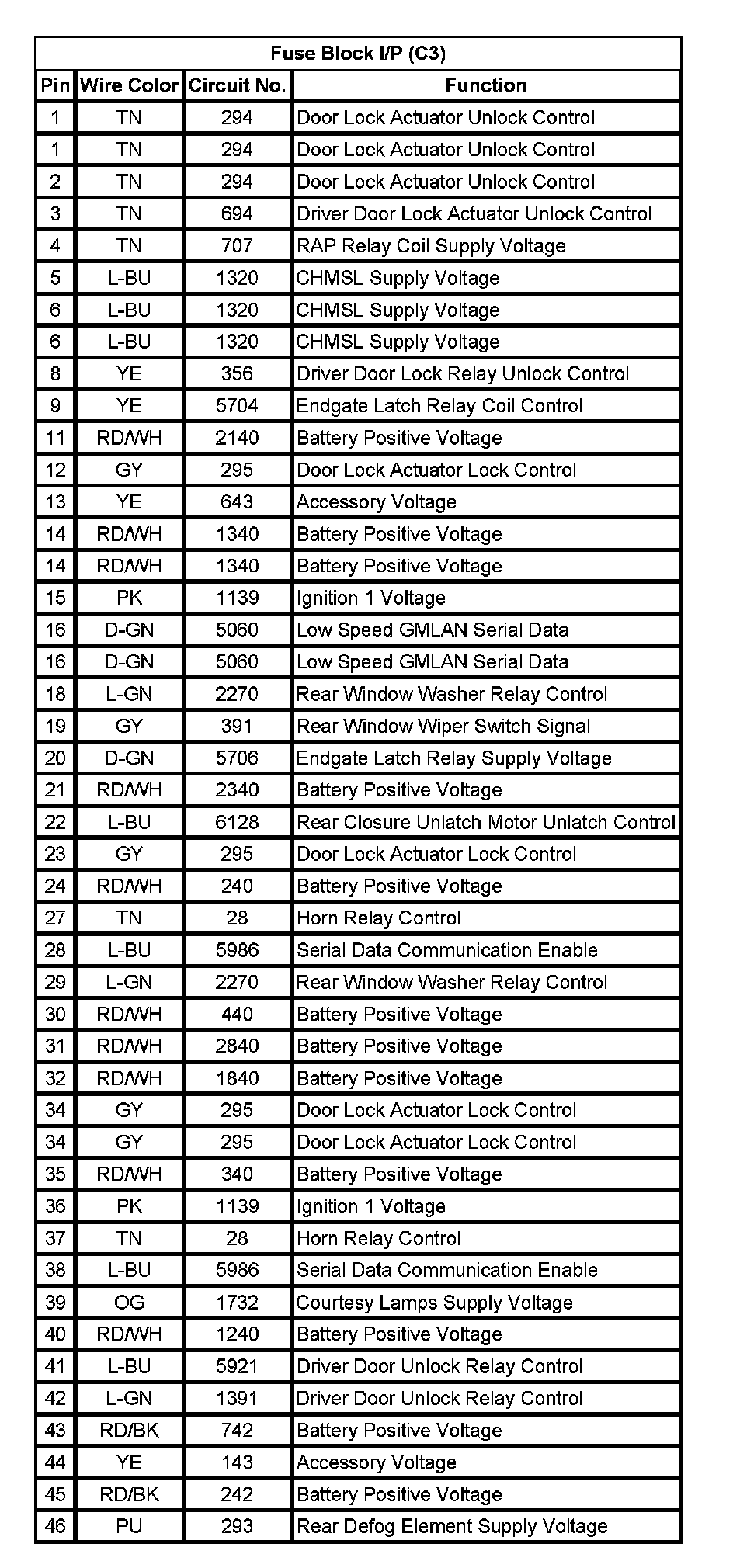

Fuse Block I/P (C3) (Pin 1 To 46):

Fuse Block I/P (C3) (Pin 47 To C):
