Cruise Control: Locations

Cruise Control Component Views

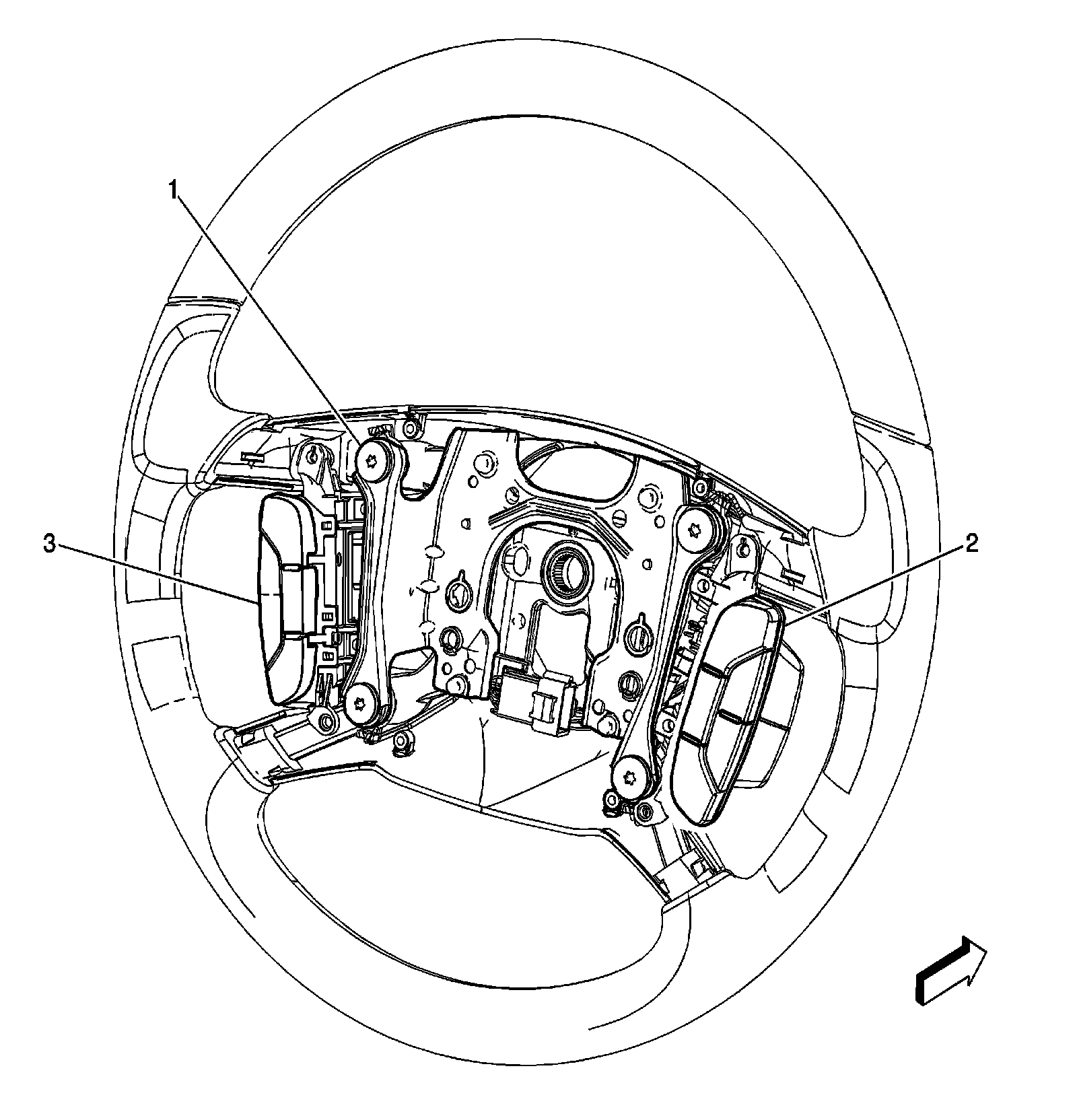

Steering Wheel Components

1 - Horn Switch
2 - Steering Wheel Controls - Right
3 - Steering Wheel Controls - Left

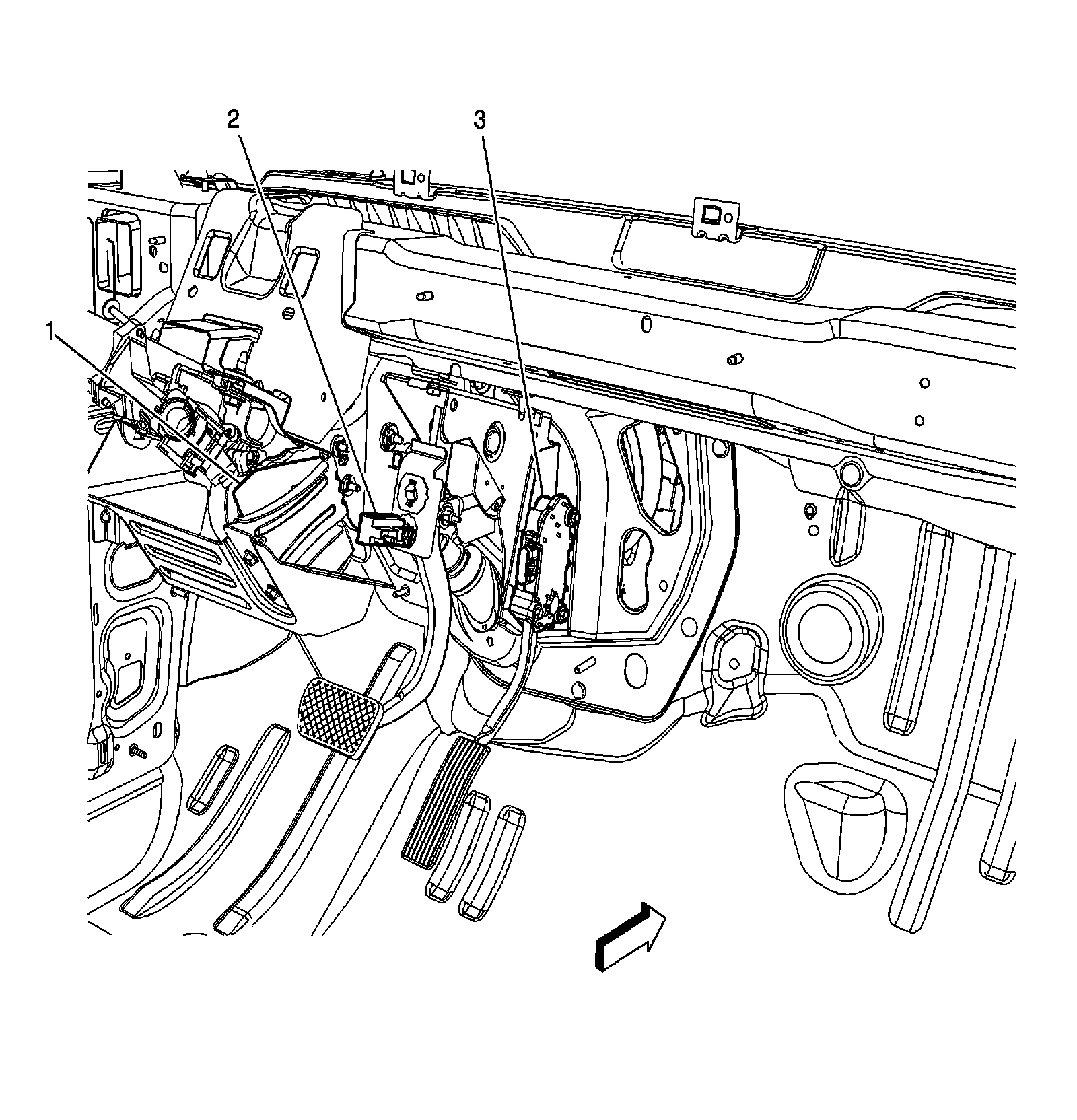

Pedal Assemblies

1 - Electric Power Steering (EPS) Module
2 - Brake Pedal Position Sensor
3 - Accelerator Pedal Position (APP) Sensor
