Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

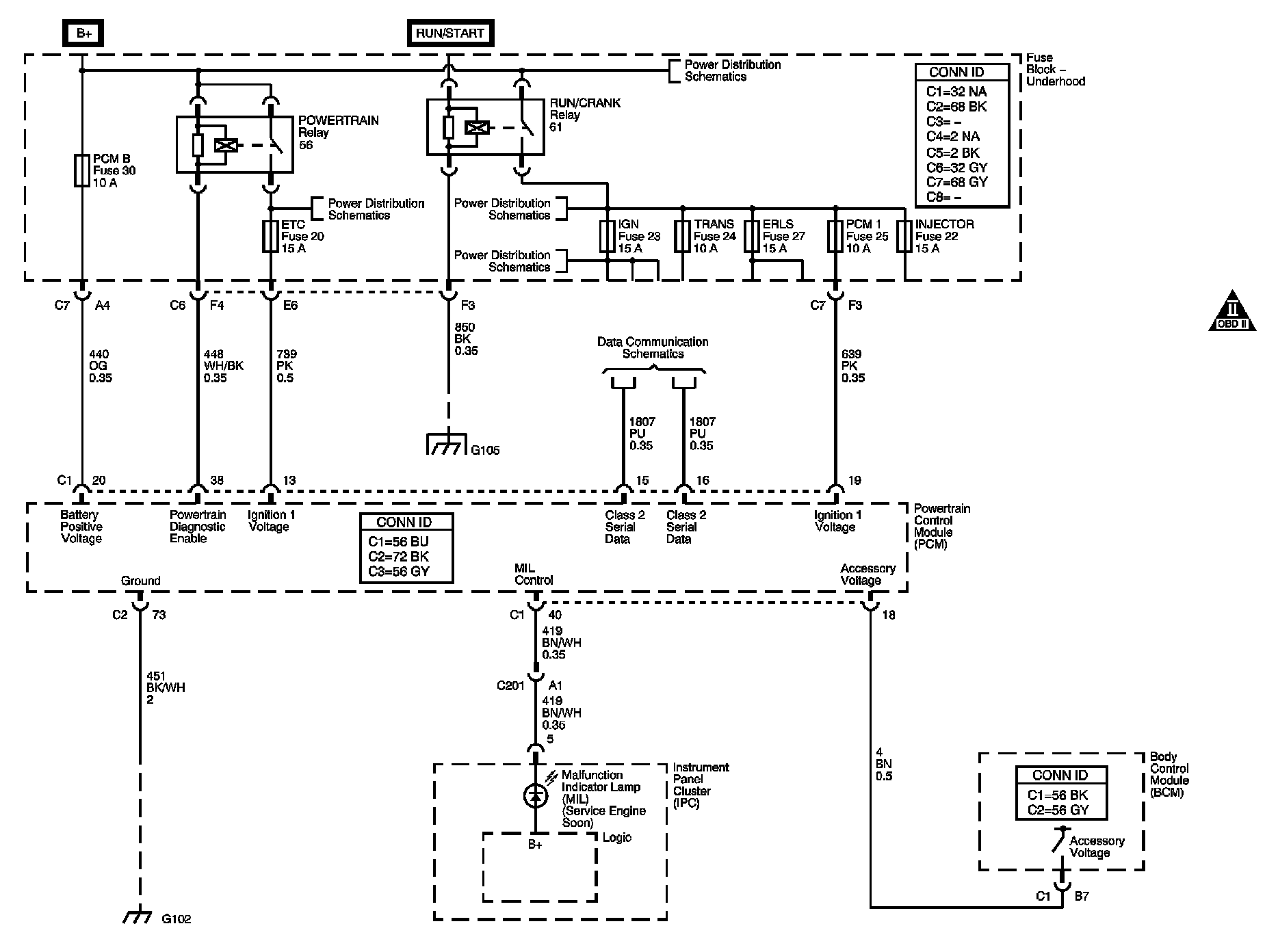

Module Power, Ground, Serial Data, and MIL

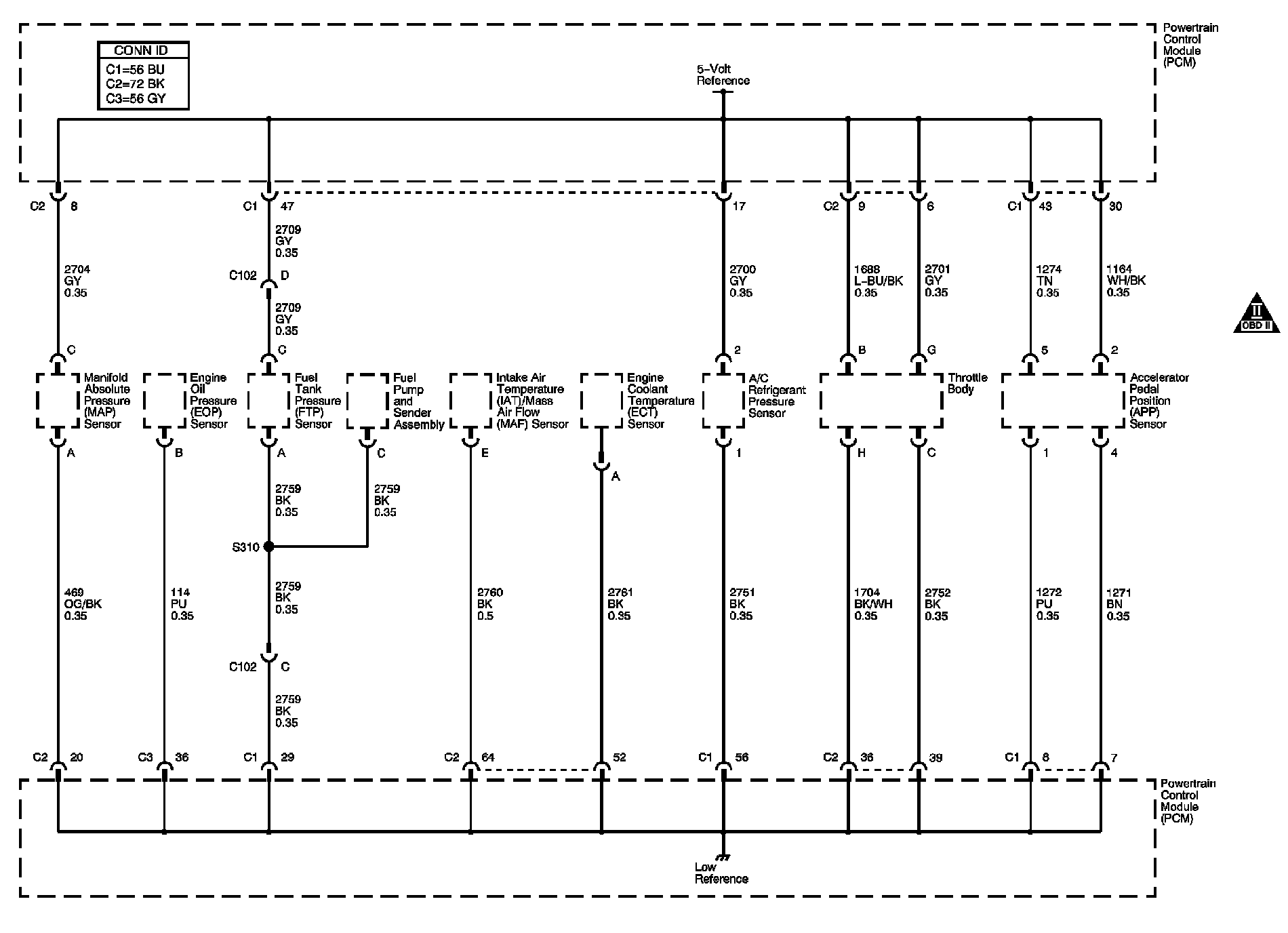

Engine Data Sensors - 5-Volt and Low Reference

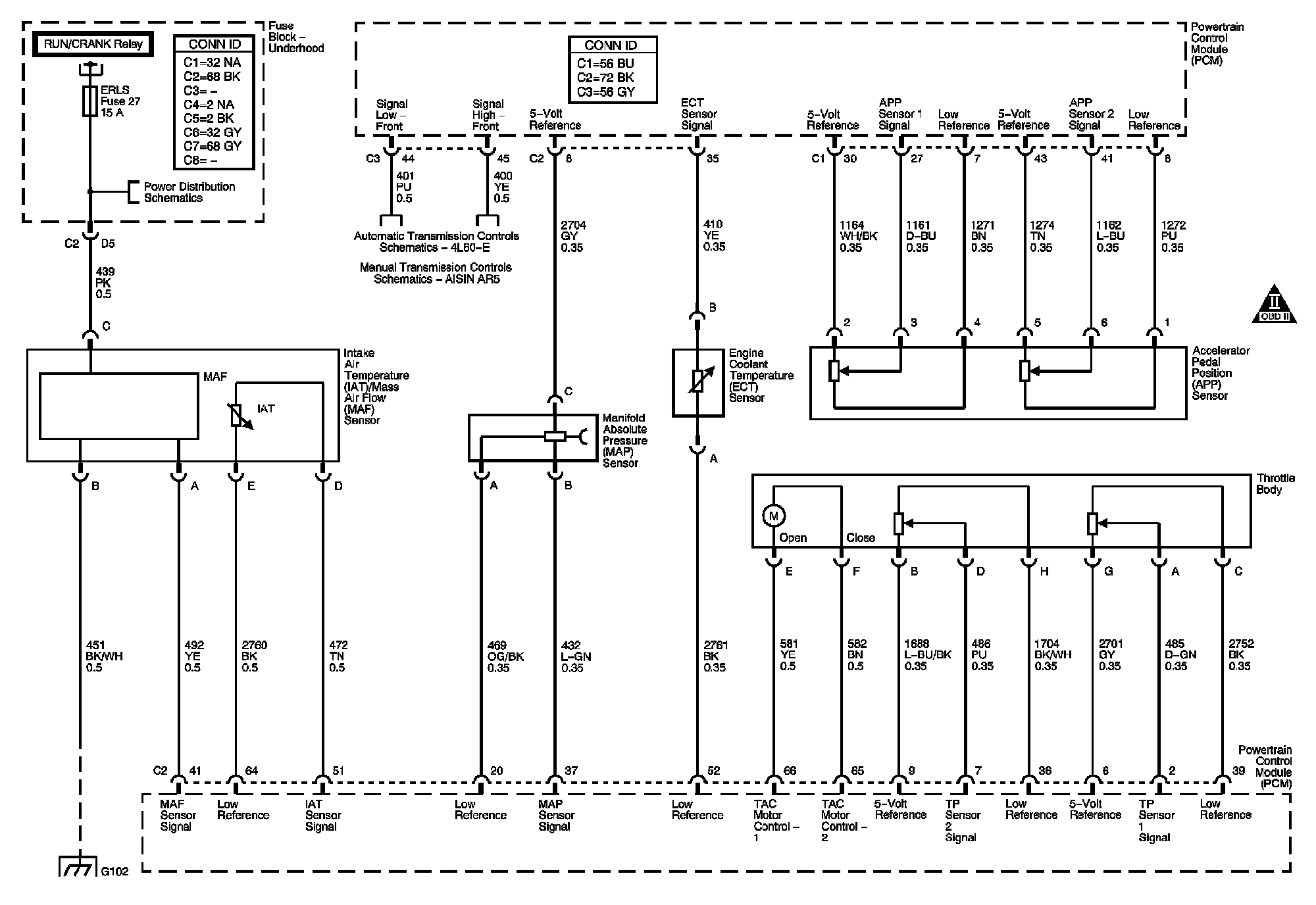

Engine Data Sensors - Electronic Throttle Controls, MAF, Pressure, and Temperature

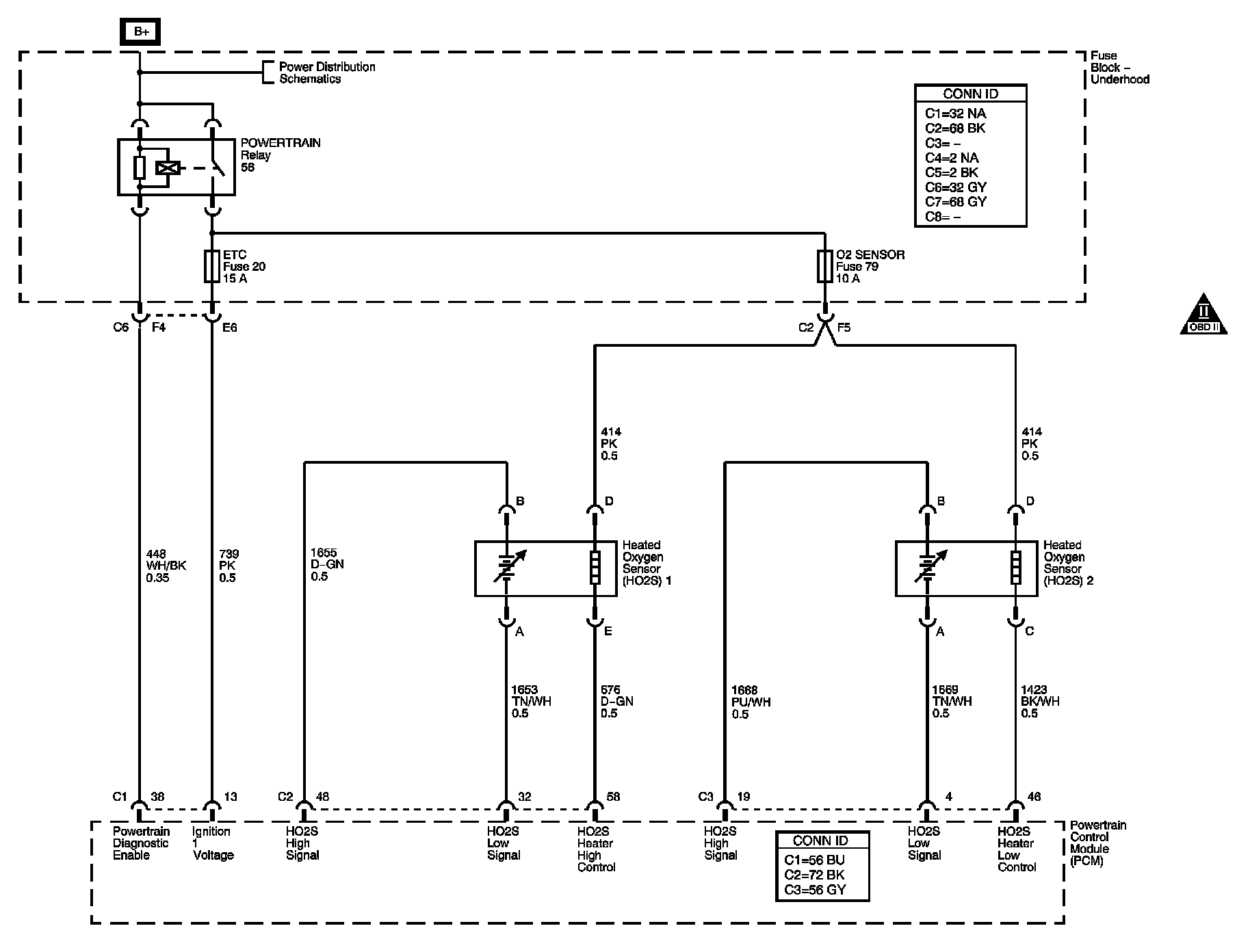

Engine Data Sensors - Oxygen Sensors

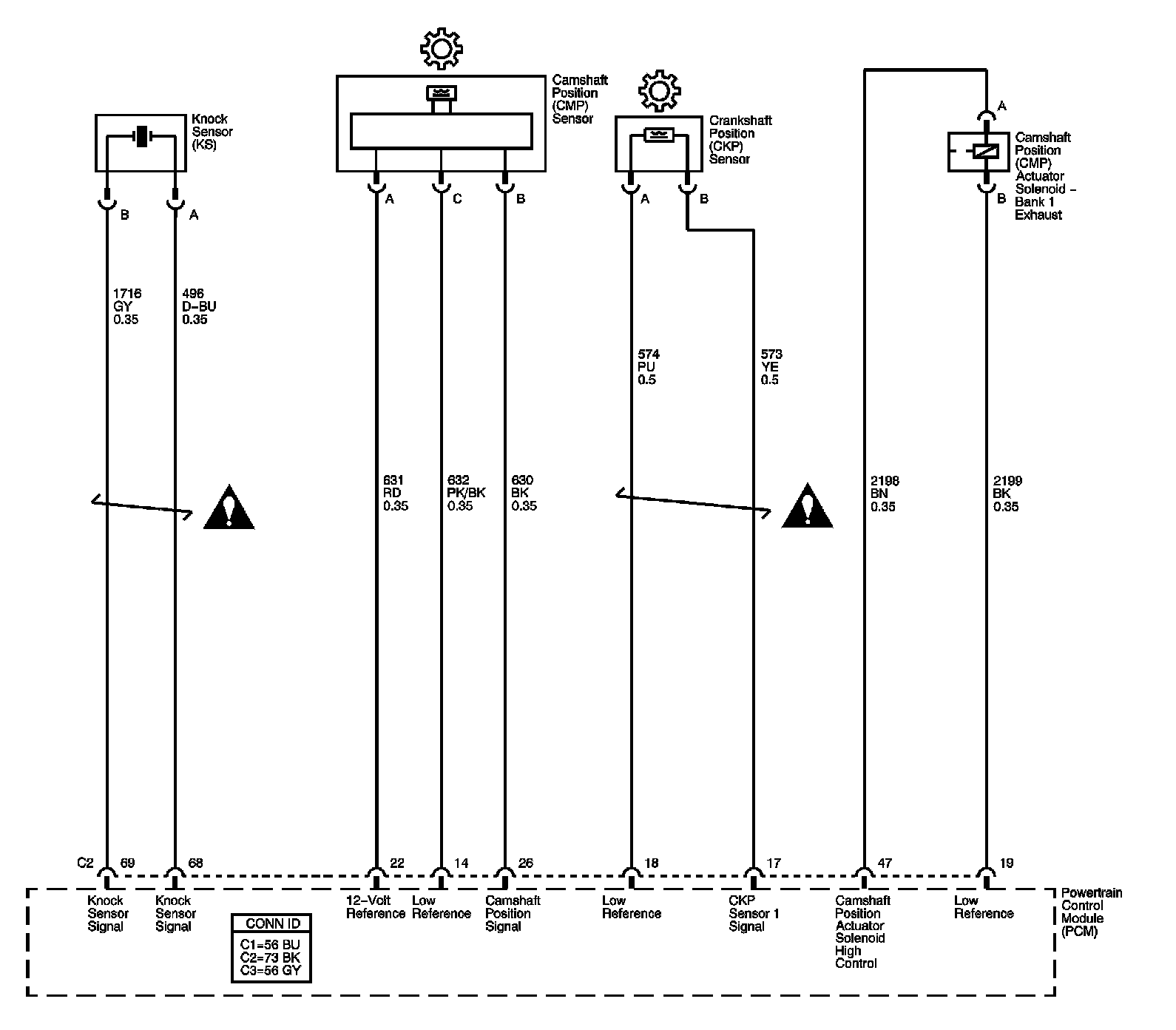

Engine Data Sensors - Injection Timing Controls







Ignition Controls - Ignition System







Fuel Controls - Fuel Pump Controls

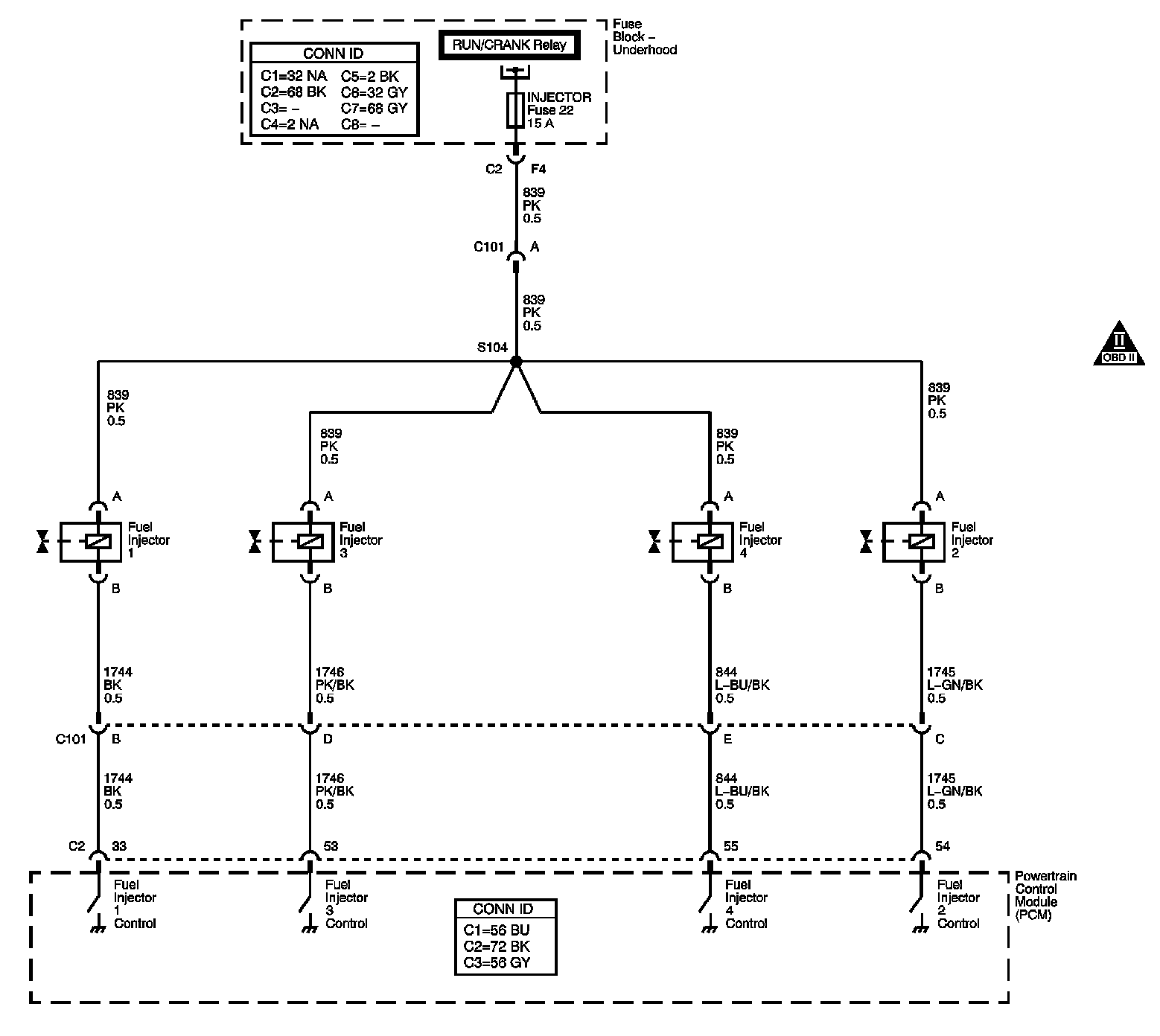

Fuel Controls - Fuel Injectors

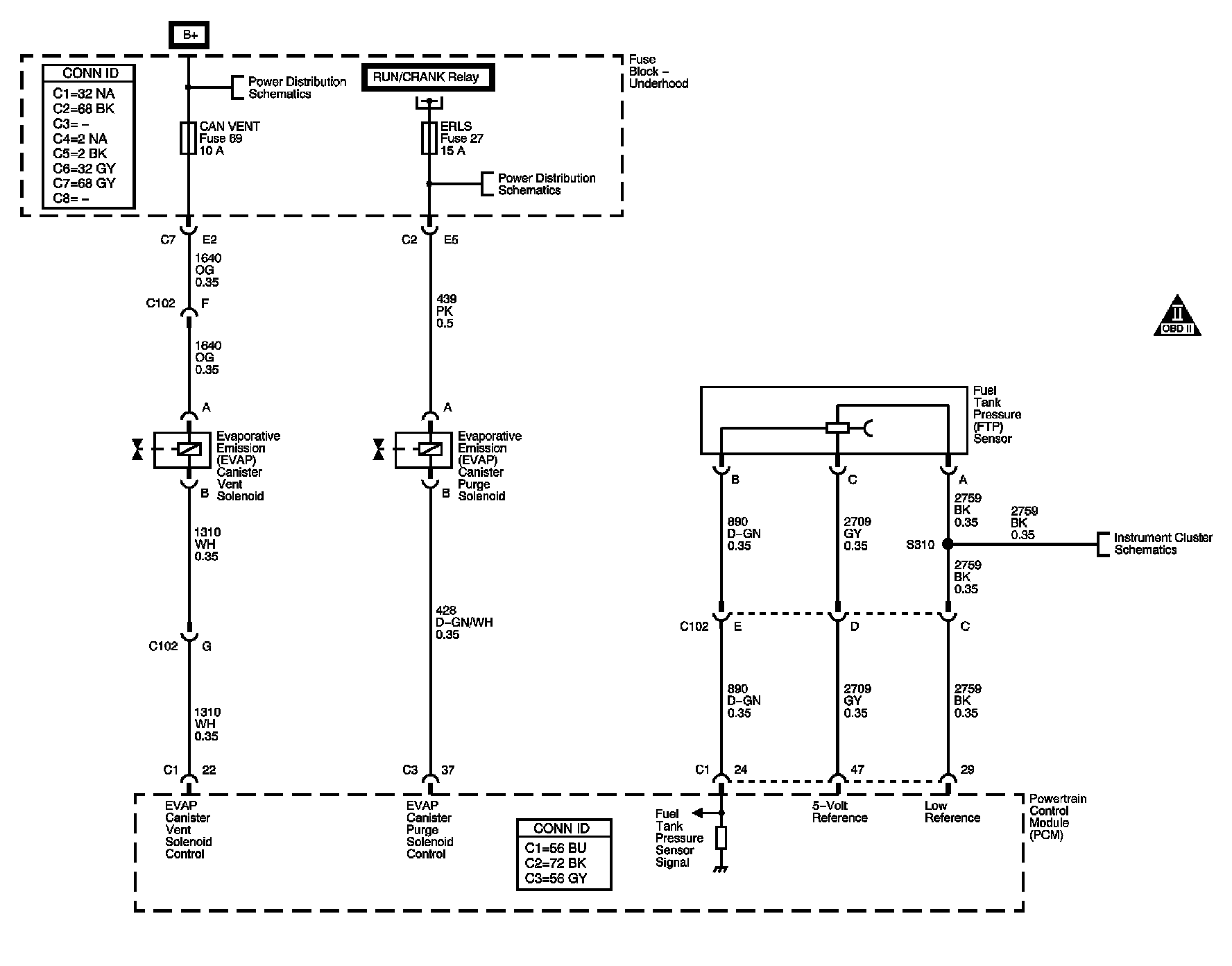

Fuel Controls - EVAP Controls

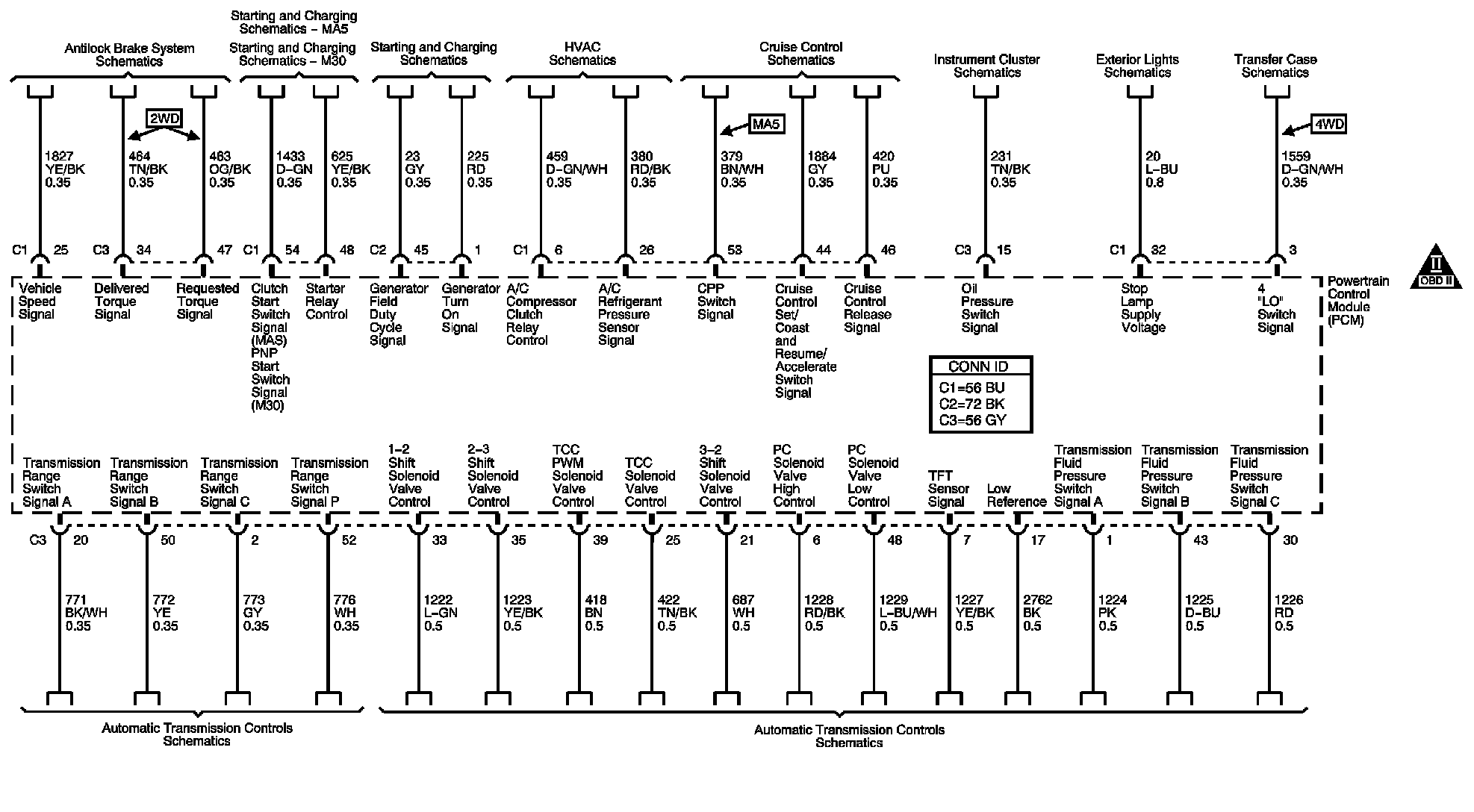

Controlled/Monitored Subsystem and Transmission References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
