Fluid Pan, A/T

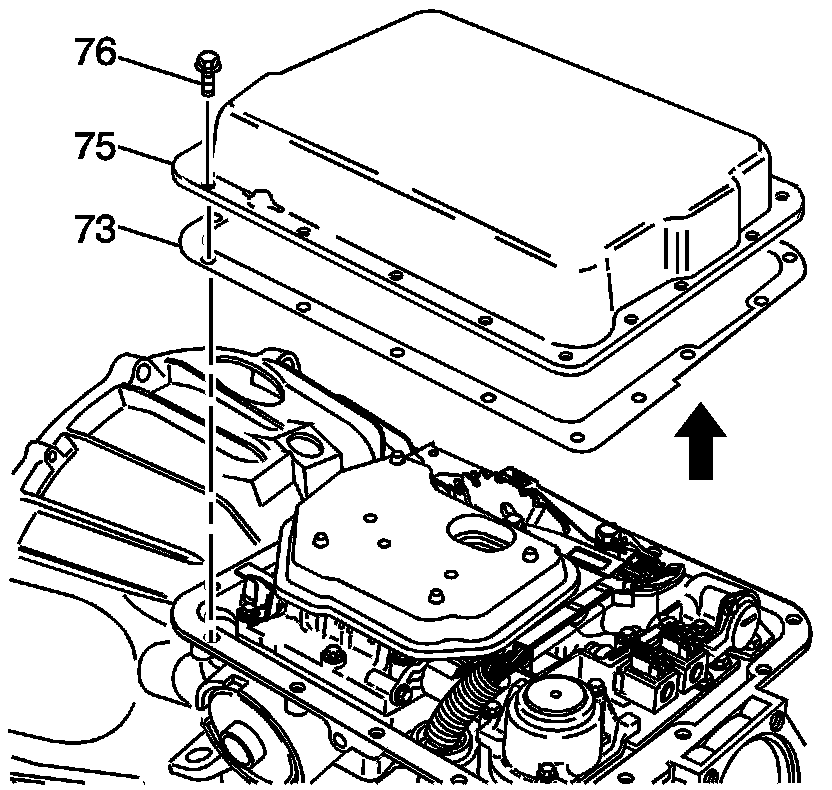

Transmission Fluid Pan





Install all of the transmission oil pan screws (76).
Tighten the oil pan to transmission case bolts alternately and evenly.
Tighten the screws to 16 N.m (11.8 lb ft).
