Rear Axle Disassembled Views

Rear Axle Disassembled Views

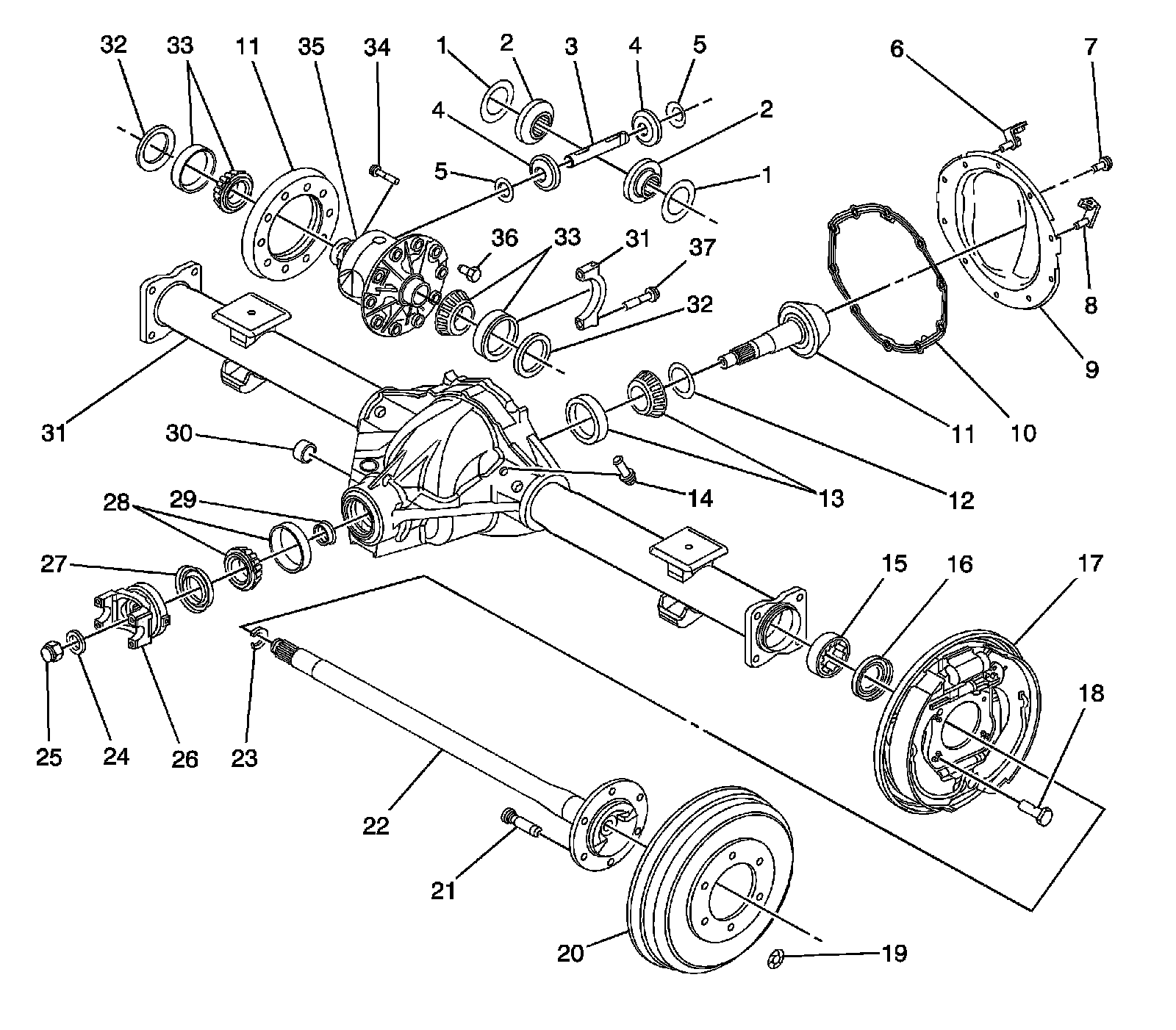

Rear Drive Axle Disassembled Views (Part 1 Of 2):

1 - Washer, Side Gear Thrust
2 - Gear, Side
3 - Cross Pin
4 - Gear, Differential Pinion
5 - Washer, Pinion Thrust
6 - Bracket Assembly, Support
7 - Bolt, Cover Pan
8 - Bracket Assembly, 3-Way
9 - Cover Pan
10 - Gasket, Cover Pan
11 - Ring and Pinion Set
12 - Shim, Pinion Bearing
13 - Bearing Assembly, Pinion Inner
14 - Vent Tube
15 - Bearing Assembly, Axle Shaft
16 - Seal Assembly, Axle Shaft
17 - Brake Assembly
18 - Bolt, Brake Attaching
19 - Push Nut
20 - Drum, Rear Brake
21 - Stud, Wheel
22 - Shaft, Axle
23 - C-Lock, Axle Shaft
24 - Washer, Pinion Flange
25 - Nut, Pinion Flange
26 - Flange Assembly, Pinion
27 - Seal Assembly, Pinion Flange
28 - Bearing Assembly, Pinion Tail
29 - Spacer, Pinion Bearing
30 - Plug, Fill
31 - Housing Assembly
32 - Shim, Differential Case Bearing
33 - Bearing Assembly, Differential Case
34 - Bolt, Differential Case Cross Pin
35 - Case, Differential
36 - Bolt, Ring Gear
37 - Bolt, Carrier Cap

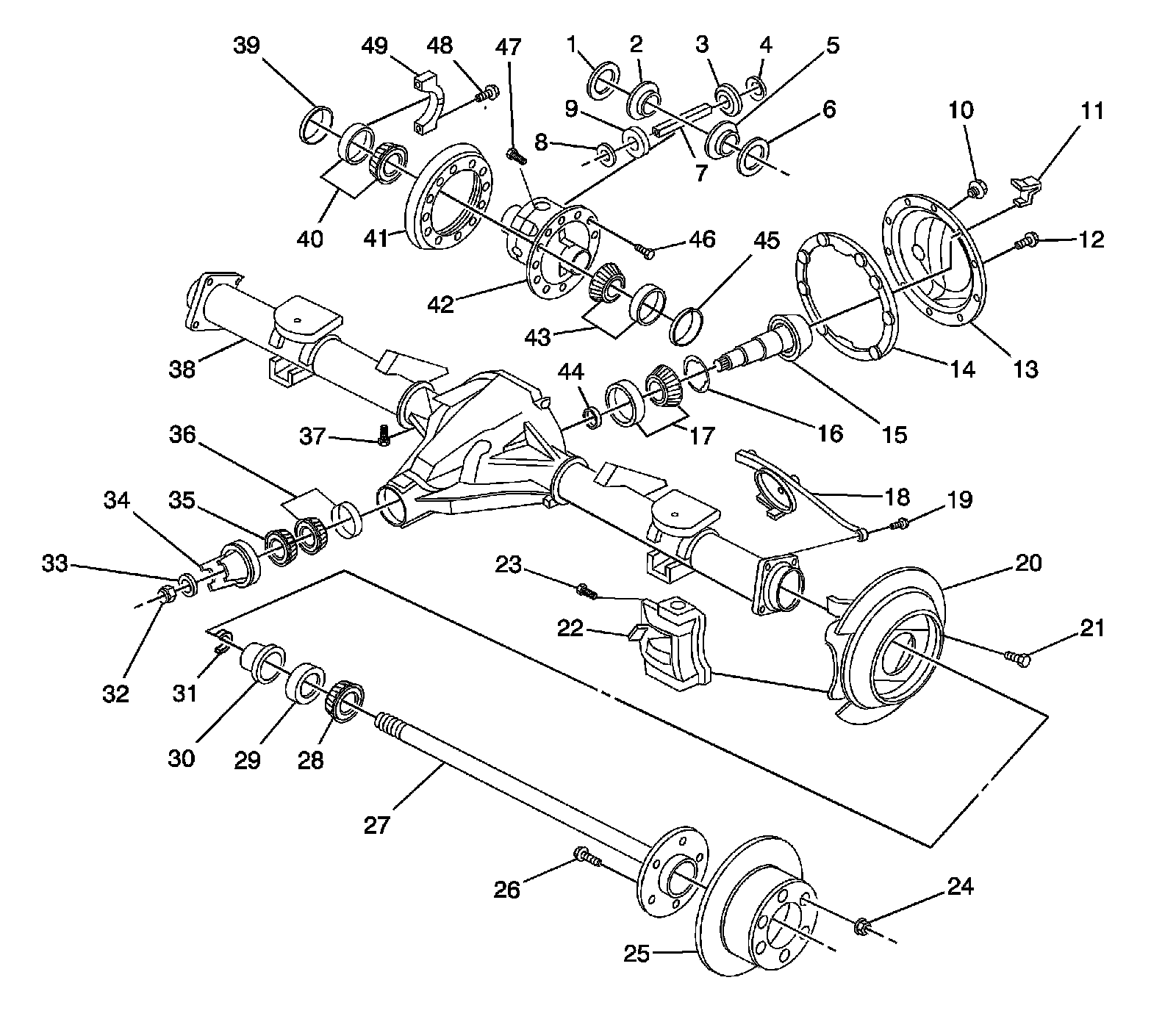

Rear Drive Axle Disassembled Views (Part 2 Of 2):

1 - Differential Side Gear Thrust Washer
2 - Differential Side Gear
3 - Differential Pinion Gear
4 - Differential Pinion Gear Thrust Washer
5 - Differential Side Gear
6 - Differential Side Gear Thrust Washer
7 - Differential Pinion Gear Shaft
8 - Differential Pinion Gear Thrust Washer
9 - Differential Pinion Gear
10 - Differential Carrier Fill Plug
11 - Brake Pipe Bracket
12 - Rear Axle Housing Cover Bolt/Screw
13 - Rear Axle Housing Cover
14 - Rear Axle Housing Cover Gasket
15 - Differential Ring and Drive Pinion Ratio 4.56 - G80 Gear Set
16 - Differential Drive Pinion Spacer
17 - Differential Drive Pinion Gear Inner Bearing Assembly
18 - Rear Wheel Speed Sensor Assembly
19 - Rear Wheel Speed Sensor Bolt/Screw
20 - Park Assembly Brake
21 - Park Brake Assembly Bolt/Screw
22 - Rear Brake Assembly Caliper
23 - Rear Brake Caliper Assembly Bolt/Screw
24 - Rear Brake Rotor Retainer
25 - Rear Brake Rotor
26 - Rear Wheel Stud
27 - Rear Axle Shaft
28 - Rear Axle Shaft Seal Assembly
29 - Rear Axle Shaft Bearing Assembly
30 - Wheel Speed Sensor Reluctor Ring
31 - Rear Axle Shaft Lock
32 - Differential Drive Pinion Gear Nut
33 - Differential Drive Pinion Gear Washer
34 - Differential Drive Pinion Gear Yoke
35 - Differential Drive Pinion Gear Seal
36 - Differential Drive Pinion Gear Outer Bearing Assembly
37 - Rear Axle Vent Hose Connector
38 - Rear Axle Housing Assembly
39 - Differential Spacer
40 - Differential Bearing Assembly
41 - Differential Ring and Gear Pinion 4.56 Ratio - G80 Gear Set
42 - Differential Case
43 - Differential Bearing Assembly
44 - Differential Drive Pinion Gear Bearing Spacer
45 - Differential Bearing Spacer
46 - Differential Ring Gear Bolt
47 - Differential Bolt
48 - Bearing Cap (Not Serviced Separately)
49 - Bearing Cap (Not Serviced Separately)
