Front Door Latch

Door Latch - Driver (With RPO Code AU3):

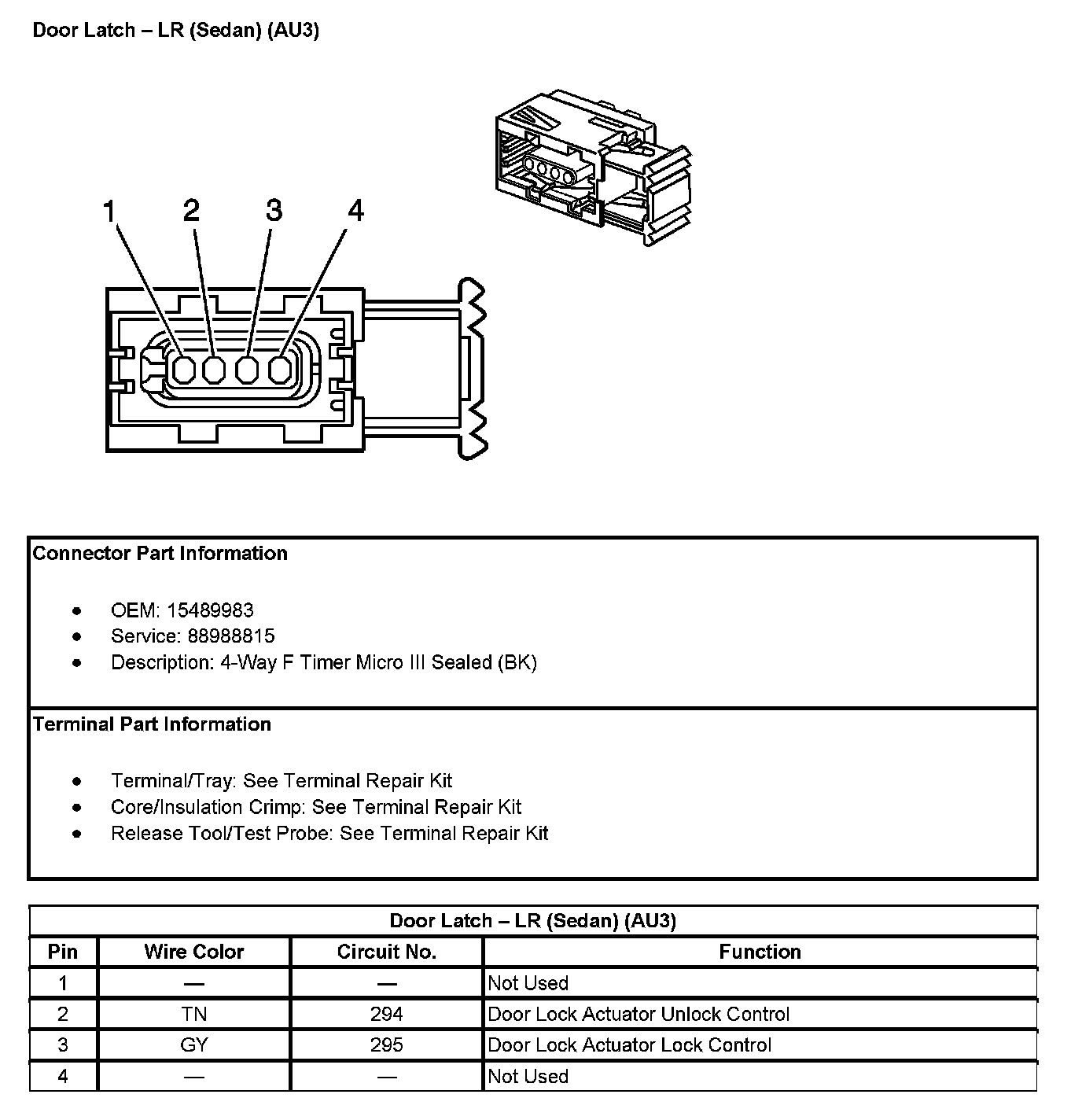

Door Latch - LR (Sedan) (With RPO Code AU3):



Door Latch - Passenger (With RPO Code AU3):



Door Latch - RR (Sedan) (With RPO Code AU3):
