Brake Fluid Level Sensor/Switch: Locations

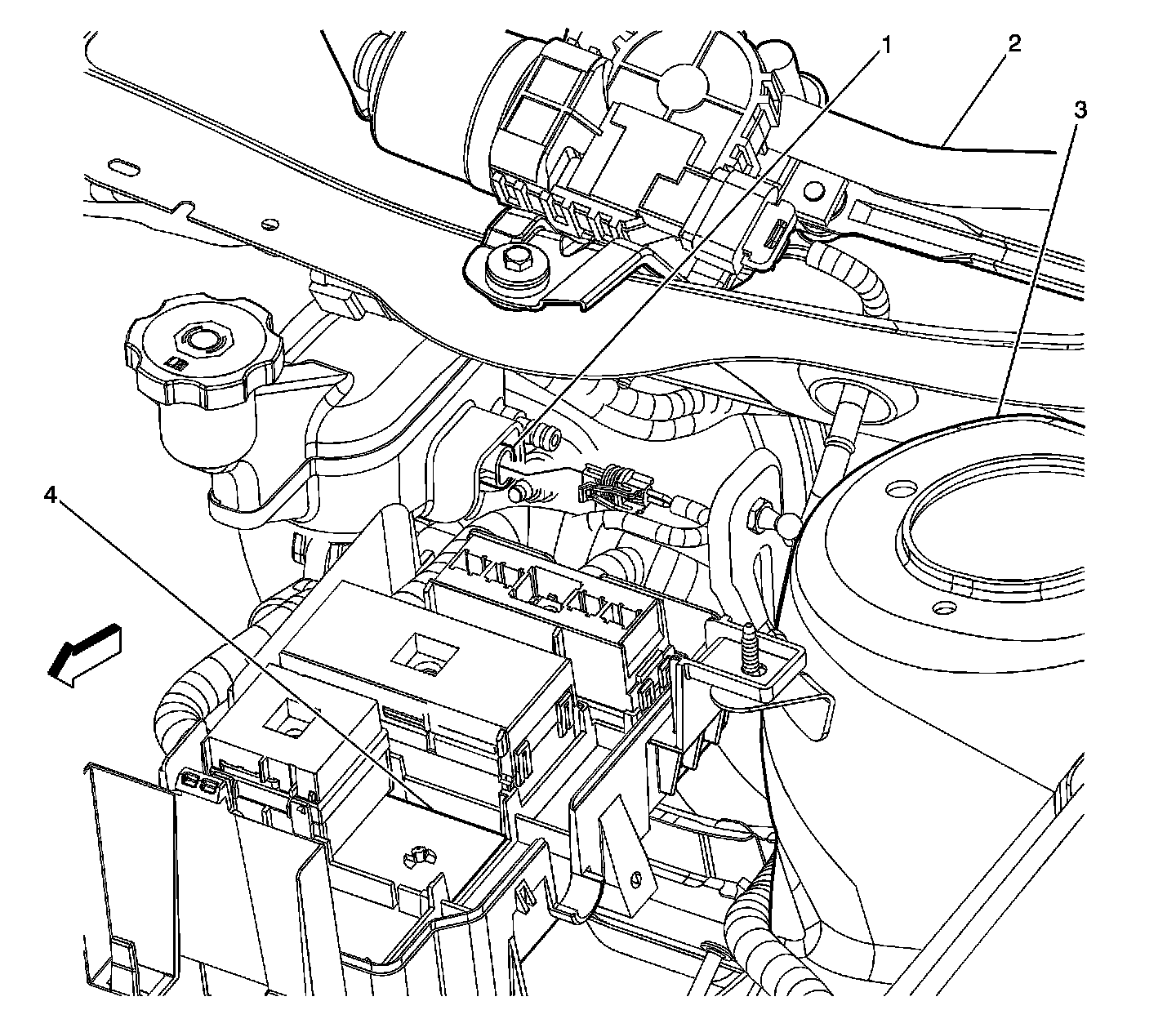

LR of the Engine Compartment

LR of the Engine Compartment:




1 - Brake Fluid Level Switch
2 - Windshield Wiper Motor
3 - LF Strut Tower
4 - Fuse Block - Underhood Connectors
