Seat Temperature Control Module: Diagrams

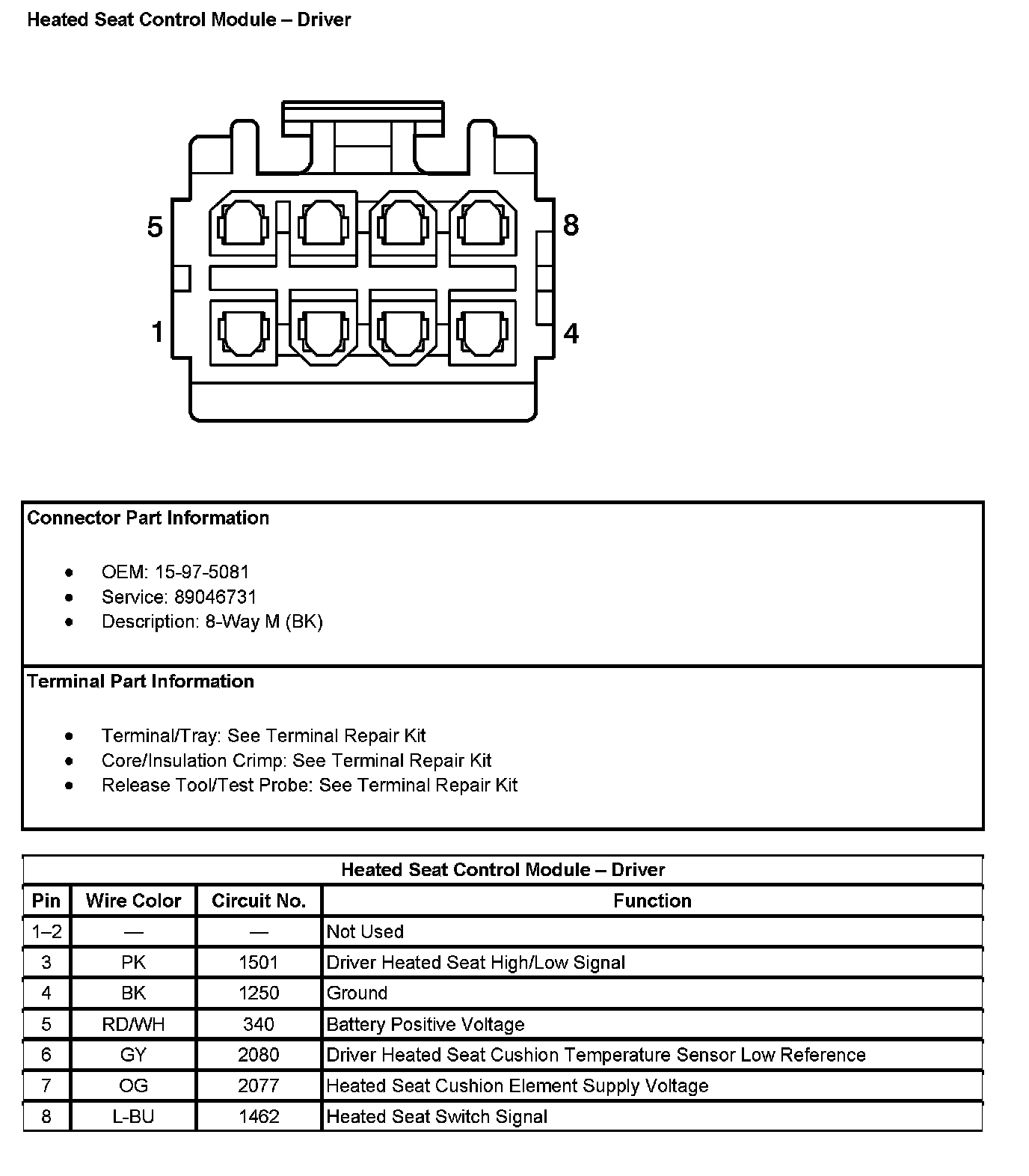

Heated Seat Control Module - Driver:

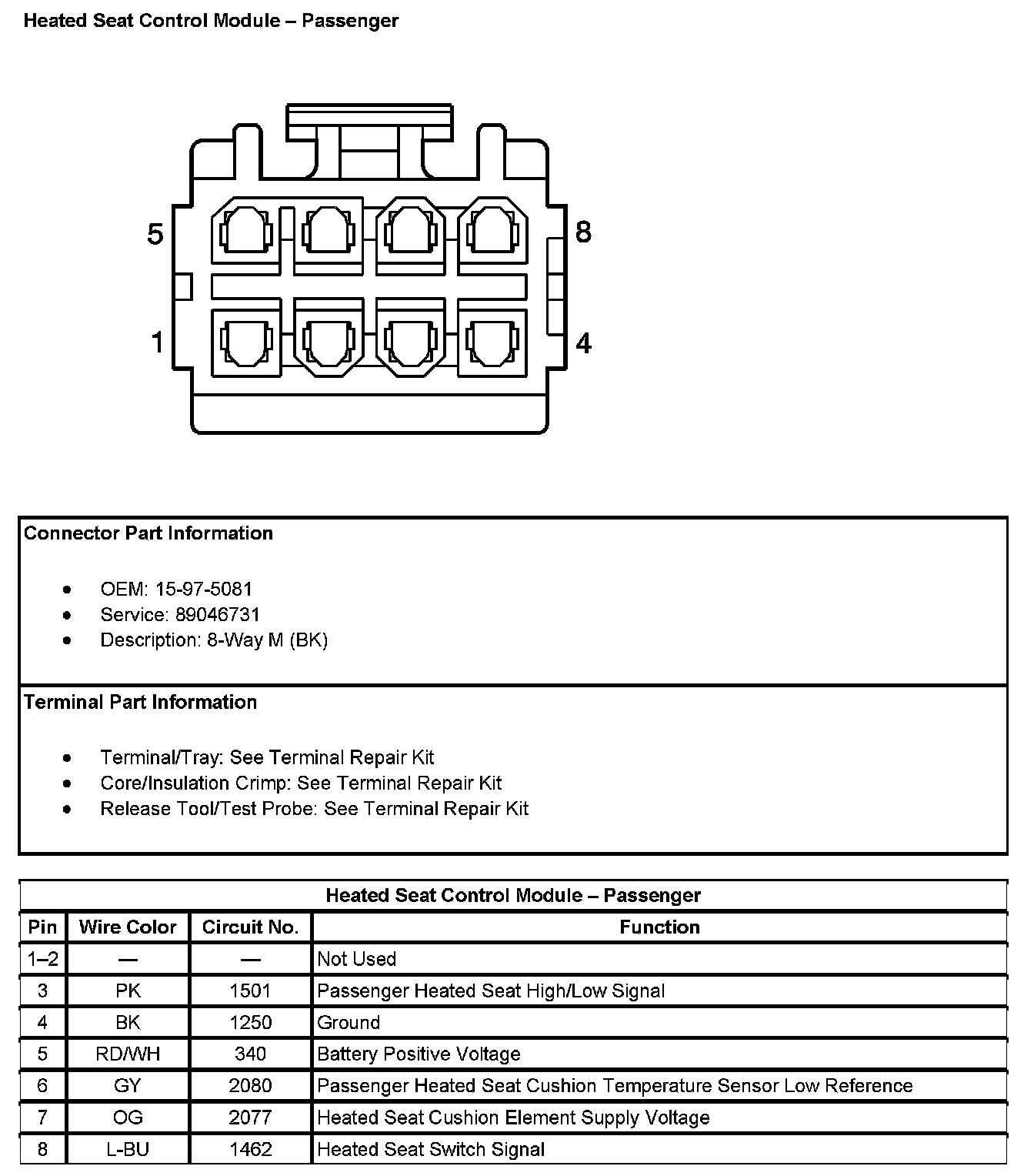

Heated Seat Control Module - Passenger:
