Chevy Express G2500, Van Cargo, 6.6 6
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Immobilizer System
>>
Schematic and Routing Diagrams
>>
Immobilizer Schematics
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Immobilizer Schematics

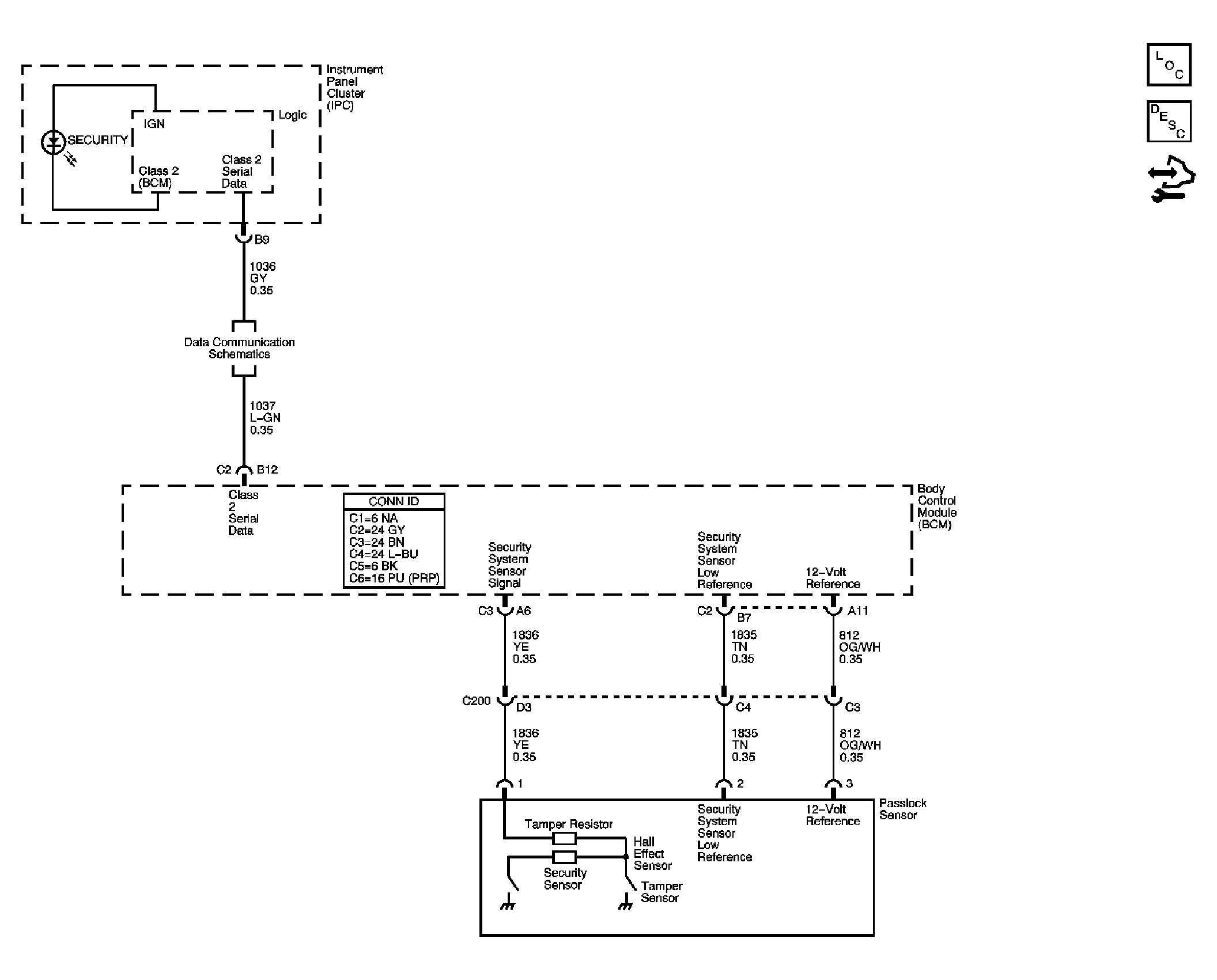

Fig 1: Immobilizer Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
