Window Systems Component Views (Notchback)



Window Systems Component Views (Notchback)

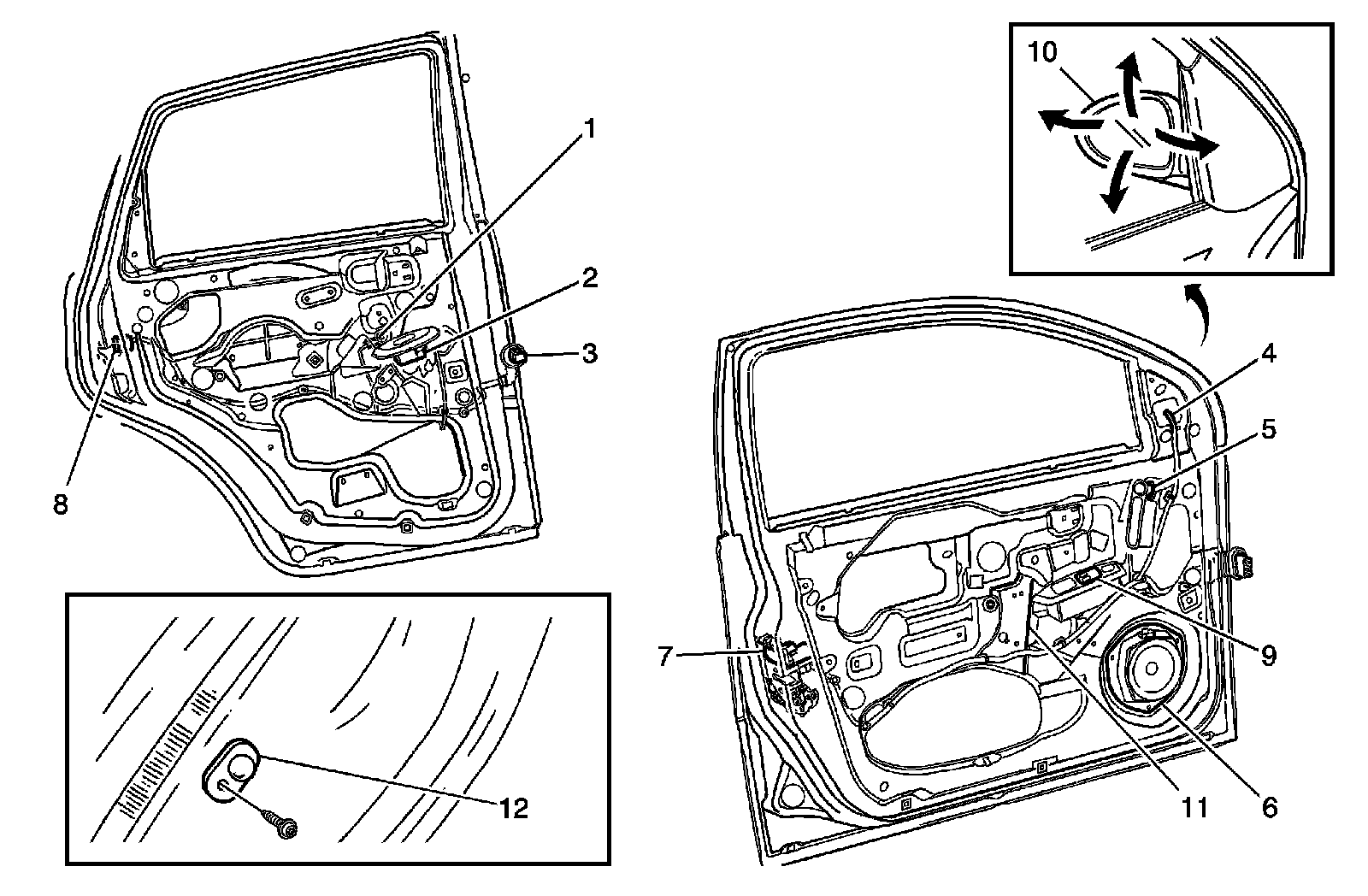

Door Components




1 - Window Motor - Rear (Left Side Shown, Right Side Similar)
2 - Window Switch - Rear (Left Side Shown, Right Side Similar)
3 - Connector C371
4 - Outside Rearview Mirror Connector
5 - Outside Rearview Mirror Switch
6 - Speaker - (Left Front Shown, Right Similar)
7 - Door Latch - Front (Left Side Shown, Right Side Similar)
8 - Door Latch - Rear (Left Side Shown, Right Side Similar)
9 - Window Switch - Front (Left Side Shown, Right Side Similar)
10 - Outside Rearview Mirror Motor (Left Side Shown, Right Side Similar)
11 - Window Motor Front (Left Side Shown, Right Side Similar)
12 - Door Jamb Switch (Left Rear Shown, Others Similar)

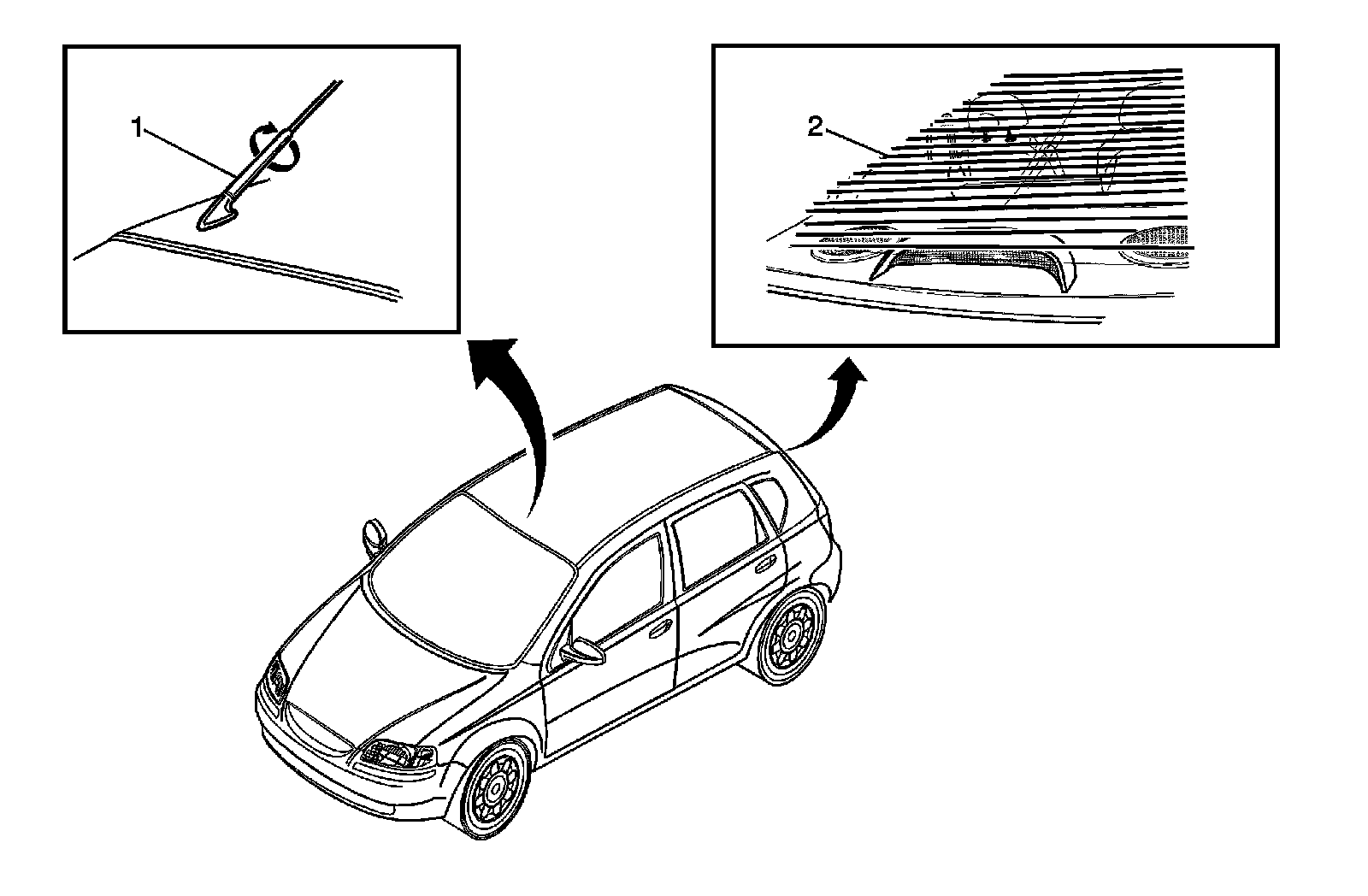

Rear Window and Roof Antenna




1 - Roof Antenna
2 - Rear Window Defogger

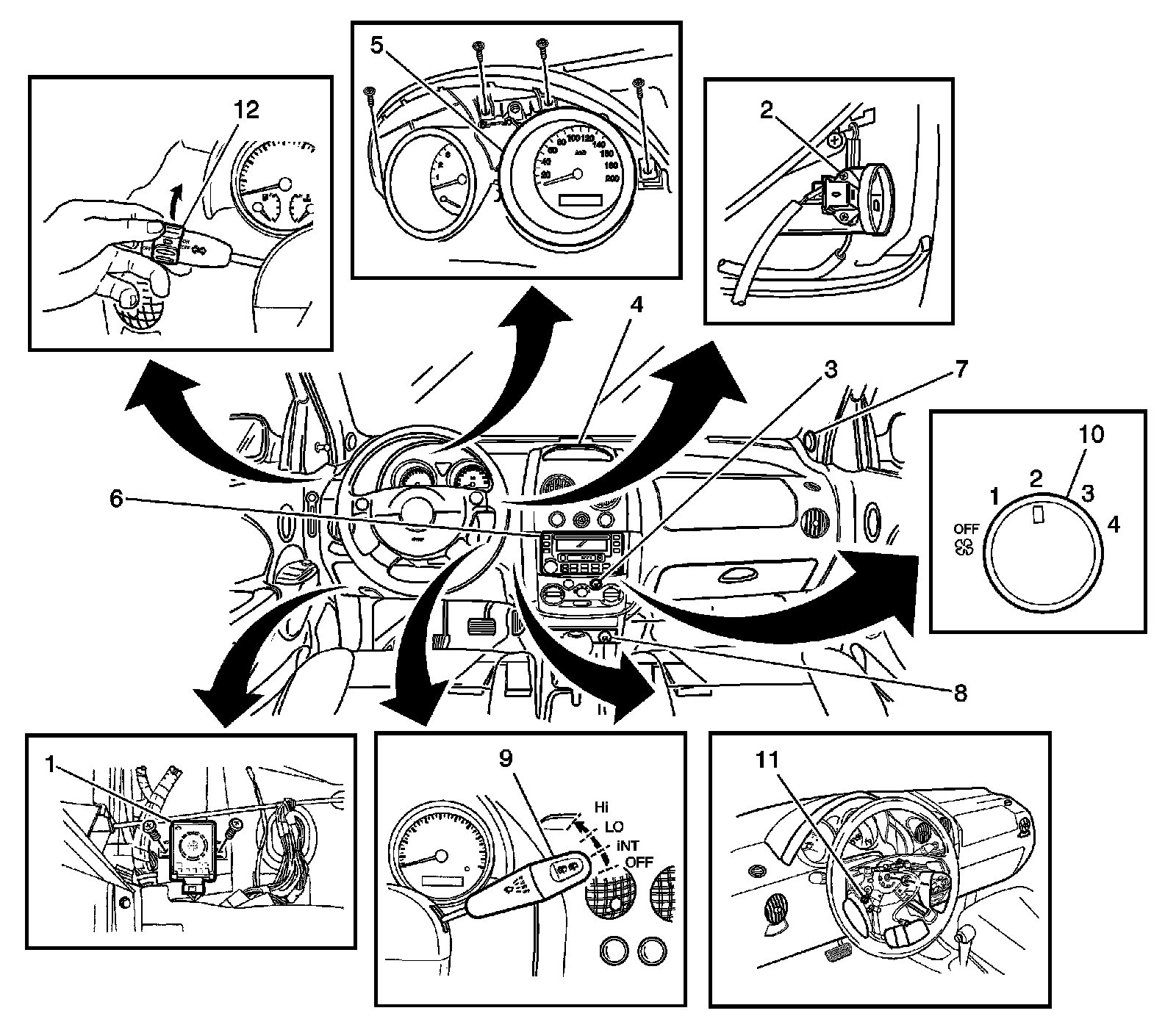

I/P Components




1 - Multifunction Alarm Module
2 - Ignition Key Alarm Switch
3 - Defogger Switch
4 - Clock/Tele Tail
5 - Cluster
6 - Radio
7 - Tweeter Right/Left Similar
8 - Cigar Lighter
9 - Wiper Switch
10 - Blower Switch
11 - Horn Switch
12 - Headlamp Switch
