Front Toe Adjustment

Front Toe Adjustment

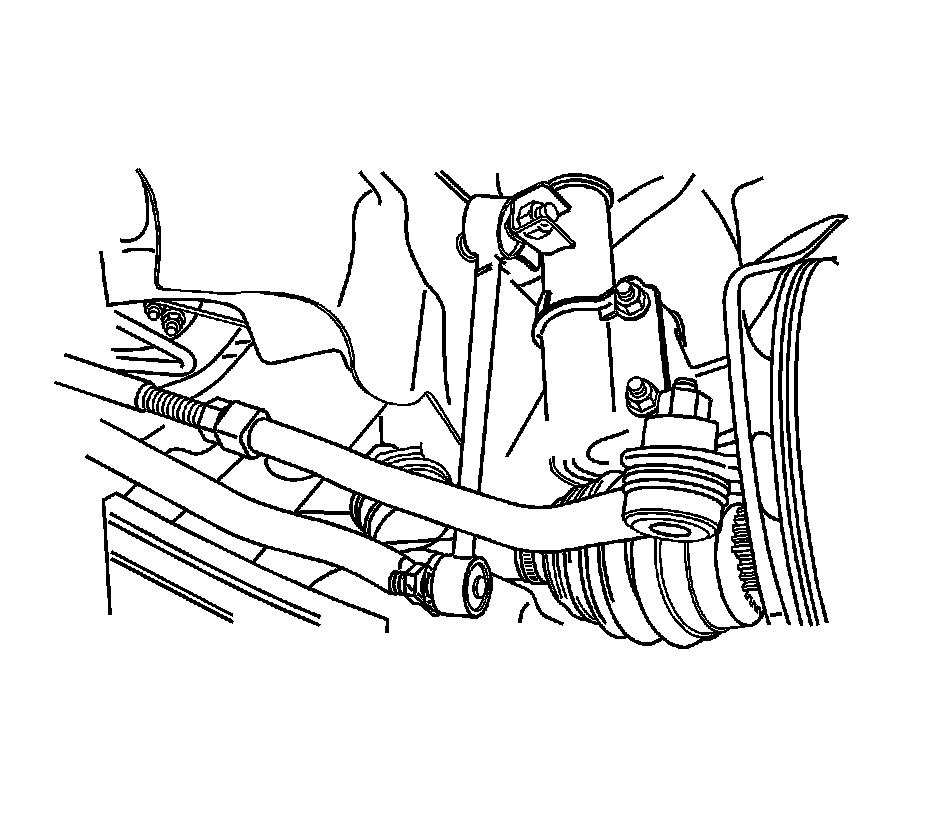

1. Loosen the right and the left rod lock bolts.

Important: In this adjustment, the right and left tie rods must be equal in length.

2. Turn the right and the left tie rod adjusters to align the toe to 0 degrees ± 10 minutes.
3. Tighten the tie rod lock bolts.

Tighten the tie rod lock bolts to 64 N.m (47 lb ft).
