Connector End Views (Notchback)



Connector End Views (Notchback)

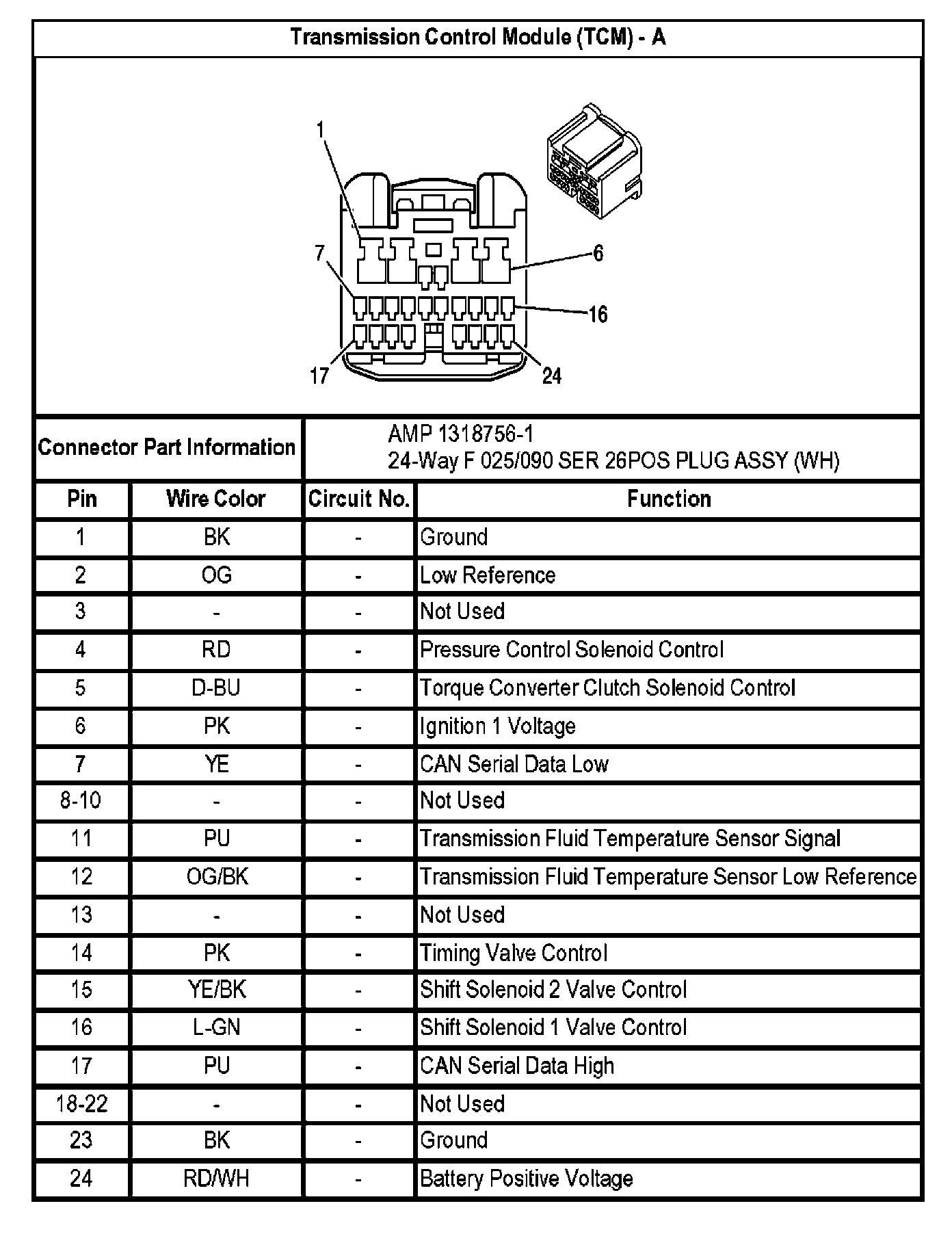

Transmission Control Module (TCM) - A:

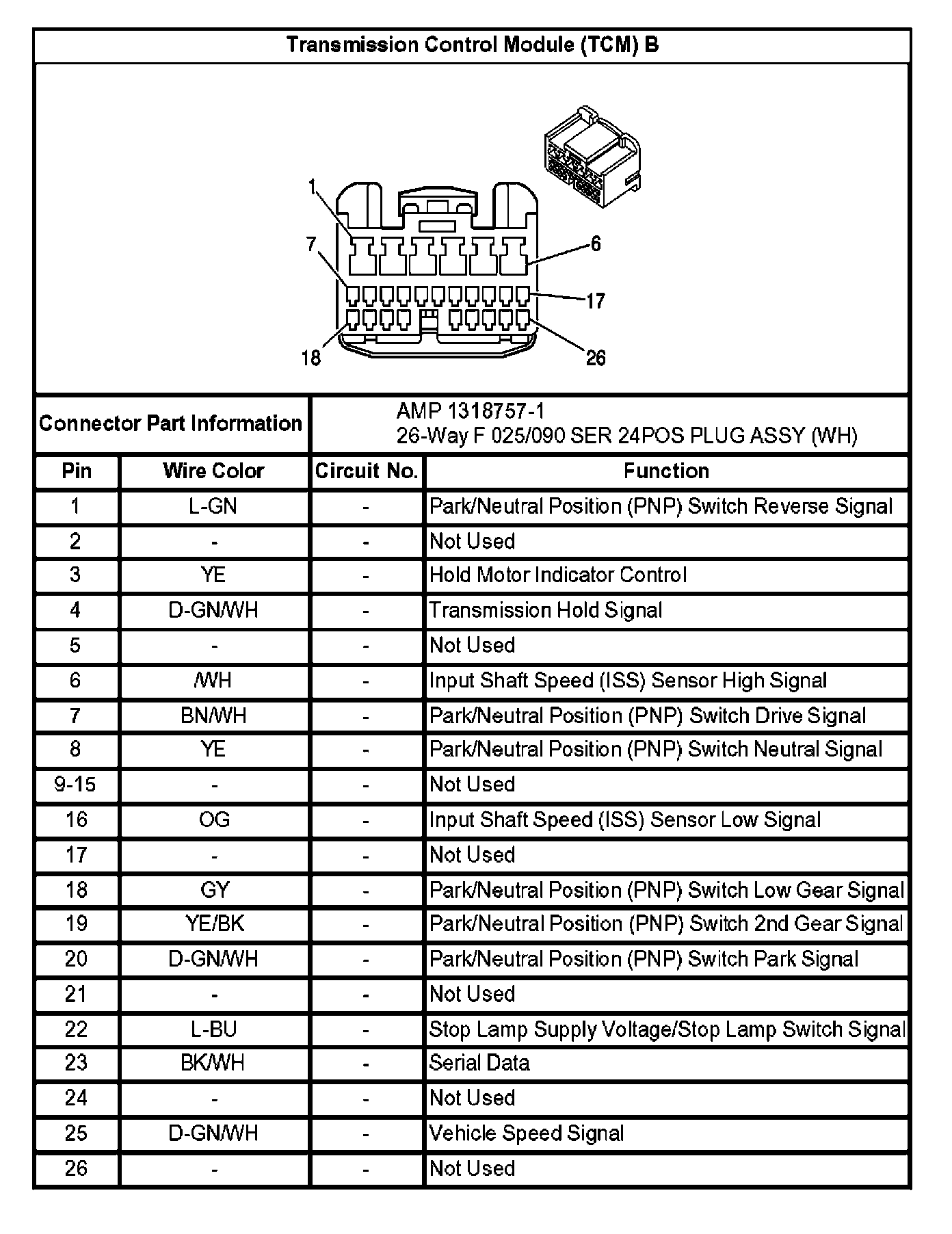

Transmission Control Module (TCM) B:
