Antilock Brake System Component Views (Notchback)



Antilock Brake System Component Views (Notchback)

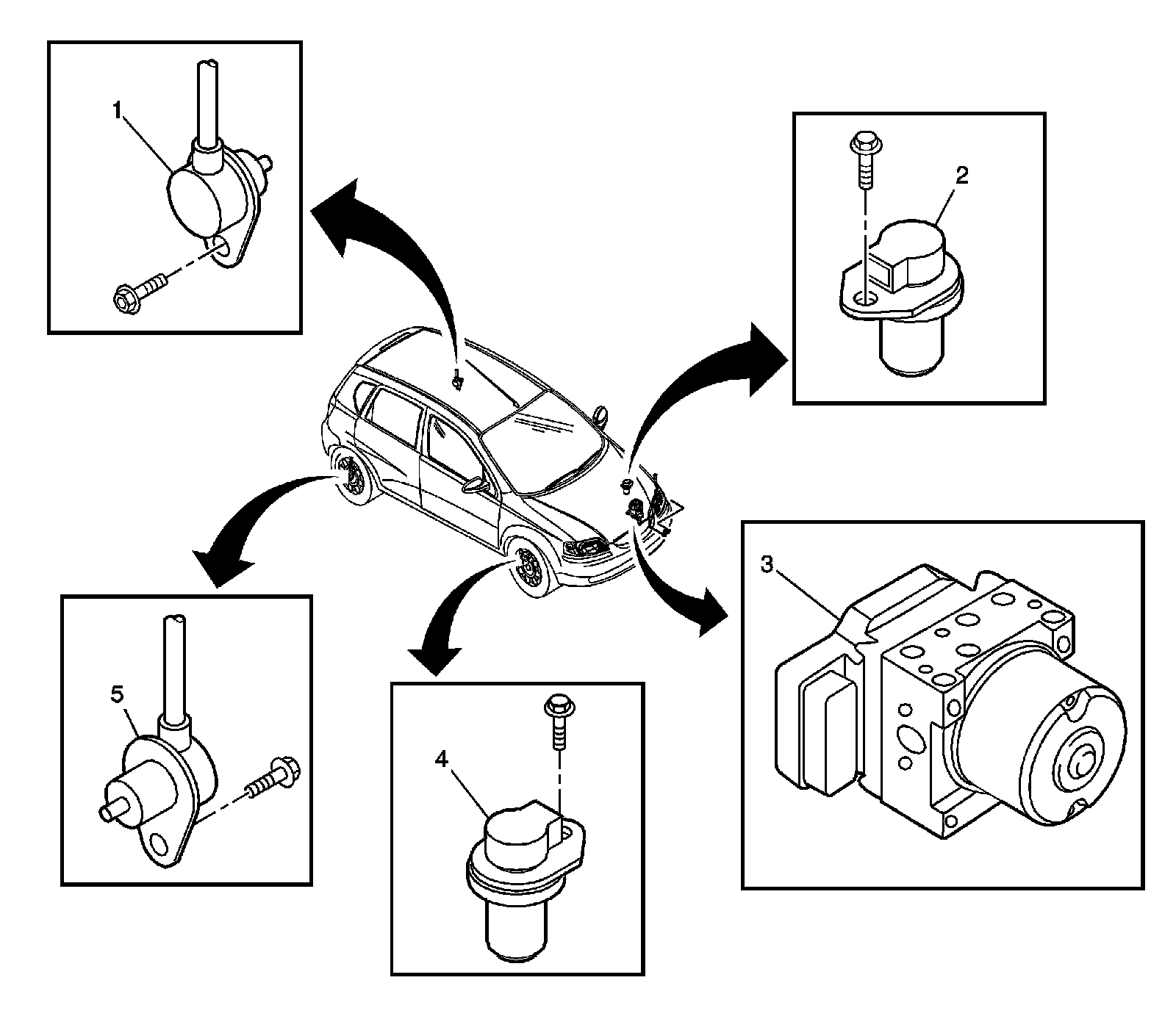

Antilock Brake System Component Views:




1 - Rear Wheel Speed Sensor - Left
2 - Front Wheel Speed Sensor - Left
3 - Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve (BPMV)
4 - Front Wheel Speed Sensor - Right
5 - Rear Wheel Speed Sensor - Right
