Seat Belt Retractor Replacement - Right Front

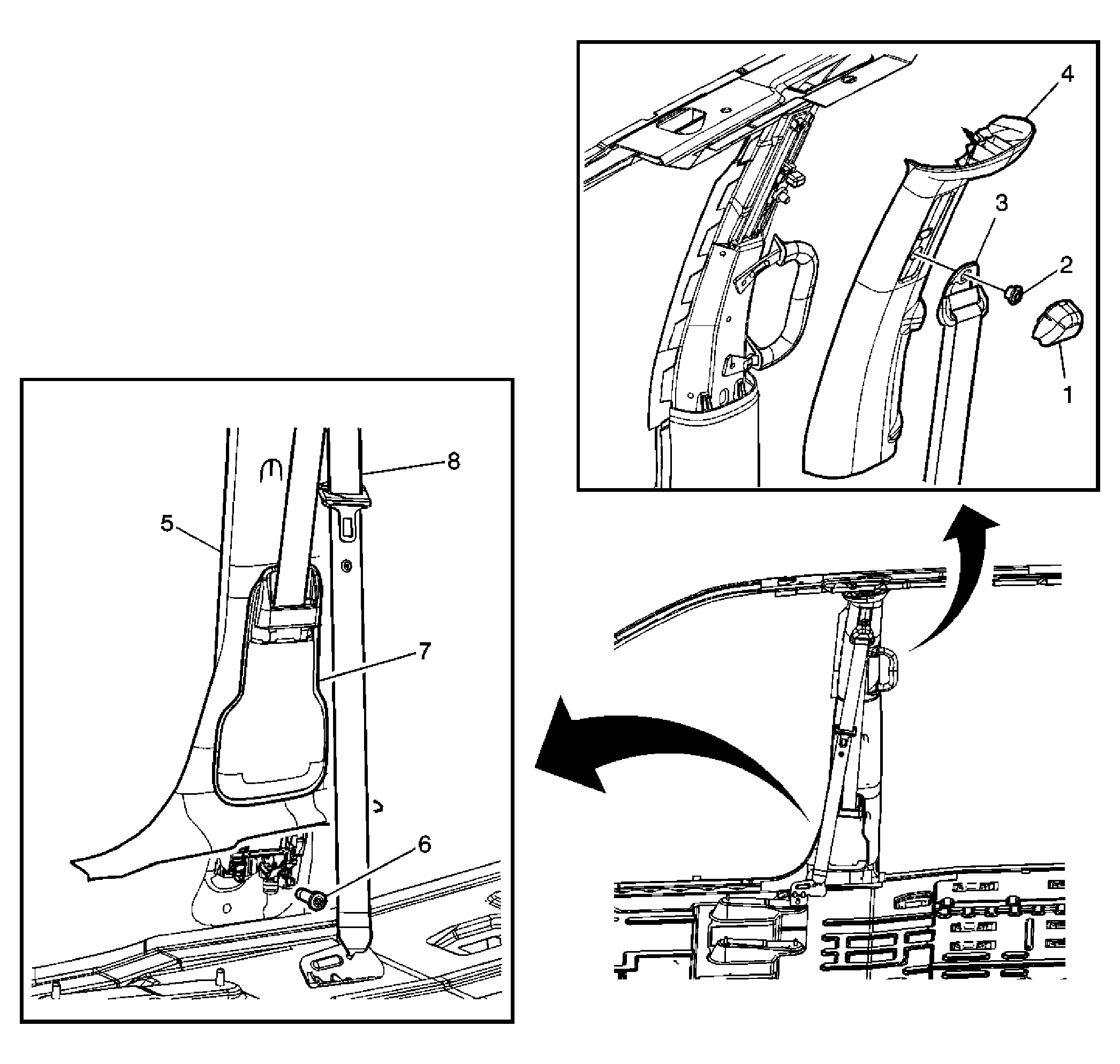

Fig 1: Identifying Right Front Seat Belt Retractor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedures Remove the front bucket seat. Refer to Seat Replacement - Front Bucket .
1	Cover, Shoulder Belt Guide Trim
2	Nut, Shoulder Belt Guide Tighten: 29 N.m (31 lb ft)
3	Guide, Shoulder Belt
4	Panel, Center Pillar Upper Trim Refer to Trim Panel Replacement - Upper Center Pillar .
5	Panel, Center Pillar Lower Trim Refer to Trim Panel Replacement - Lower Center Pillar . Tip: Lift the trim panel up enough to access the seat belt retractor bolt.
6	Bolt, Passenger Seat Belt Retractor Tighten: 43 N.m (32 lb ft)
7	Bezel, Shoulder Belt Retractor
8	Belt Assembly, Passenger Seat Tip: Remove the seat belt anchor from the seat stud. Disconnect the electrical connector for the seat belt tension sensor located under the carpet. Remove the seat belt and lower trim panel as an assembly. Slide the bezel up and remove the belt from the lower trim panel.
